GE Venue Go - Cart bin Replacement Procedure

D
IRECTION 5813707-100, REVISION 2 VENUE™ SERVICE MANUAL
8-36 Chapter 8 - Replacement Procedures
PRELIMINARY
8-2-13 Cart Bin Replacement Procedure
8-2-13-1 Tools
None
8-2-13-2 Time Required
5 min
8-2-13-3 Preparations
1.) Shut down the Venue Go™ ultrasound unit, as described in Power Shutdown .
2.) Prepare stable flat surface covered with a soft material (such as foam) to prevent scratches to the
display.
3.) Dismount Venue Go™ system from cart and place it on a previously prepared surface with the
display facing down.
8-2-13-4 Cart Bin Removal Procedure
1) Press the bin stopper and slide the bin upwards.
8-2-13-5 Cart Bin Installation Procedure
1.) Slide down the bin until it locks in its place.
FRU Part #
Refer to Table 9-16 on page 9-17.

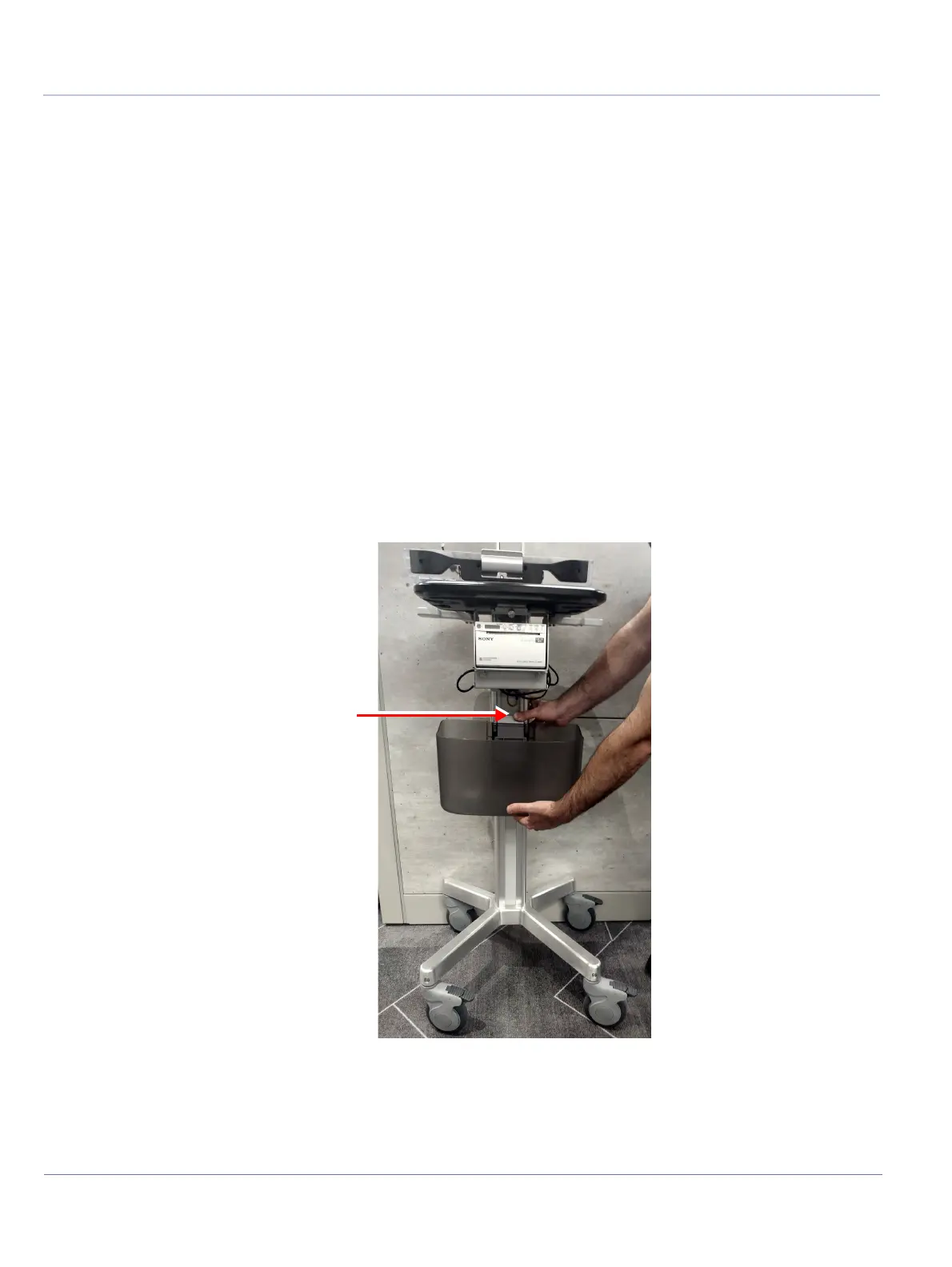

Figure 8-114 Removing Cart Bin
Bin stopper
