D
IRECTION 5813707-100, REVISION 2 VENUE™ SERVICE MANUAL
8-8 Chapter 8 - Replacement Procedures
PRELIMINARY
8-2-4 C-PSB Replacement Procedure
8-2-4-1 Tools
Phillips screwdrivers of appropriate size
8-2-4-2 Time Required
5 min
8-2-4-3 Preparations
1.) Shut down the Venue Go™ ultrasound unit, as described in Power Shutdown.
2.) Prepare stable flat surface covered with a soft material (such as foam or thick cloth) to prevent
scratches to the display.
3.) Dismount Venue Go™ system from cart as described in Mounting / Dismounting System on Cart
and place it on a previously prepared surface with the display facing down.
8-2-4-4 C-PSB Removal Procedure
1) Remove back cover.
2) Set the lower lever upwards to expose the screw, and remove four screws that hold the board.
Refer to Table 9-16 on page 9-17.
• Back Cover Removal Procedure

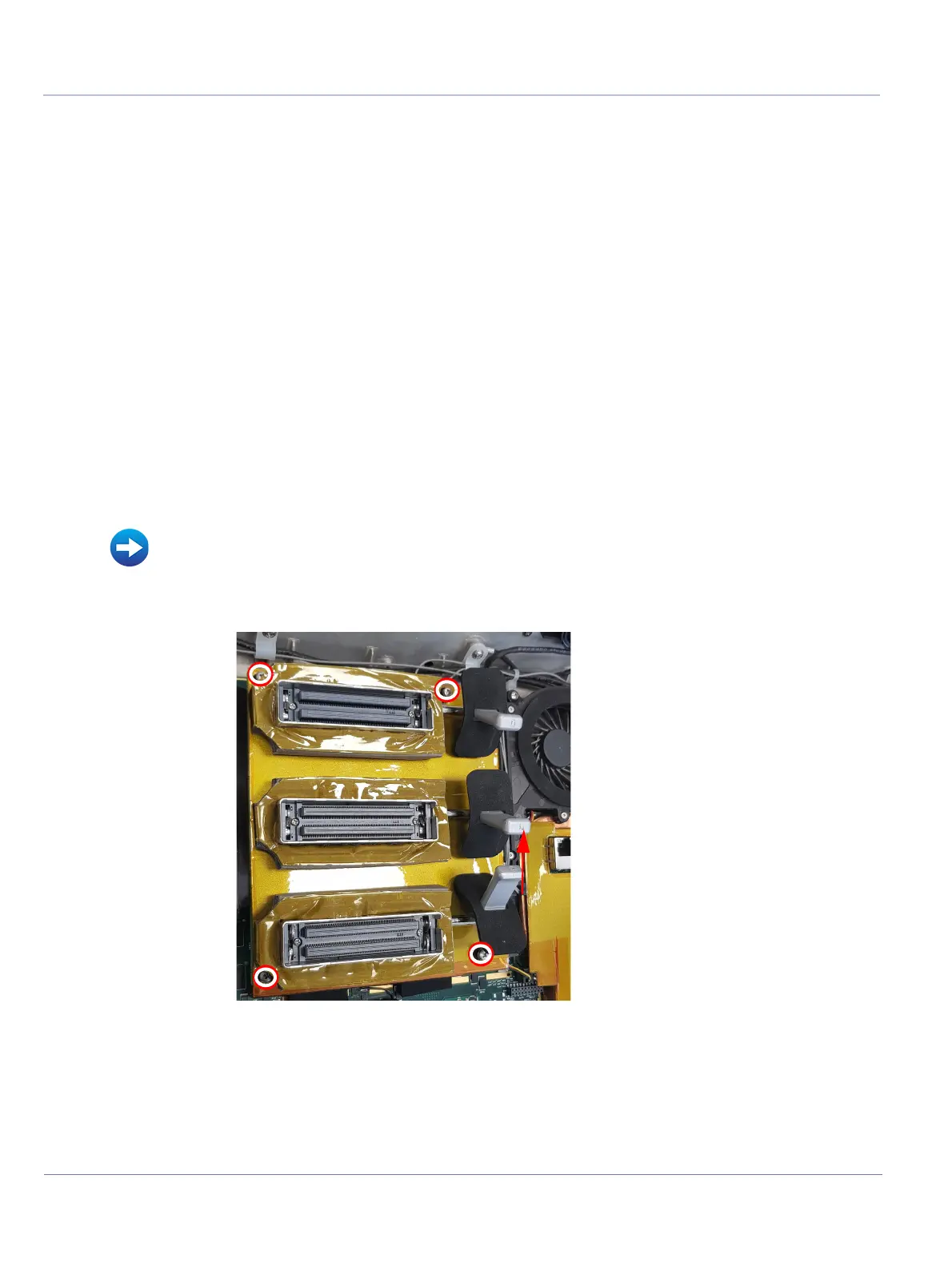

Figure 8-78 Removing Four PSB Screws
To Next Page
