8-2-17 Casters Replacement Procedure.
8-2-17-1 Tools
Allen key 6 mm
Phillips screwdriver of appropriate size
8-2-17-2 Time Required
5 min
8-2-17-3 Preparations
1.) Shut down the Venue Go™ ultrasound unit, as described in Power Shutdown .
2.) Prepare stable flat surface covered with a soft material (such as foam) to prevent scratches to the
display.
3.) Dismount Venue Go™ system from cart and place it on a previously prepared surface with the
display facing down.
4.) Lower the cart tray to its lowest position.
8-2-17-4 Casters Removal Procedure
5.) Using a flat screw driver, carefully remove the screw cap.
6.) Using Allen key 6mm, remove the holding screw and detach the caster.
8-2-17-5 Casters Installation Procedure
1.) Install new caster and secure the holding screw.
2.) Place screw cap back into its place.
3.) Mount Venue Go™ system on cart.
FRU Part #
Refer to Table 9-16 on page 9-17.

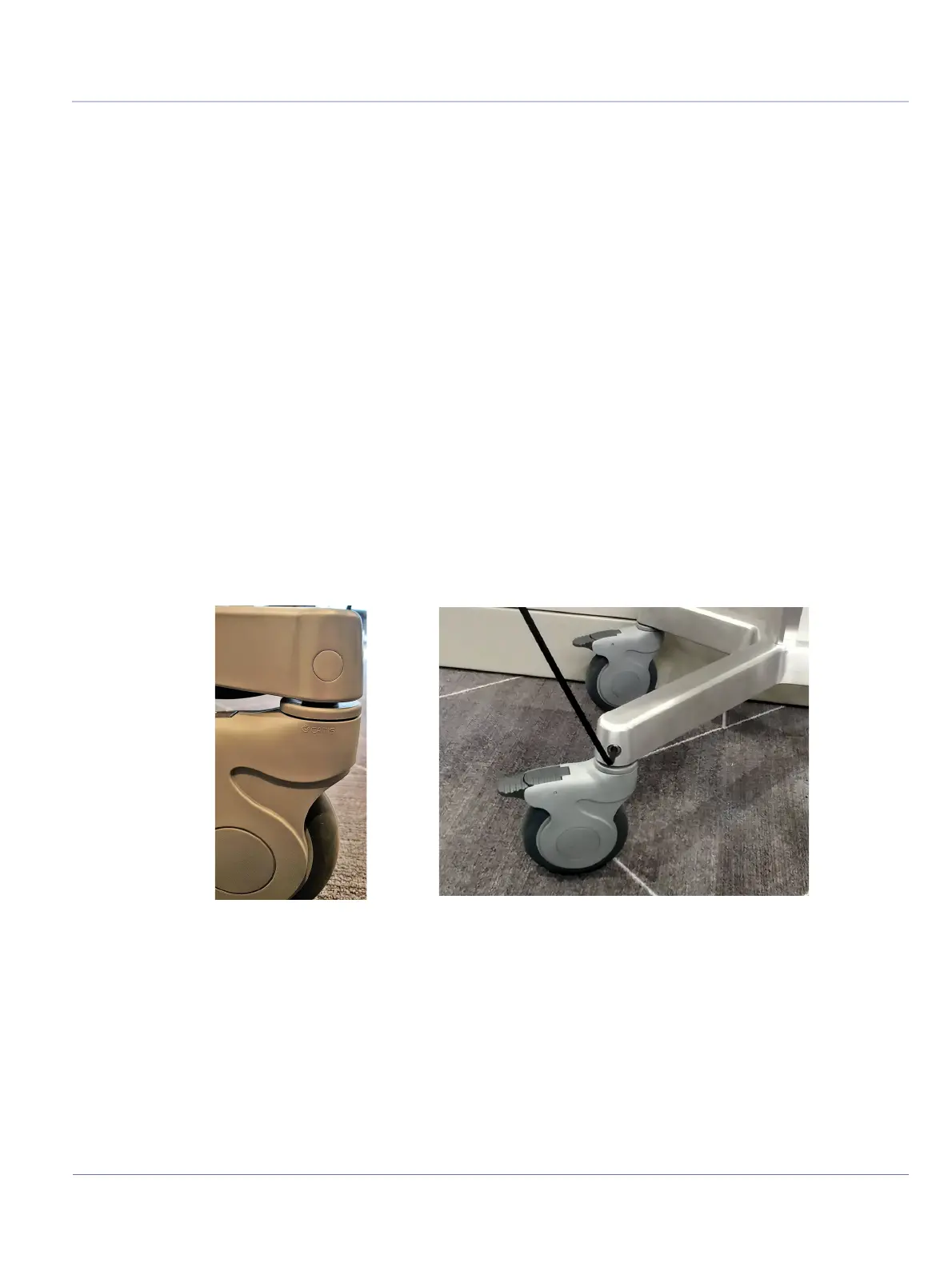

Figure 8-125 Removing Cater Cap and Holding Screw
