GE Venue Go - AC;DC PSU and Split Cable Replacement Procedure

D
IRECTION 5813707-100, REVISION 2 VENUE™ SERVICE MANUAL
8-60 Chapter 8 - Replacement Procedures
PRELIMINARY
8-2-25 AC/DC PSU and Split Cable Replacement Procedure
8-2-25-1 Tools
Phillips screwdriver of appropriate size
Flat head screwdriver
8-2-25-2 Time Required
5 min
8-2-25-3 Preparations
1.) Shut down the Venue Go™ ultrasound unit, as described in Power Shutdown .
2.) Prepare stable flat surface covered with a soft material (such as foam) to prevent scratches to the
display.
3.) Dismount Venue Go™ system from cart and place it on a previously prepared surface with the
display facing down.
8-2-25-4
PSU and Split Cable Removal Procedure
4.) Release 2 screws holding the PSU plastic cover, and remove the cover. Use a flat head screw
driver if required.
FRU Part #
Refer to Table 9-16 on page 9-17.

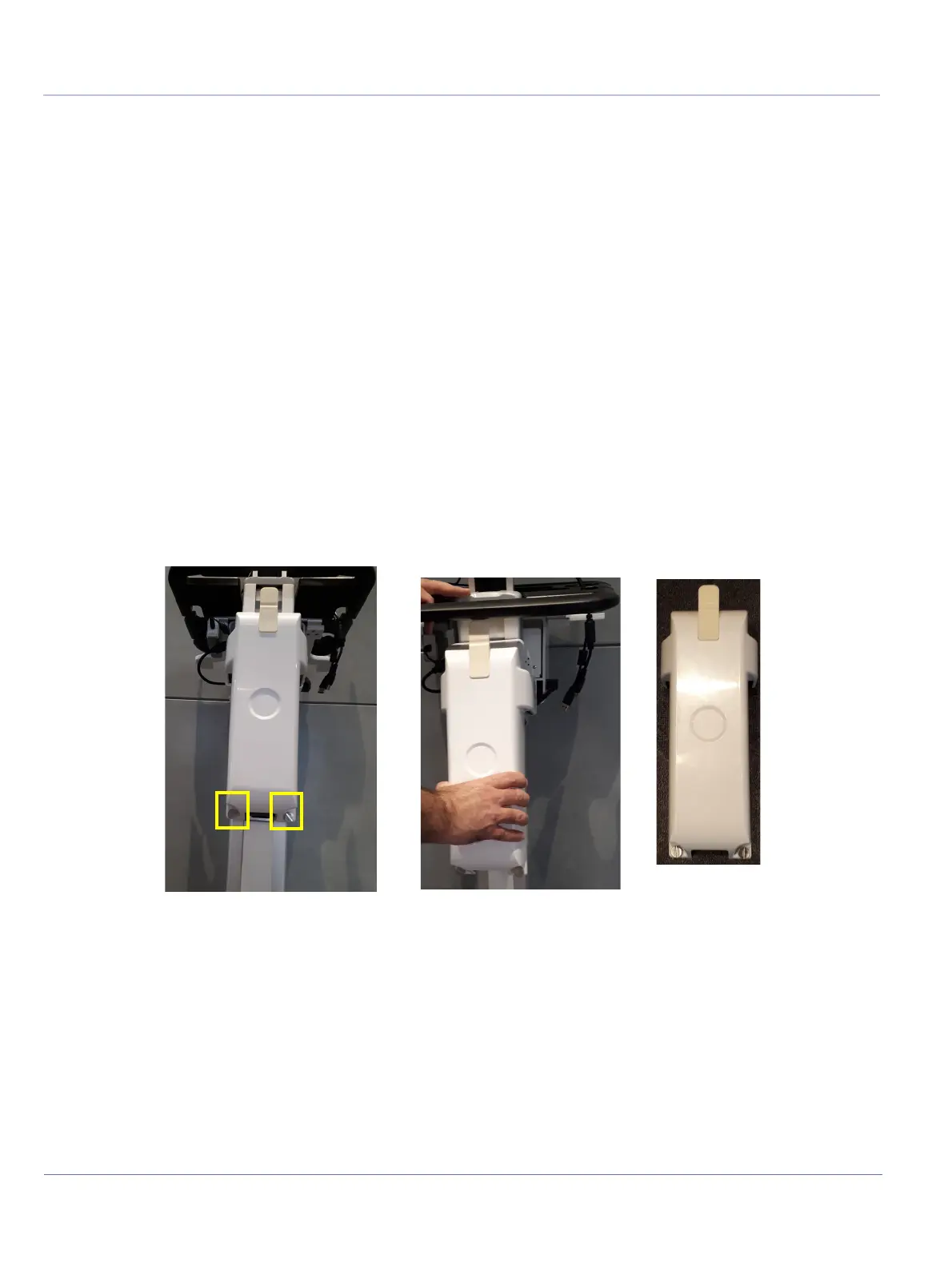

Figure 8-143 Remove Power Supply Plastic Cover
