D
IRECTION 5813707-100, REVISION 2 VENUE™ SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-63
PRELIMINARY
8.) Open 2 screws holding the split cable and release the ground cable
8-2-25-5
PSU and Split Cable Installation Procedure
1) Route the power cable through the pole.
2) Connect the split cable to its position using 2 screws, and connect the ground cable.
3) Position the PSU and secure by scotch straps.
4.) Reconnect the PSU cable underneath the PSU.
5.) Route the power cable, and secure it with the p-clip.
6.) Re-position the PSU plastic cover and secure the screws.

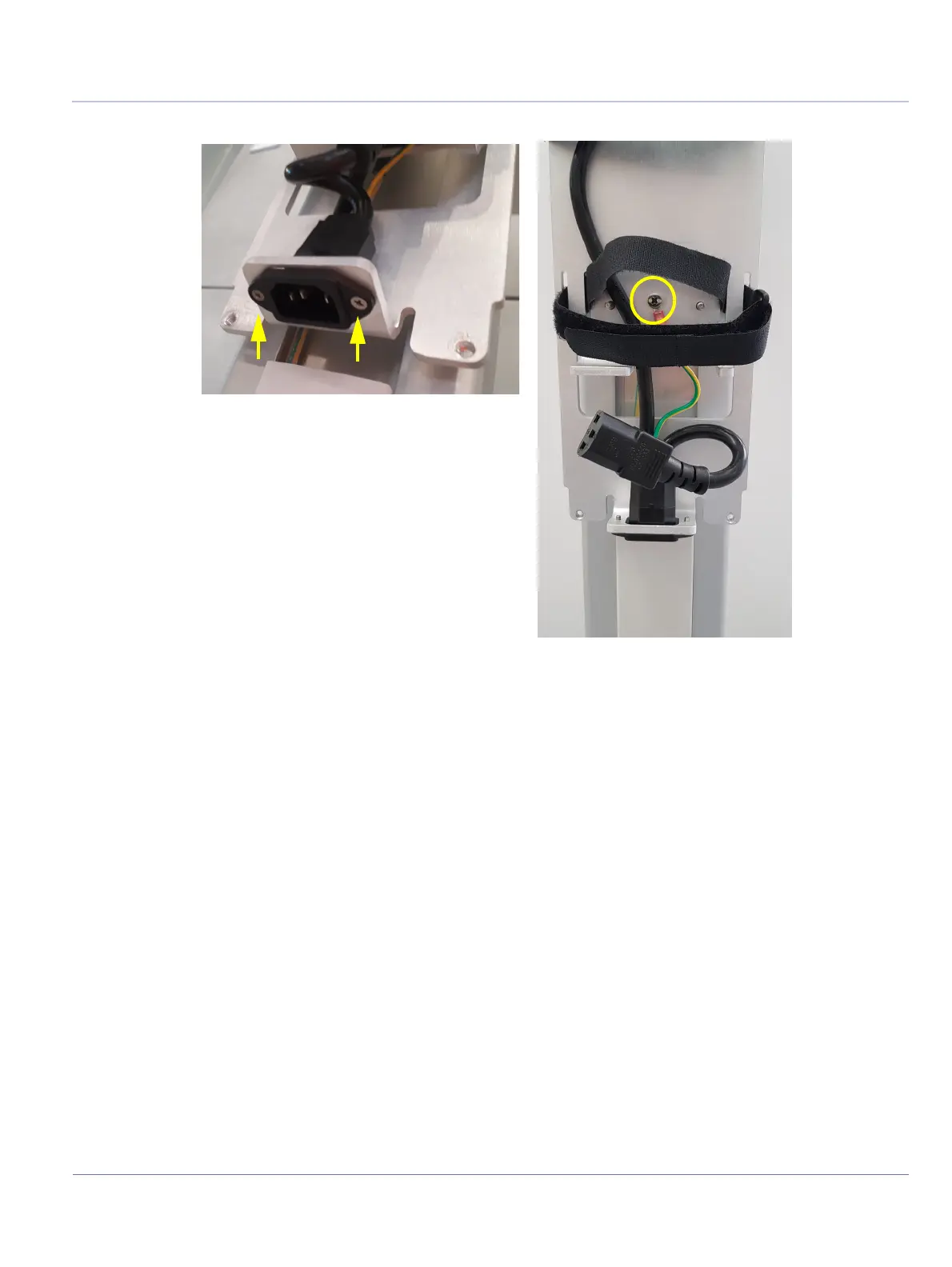

Figure 8-147 Disconnect Split cable
