3-4-3-4 Peripheral/Accessory Interface Panel
Figure 3-18 shows a view of the Venue Go™ ultrasound unit rear panel showing external peripheral/
accessory connectors.
1 Ethernet LAN connector — 1000 Base-TX Ethernet IEEE 802.3 (3kV insulation)
2 USB 3.0 connector x3 (not insulated)
3 HDMI connector (not insulated)
3-4-3-5 EMI Protection
The Venue Go™ has been designed to minimize the effects of Electro-Magnetic Interference (EMI).
Many of the covers, shields, and screws are provided primarily to protect the Venue Go™ from image
artifacts caused by this interference. For this reason, it is imperative that all covers and hardware are
installed and secured before the Venue Go™ is put into operation.
See EMI Limitations on page 2 - 4 for more information about EMI protection.

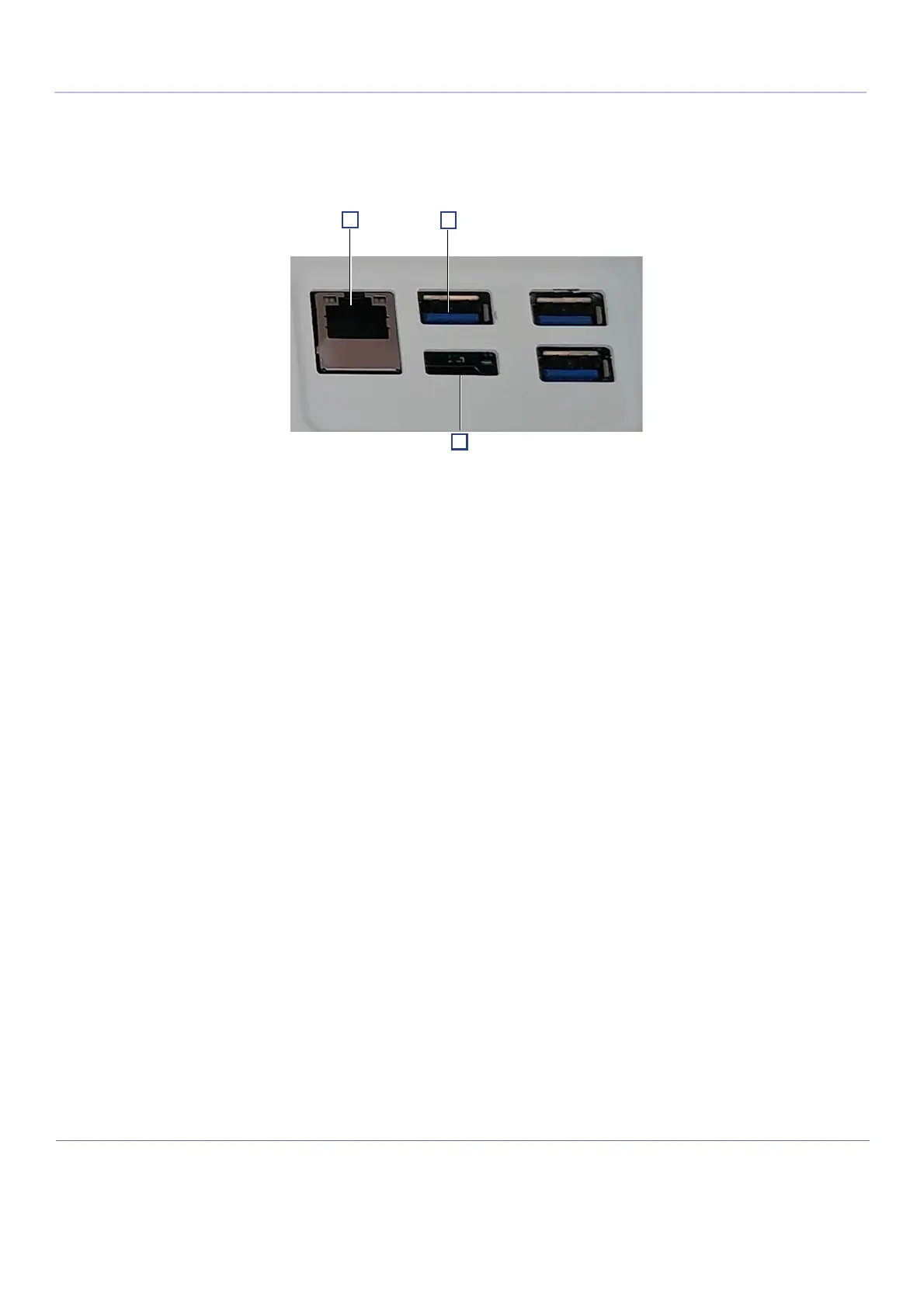

Figure 3-3 View of the Venue™ Peripheral/Accessory Interface Panel
