Description of the System

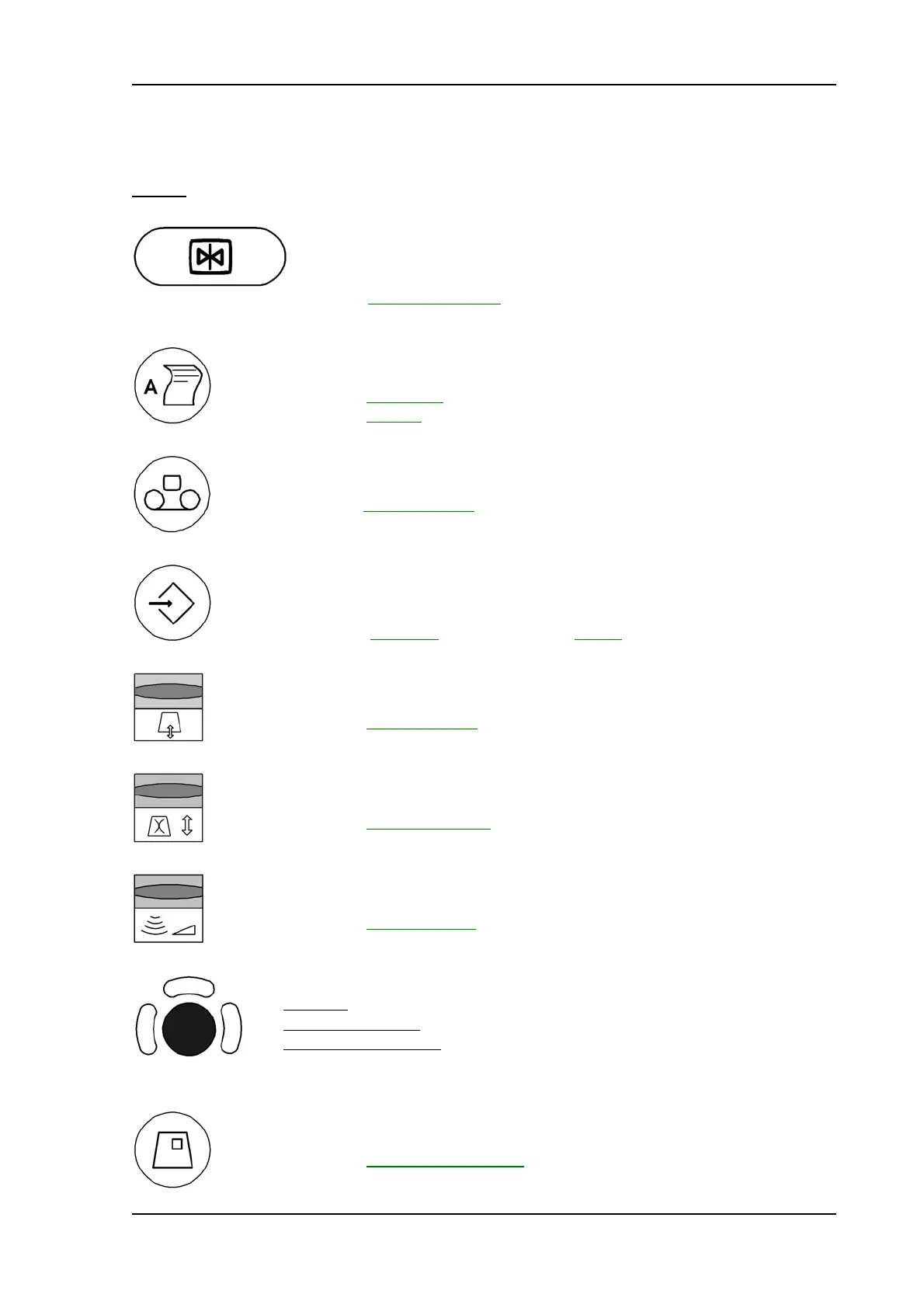

3.6 Hardkeys
NOTE:
The chapter references refer to the Basic User Manual for Voluson
®
730.
Read/Write (Freeze/Run)
when bright: image is frozen (Read-Mode)
when dark: real-time scan (Write-Mode)
review: To freeze an Image
(chapter 4.5.2)
Printer Trigger A
Remote trigger key for B/W-Printer, Color printer, DICOM Printer
key setup review: Peripherals
(chapter 17.3.3)
operation review: Printing
(chapter 16.1)
VCR Remote control menu
operation review: VCR Recording
(chapter 16.2)
Storage (Inter-memory)
to save images, volumes as well as cine sequences in the Sonoview or to send them to
an external DICOM server
operation review: Sonoview
(chapter 15) and Saving (chapter 16.3)
Depth
select the display depth of the 2D image
operation review: 2D Mode Depth
(chapter 5.2)
Focus
select the position of the transmitter focus
operation review: Transmitter Focus
(chapter 5.7)
Power
set the acoustic output of the system
operation review: Transmit Power
(chapter 5.6)
Trackball and Trackball keys
trackball:
positions cursors, Cine/Loop, position and size of the box, etc.
upper trackball key:
changes the actual trackball function
left/right trackball key:
sets, fixates cursors and activates pages/buttons, etc.
HR-Zoom (magnification) on/off
operation review: High Resolution Zoom
(chapter 5.18)
Voluson
®
730 - Instruction Manual
105838 Rev. 3 3-13
