GE Voluson 730 - Connector Panel (Rear Side)

Connections

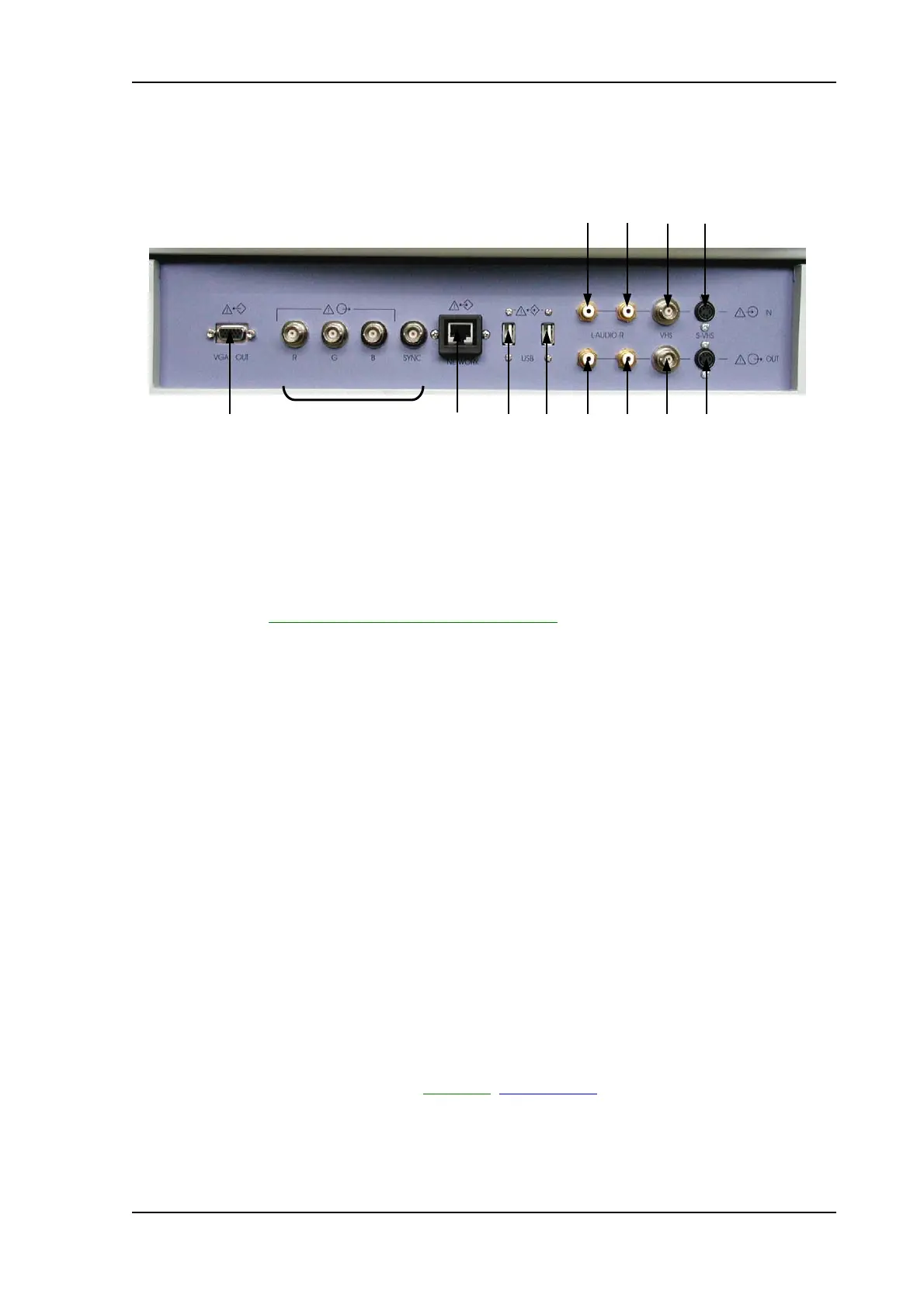

6.2.5 Connector Panel (rear Side)
10 11 12 13
1 2 3 4 5 6 7 8 9
1 VGA (OUTPUT) - print out VGA signal with monitor/printer
2 R, G, B, H/V SYNC - outputs for color video printer/monitor
3 NETWORK - DICOM input/output twisted pair RJ-45 10/100 megabit/s
review: How to Connect Auxiliary Devices Safely
(chapter 6.1)
4 USB-1 – USB port
5 USB-2 – USB port
6 AUDIO LEFT OUT
7 AUDIO RIGHT OUT
8 VHS OUT
9 S-VHS OUT
10 AUDIO LEFT IN
11 AUDIO RIGHT IN
12 VHS IN
13 S-VHS IN
review also: Technical data/ Information: Interfaces
(chapter 7.16),
or (chapter 22.16) of the Basic User Manual for Voluson 730.
Voluson
®
730 - Instruction Manual
105838 Rev. 3 6-9
