Connections

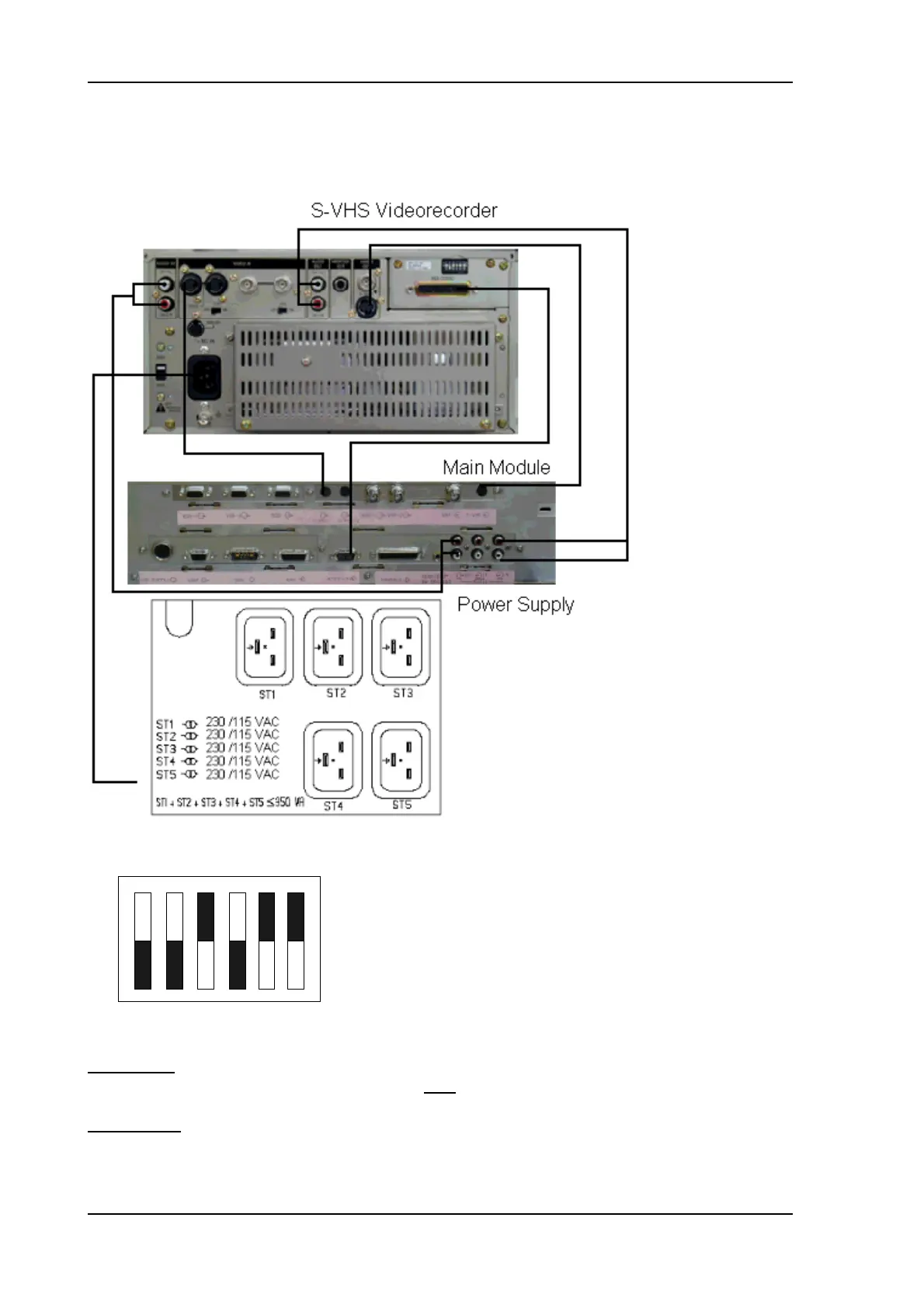

6.2.8 S-VHS Videorecorder Connection Scheme
(Sony SVO-9500MDP)
Set DIP Switches on RS 232C interface board as shown:
12
3
4
56
On
Off
Switch 1: OFF-Audio is muted during fast playback
Switch 2: OFF-FF/REW mode is used during searches.
Switch 3: ON-VCR counter is reset upon cassette ejection.
Switch 4: OFF-The VCR can be controlled by the V730.
Switch 5 + 6: ON-The Baud rate is set to 19200 bit/sec
(must be the same as V730)
CAUTION:
The outlets ST1 – ST5 may be set to 230V or 115V
Modification of voltage setting only
by an authorized service person!
REMARKS:
Please use: Connection set PRR50
Remote cable KUG5
Voluson
®
730 - Instruction Manual
6-12 105838 Rev. 3
