GE Voluson 730 - Power Supply (Rear Side)

Connections

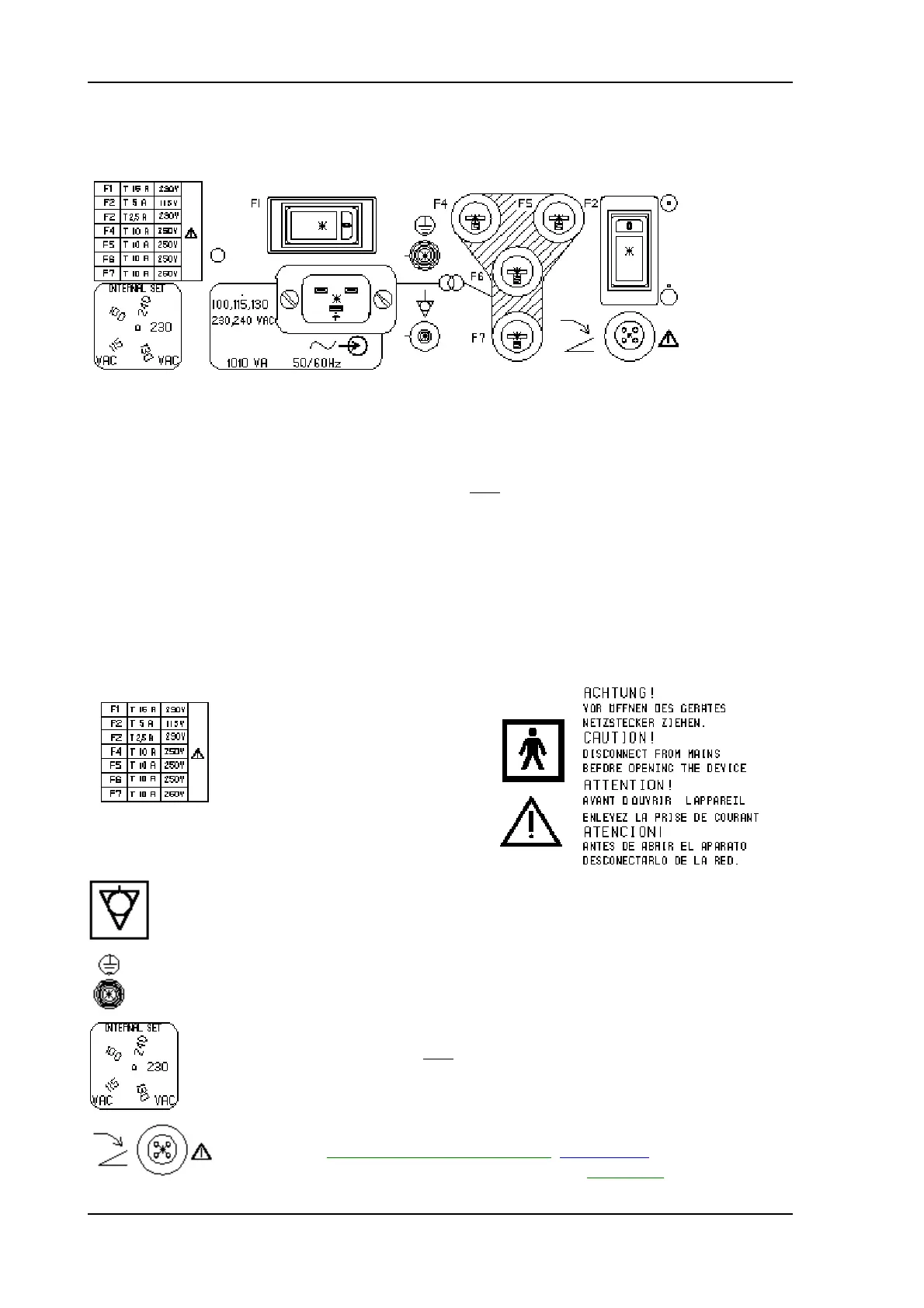

6.2.2 Power Supply (rear Side)
F1 Mains Switch: Thermal Circuitbreaker T 16 Ampere /230V reusable
Manufacturer: E-T-A Type: 3120-F521-P7TI-W01A 16A
Mains IN Mains voltage according to type plate
Modification of voltage setting only
by authorized service person!
Possible mains voltages: 100V, 115V, 130V, 230V, 240V, AC only
F4, F5, F6, F7: T 10 Ampere /250V fuse Type: H (high breaking capacity)
Manufacturer: Schurter order Nr. 0001.2534 Type SPT
F2 On-switch for auxiliary devices:
Thermal Circuitbreaker T 2.5 Ampere / 230V reusable
T 5 Ampere / 115 V reusable
Manufacturer: E-T-A Type: 3120-F521-P7TI-W01A-X017 2.5/5A
Table for the Fuses used.
Potential equilibrium connection (rear panel)
Protective earth connection
Information plate for the adjusted voltage setting.
Modification of voltage setting only
by authorized service person!
Possible mains voltages: 100V, 115V, 130V, 230V, 240V, AC only
Connector for Foot Switch
review also: Important Instructions for Safety
(chapter 2.1).
To adjust the Foot Switch review: System Setup: Peripherals
(chapter 17.3.3).
Voluson
®
730 - Instruction Manual
6-6 105838 Rev. 3
