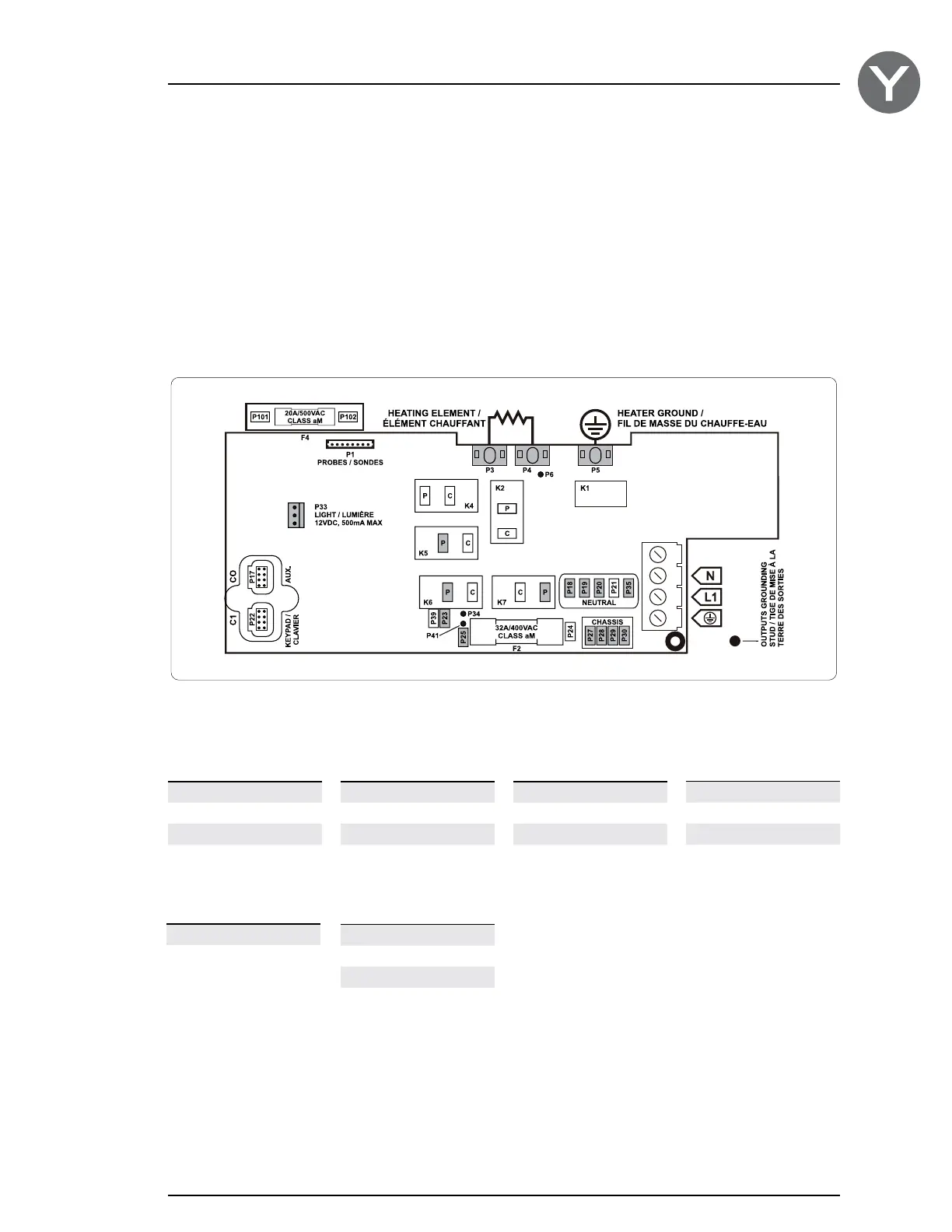

Connecting high voltage accessories: European, Australian, New Zealand model in.yj-ce
These tabs require high-voltage accessories to have straight, non-insulated, female quick-connect terminals for all
connections, including ground. Refer to the following tables for correct connections. Note that all female terminals must
be correctly and completely seated on the PCB tab for proper current ratings.
This table shows typical connections. OEMs may have a different connection scheme.
Direct output
Voltage 230 V
Ground P27
Line P25
Common P18
Pump 1
Voltage 230 V
Ground P28
Low speed K6-P
High speed K7-P
Common P19
Pump 2 (in.yj-3 only)
Voltage 230 V
Ground P29
Low speed K5-P
Common P20
Make sure all accessories are linked to the bonding lug connector located on the side of the spa pack.
Connections
Light (12 V DC , 500mA)
Switch P33
Heat.wav-yj
Green / ground P5
Black / line P3
White / common P4
Ozone
(Working with pump 1 low speed)
Voltage 230 V
Ground P30
Line P23
Common P35
