17
Electrical wiring: CE/AUS/NZS models
Warning!
in.yj.ce models must always be connected to a circuit protected by a Residual-Current Device (RCD)
having a rated operating residual-current not exceeding 30 mA.
Correct wiring of the electrical service box, RCD, and pack terminal block is essential!
Check your electrical code for local regulations. Only copper wire should be used, never aluminum.

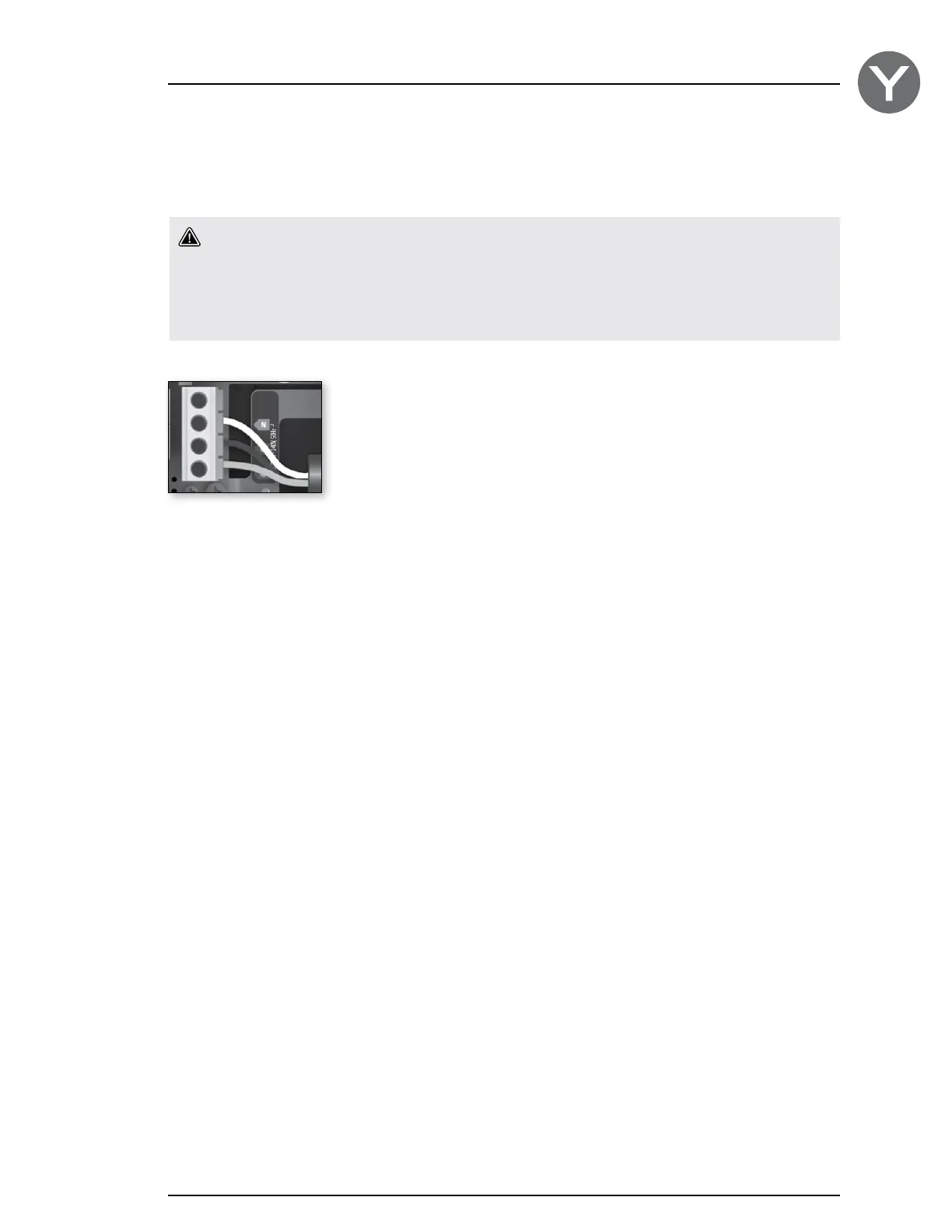

Insert each wire into the appropriate socket of the main entry terminal block according to the color code indicated on the
sticker. Use a flat screwdriver to tighten the screws on the terminal.
After making sure wires are securley connected, push them back into the box and replace the cover. Do not over tighten
cover screws (torque to 8 in.lb max {0.9 N.m.}).
Connect the bonding conductor to the bonding lug on the side of the spa pack (a grounded electrode conductor should be
used to connect the equipment grounding conductors).
Refer to wiring diagram in the enclosure box lid for more information.
230 V (3 wires)
Electrical wiring
