7
This side up

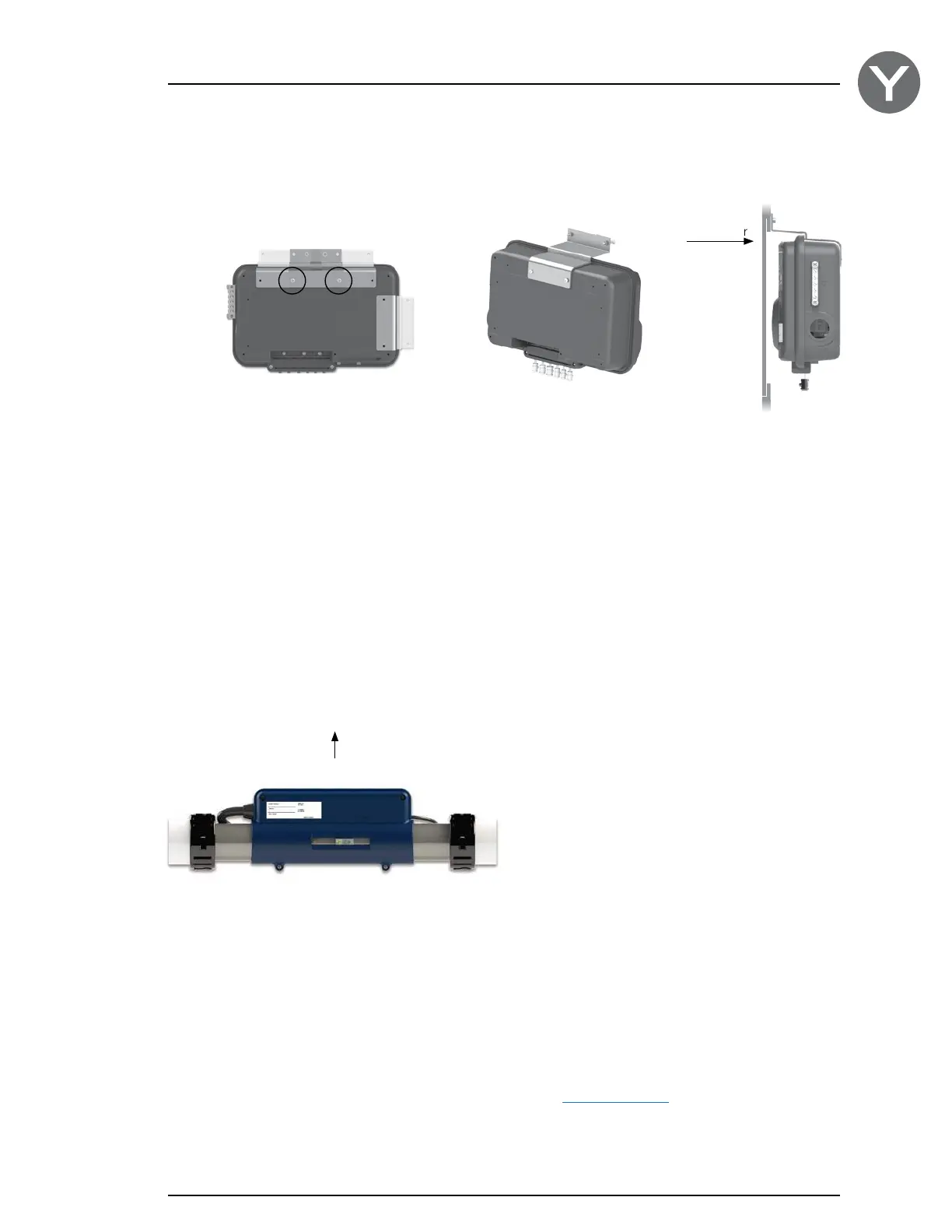

heat.wav installation (not applicable on in.yj-re models)
The heat.wav heating element must be installed in the
return circuit of the main pump (pressure side).
The aluminum Z-bracket is designed for flush-mounting
the pack directly on the edge of the access door frame
of your spa. It can be mounted to the pack in one of
4 positions for greater flexibility.
Fasten the mounting bracket(s) to the back of the pack
with the supplied screws.
Part number:
Z-bracket in.yj kit 100 pcs - 9920-101478
(with 200 screws to attach to pack)
Depending on your specific needs, you can fasten with
two #10-24 screws of your choice.
Note: The spa pack must be installed at least 4" (100 mm) above
potential flood level. If floor is on ground level, pack should be
raised at least 4" (100 mm).
in.yj installation procedure with wall mounting Z-bracket(s)
1 32
4
Access door
For detailed installation instructions and a drilling template, refer to the compatible keypad section and select your
keypad to be redirected to the corresponding techbook.
Keypad installation
Installation
