Overview

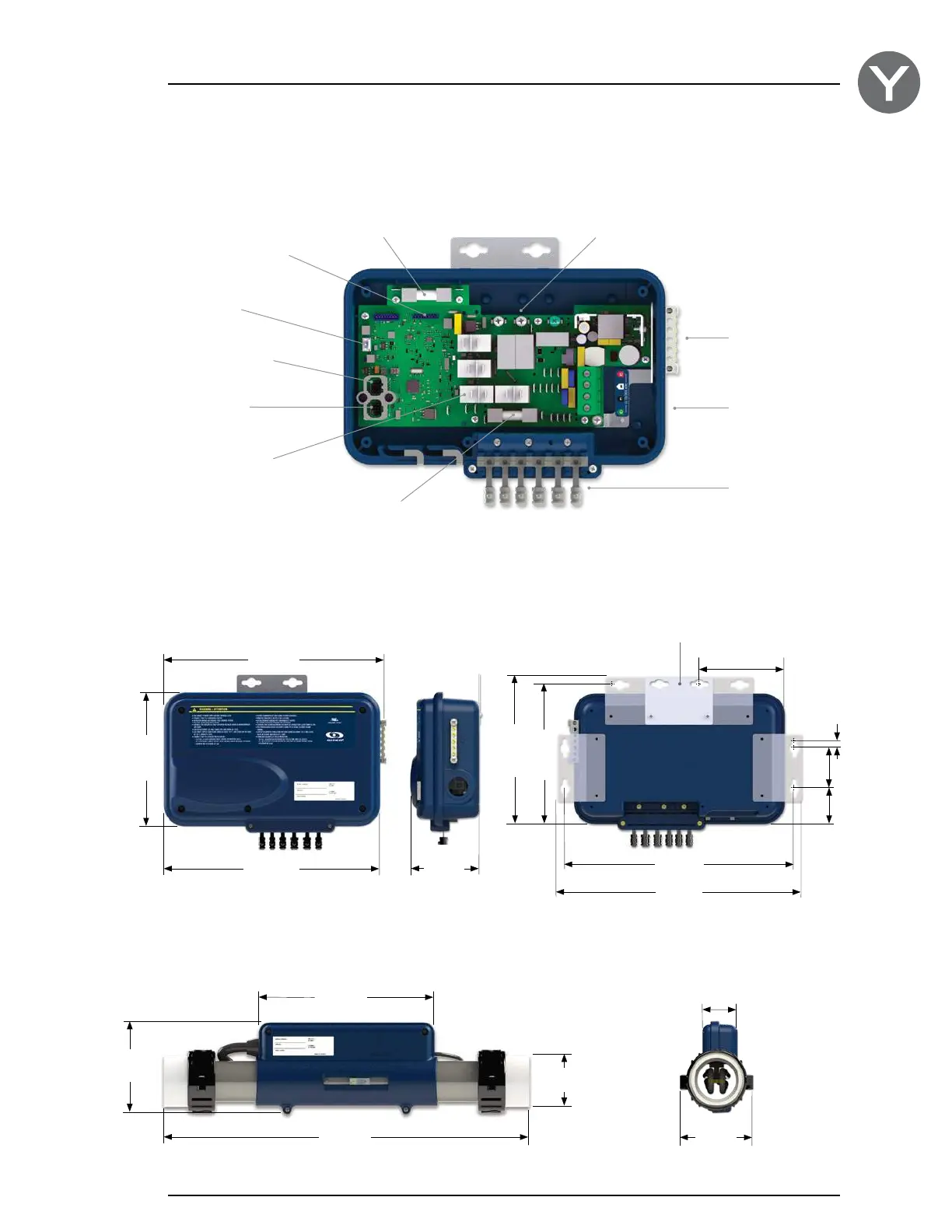

in.yj dimensions
Note: Shown with optional wall mouting brackets (see Installation).
heat.wav dimensions
Communication link
(in.touch or in.stik)
Light output (12 V DC)
Power output drivers
Main keypad
connector
Main power entry
connection
Bonding lugs
heat.wav power
connection
Probe connectors
(heat.wav's low voltage
cable or regulation probe
and overheat captor
model-re)
Watertight strain
relief system
Pump 1 and
accessory fuse
Pump 2 fuse (Available
only with the in.yj-3)
9.45"
(240 mm)
19.58"
(497 mm)
Front view
4.94"
(125 mm)
2.77"
(70 mm)
Side view
1.88"
(48 mm)
3.92"
(100 mm)
Front view
Side view
Rear view
12.14"
(308 mm)
7.33 "
(186 mm)
11.83"
(301 mm)
3.78"
(96 mm)
12.89"
(327 mm)
0.40"
(10 mm)
4.79"
(122 mm)
2.25"
(57 mm)
13.75"
(349 mm)
7.86"
(200 mm)
2.04"
(52 mm)
8.29"
(211 mm)
5 possible positions for the bracket
