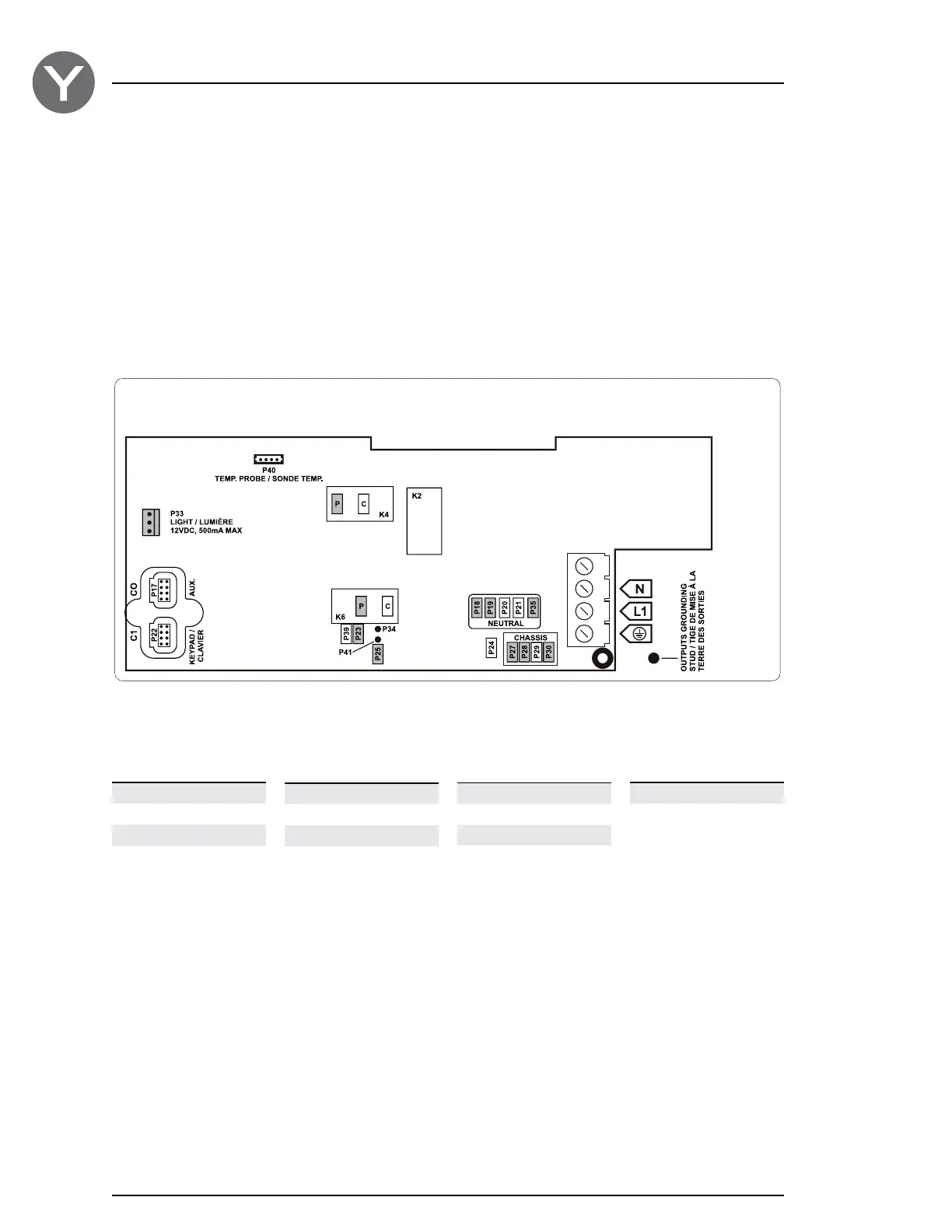

These tabs require high-voltage accessories to have straight, non-insulated, female quick-connect terminals for all
connections, including ground. Refer to the following tables for correct connections. Note that all female terminals must
be correctly and completely seated on the PCB tab for proper current ratings.
Light (12 V DC , 500mA)
Switch P33
Direct output
Voltage 120 V
Green / ground P27
Black / line P25
White / common P18
Pump 1
Voltage 120 V
Green / ground P28
Black / low speed K6-P
Red / high speed K4-P
White / common P19
Ozonateur
Voltage 120 V
Green / ground P30
Black / line P23
White / common P35
Connections
This table shows typical connections. OEMs may have a different connection scheme.
Make sure all accessories are linked to the bonding lug connector located on the side of the spa pack.
