Geeetech Rostock 301 Building Instruction

www.geeetech.com
Page 32
ShenZhen GETECH CO.,LTD

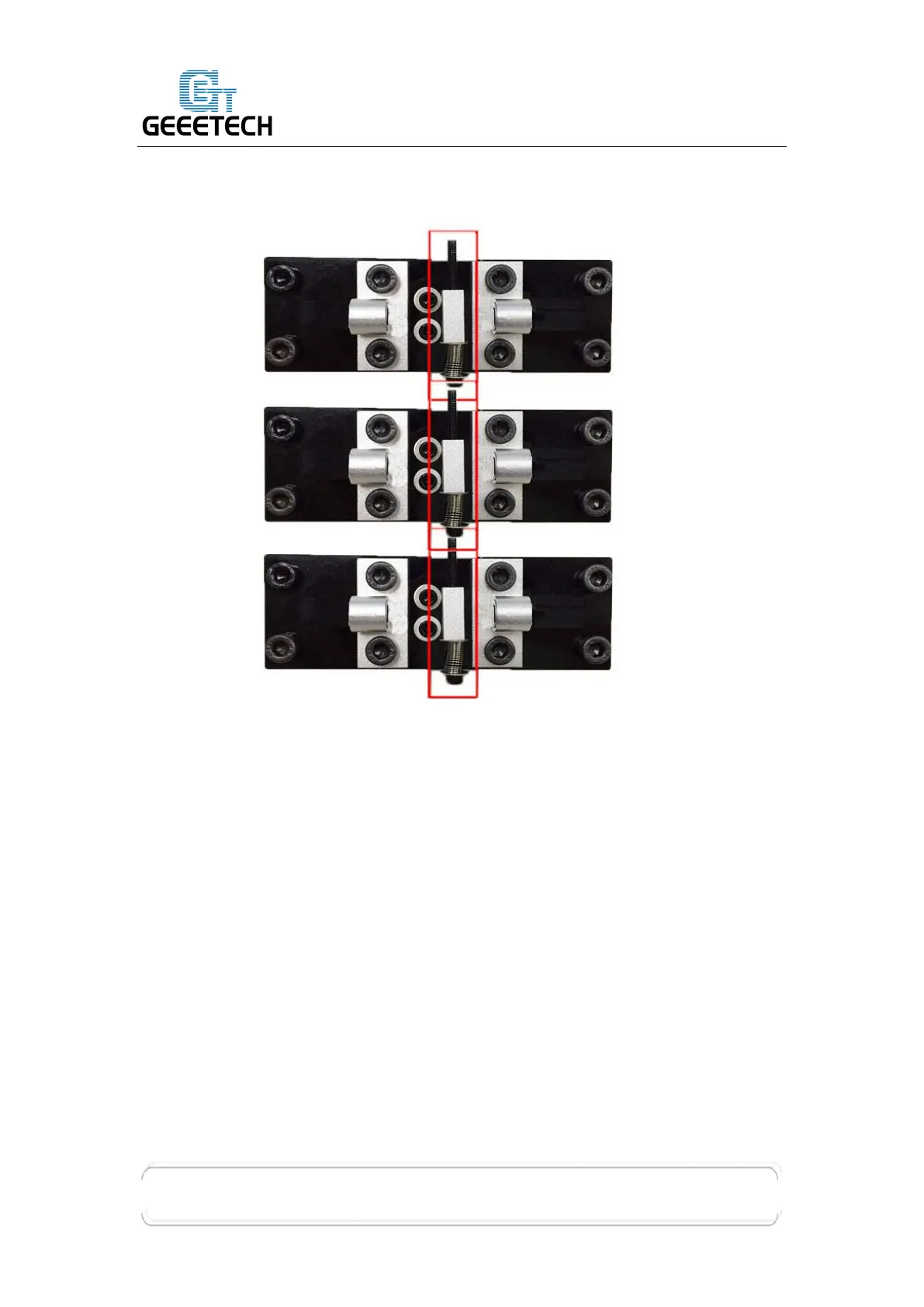

Repeat the steps for the remaining two carriages. When you have completed these
all three carriages should be exactly the same and look as in this picture:
Step 4. Finally insert the rod-end bearing holder (#3) into the diagonal rod joint
(#M4) fixing it place with M3x8mm screw (#19) and M3 washer (#5).
Repeat the step for the other 2 carriages.

Geeetech Rostock 301 Specifications

General

Brand	Geeetech
Model	Rostock 301
Category	3D Printers
Language	English
