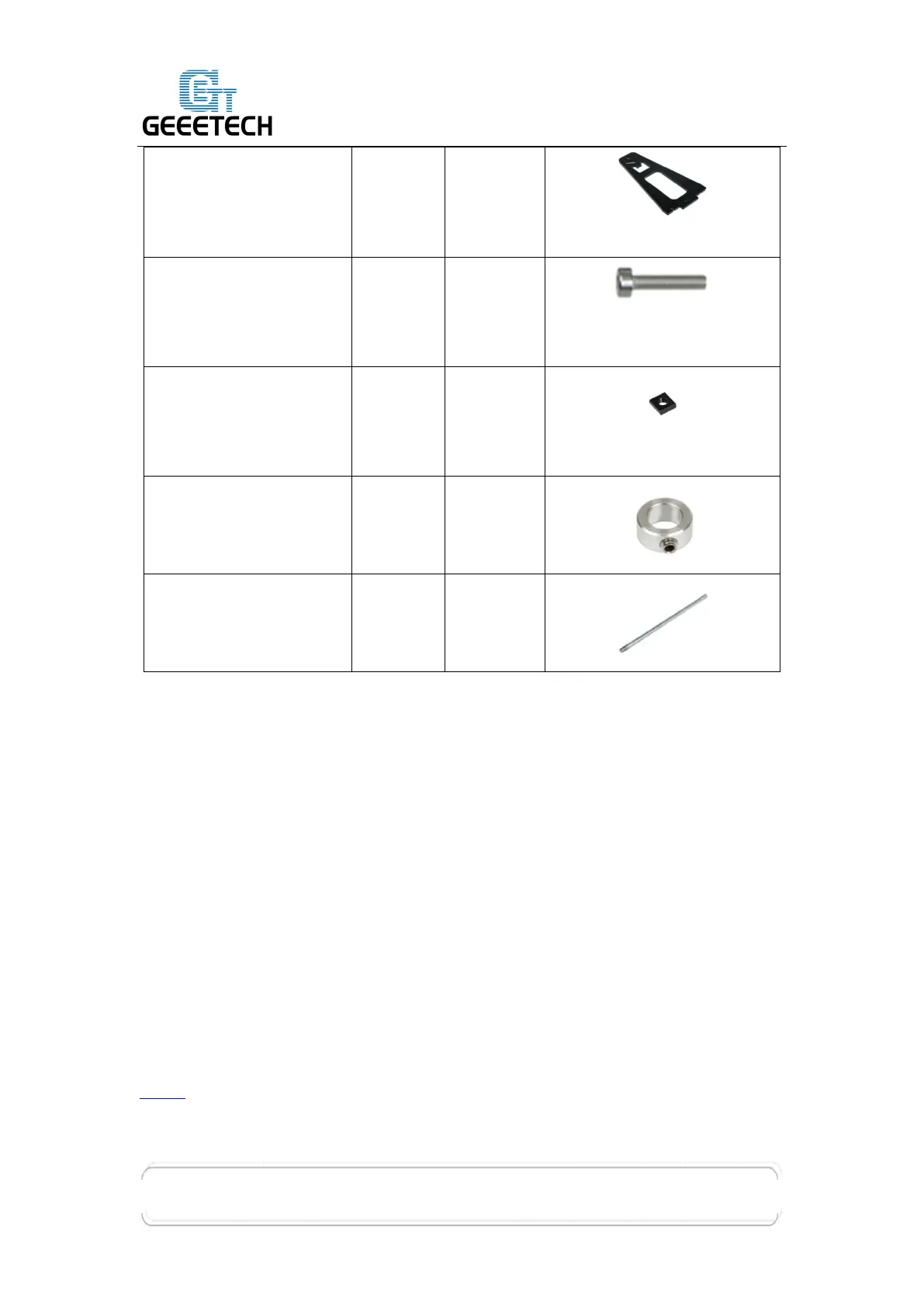

Step 1. Fit the spool holder side panel (#A10) in to the locating holes on the top
plate (#A1) and fix in place with M3x16 screw (#21), M3 square nut (#13)
and washer (#5).
Step 2. Repeat the previous step with the other spool holder side panel (#A10)
fixing in place with M3x16 screw (#21), M3 square nut (#13) and washer
(#5).
Step 3. Slide the Filament Spool (#2) through the holes and lock the two sides in
place with the locking rings (#30). Then put filament on the two sides and
lock them with locking rings.
You can finish this step later when you start printing.
