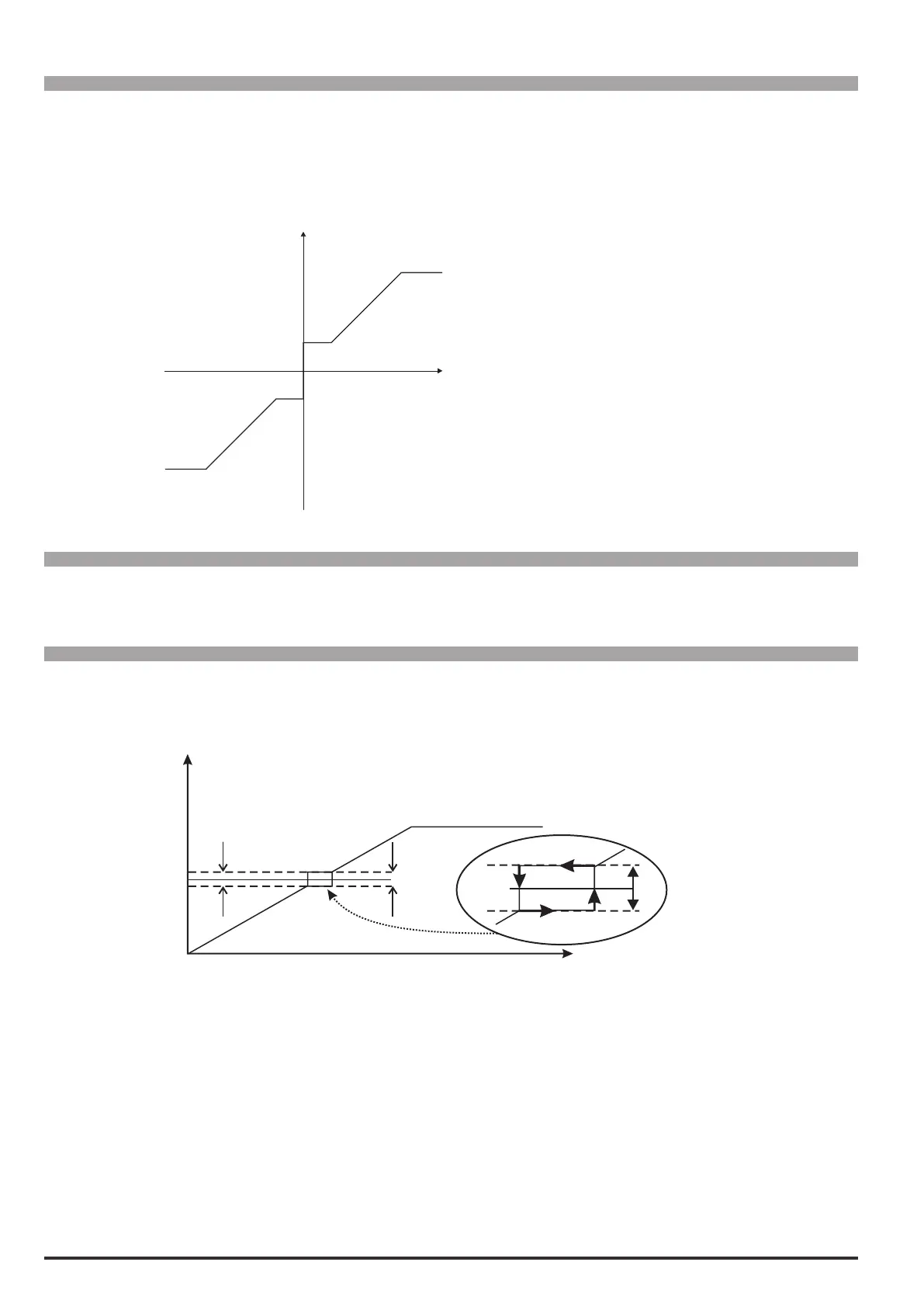

26 ADV200 • Functions description and parameters list

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

5.12 636 Ramprefbottomlim FF INT32 0 0 CALCI ERWZ FVS

It denes the minimum value of the output of the ramp reference block, regardless of the signal that is present.

The ramp block output remains at the value set with this parameter until the analog signal exceeds this thresh-

old: the ramp output value then starts to follow the reference up to the value set in parameter PAR 634 Ramp

reftoplim. The limit is valid for both directions of rotation.

- 100 %

- 10V

100 %

10V

Par 636

Par 634

Analog

input

100 %

- 100 %

Ramp

output

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

5.13 630 Referenceskipset rpm INT16 0 0 CALCI ERW FVS

Setting of the prohibited speed threshold at which the drive cannot operate.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

5.14 632 Referenceskipband rpm INT16 0 0 CALCI ERW FVS

Setting of the prohibited bandwidth.

Par. 630

Reference out

Reference in

Par 632

Par. 630

Par. 632 Par. 632

Example:

A) Increase in the reference by values of less than Par. 630

Par. 630 = 300 rpm (prohibited speed threshold)

Par. 632 = 10 rpm (thus prohibited band: 290rpm.310rpm)

Set speed reference = 295 rpmHz

Output speed = 290 rpm

Set speed reference = 305 rpm

Output speed = 290 rpm
