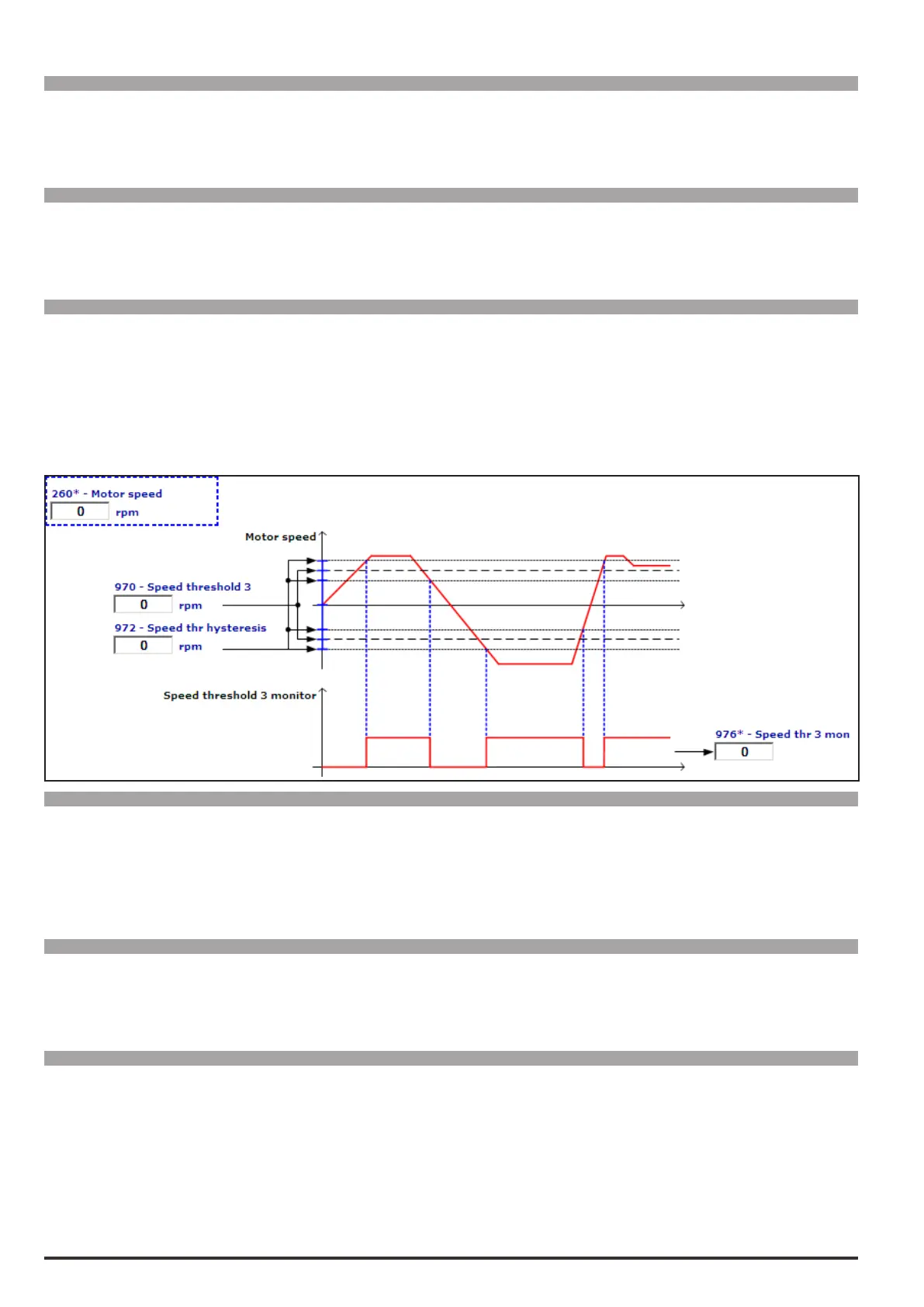

44 ADV200 • Functions description and parameters list
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.5 950 Speedthreshold1 rpm INT32 0 CALCI CALCI RW FVS
Setting of speed threshold 1 (upper). When the threshold is exceeded the Speedthreshold signal is disabled,
with a delay that can be set in Speedthresholddly.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.6 952 Speedthreshold2 rpm INT32 0 CALCI CALCI RW FVS
Setting of speed threshold 2 (lower). When the threshold is exceeded the Speedthreshold signal is disabled,
with a delay that can be set in Speedthresholddly.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.7 954 Speedthresholddly ms UINT16 0 0 50000 RW FVS
Setting of the delay after which the transition from 0 c1 is activated. The transition from 0 c1 occurs when the
speed is within the set limits.TheSpeedthresholdsignaltransitionfrom1c0isalwaysimmediate.
If the motor speed is between Speedthreshold1 and Speedthreshold2, the Speedthresholdsignal is ac-
tive. If Speedthreshold1 < Speedthreshold2 the Speedthresholdsignal is not signicant.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.8 960 Setspeedrefsrc LINK 16/32 628 0 16384 ERW FVS
Selection of the origin (source) of the signal used as speed reference and on which the speed reached control
is performed (for control with ramp, use Rampsetpoint, for control without ramp, use Speedsetpoint). The
signal that can be used as the speed reference can be selected from among those listed in the “L_CMP” selec-
tion list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.9 962 Setspeederror rpm INT16 100 0 CALCI RW FVS
Setting of the bandwidth of the tolerance within which, even if the speed is not equal to the reference, the two
values are considered to coincide and the Setspeed signal is enabled.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.10 964 Setspeeddelay ms UINT16 0 0 50000 RW FVS
Setting of a delay in ms before the signal (Setspeed programmed on a digital output), if the speed is within a
tolerance band dened by the Setspeederror parameter, after which the transition from 0 c1 is enabled.
ThetransitionoftheSetSpeedsignalfrom0c1isalwaysimmediate.
To Next Page
