ADV200 • Functions description and parameters list 45
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.11 968 Digsetspeedref rpm UINT16 16/32BIT 0 CALCI CALCI RW FVS
Setting of the threshold used as the speed reference: this parameter is used to set a xed threshold regardless
of the speed reference.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.12 970 Speedthreshold3 rpm INT32 0 0 CALCI ERW FVS

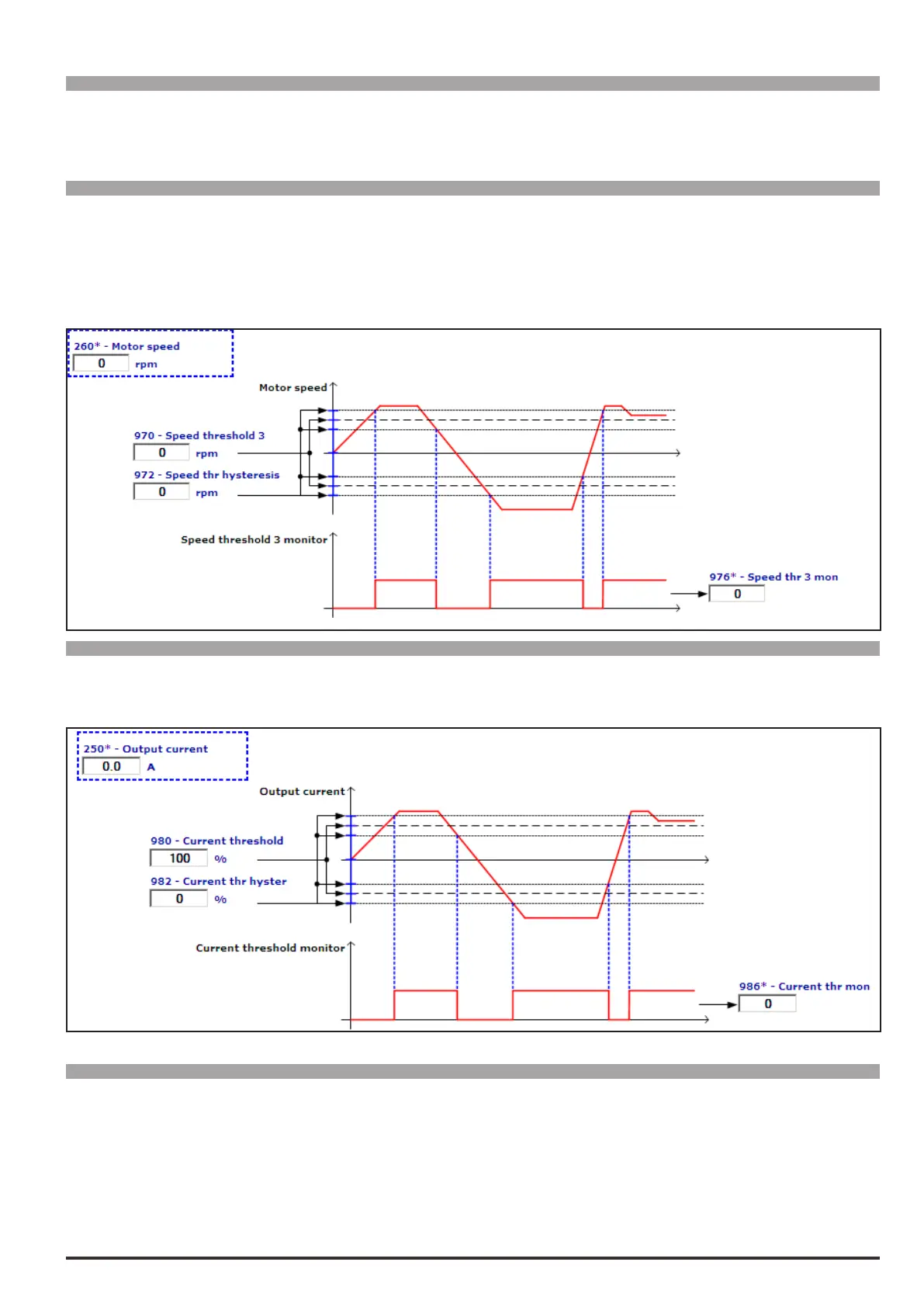

Setting of the speed 3 threshold. When this threshold + the tolerance band set in parameter 972Speedthr
hysteresis are exceeded, parameter 976Speedthr3mon is enabled. The signal is disabled when the motor
speed falls below the threshold - the tolerance band. If the threshold value is lower than the value set in 972
Speedthrhysteresis, the result produced is always 0. The value set in this parameter is active in both direc-
tions of rotation.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.13 972 Speedthrhysteresis rpm UINT16 0 0 CALCI RW FVS
Setting of the tolerance band around Speedthreshold3. The tolerance band is the same for both directions of
rotation of the motor.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.14 980 Currentthreshold perc UINT16 100 0 200 RW FVS
Setting of the current threshold. A value of 100% corresponds to the value of the drive heavy duty continuous
current, displayed in parameter 488Drivecontcurrent, when parameter 566Driveoverloadmode is set
to Heavyduty, and no derating of the drive continuous current has been activated due to any modication of
Mains voltage, Switching frequency and Ambient temperature.
The drive heavy duty continuous current value to be used is the factory setting read in PAR 488 Drivecont
current.
When this threshold + the tolerance band set in parameter 982C urrentthrhyster are exceeded, parameter 986
