52 ADV200 • Functions description and parameters list
The status of the Start command is displayed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
11.15 1028FastStopcmdmon BIT 16 0 0 1 R FVS
This parameter is used to display the value of the FastStop command state.
0 FastStop not active
1 FastStop active
If the “FastStop mode” parameter is set to 0 = “Not Latched”, the value of the FastStop command monitor
changes to 1 when the FastStop input is activated and remains high (1) until the Enable or FastStop inputs are
deactivated (0 state).
If the “FastStop mode” parameter is set to 1 = “Latched”, the value of the FastStop command monitor changes
to 1 when the FastStop input is activated and remains high (1) until the Enable, Start, FastStop inputs are
deactivated (0 state).
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
11.16 1040FRmode ENUM Normal 0 2 ERWZ FVS
Setting of the operating mode of the Forward Reverse Control (FRC) block.
0 Normal
1 Two wire Two wire control
2 Three wire Three wire control
The default use of the FRC block is shown below.
The Start command is linked to the Start terminal and the Reverse command is linked to Ramp ref invert.

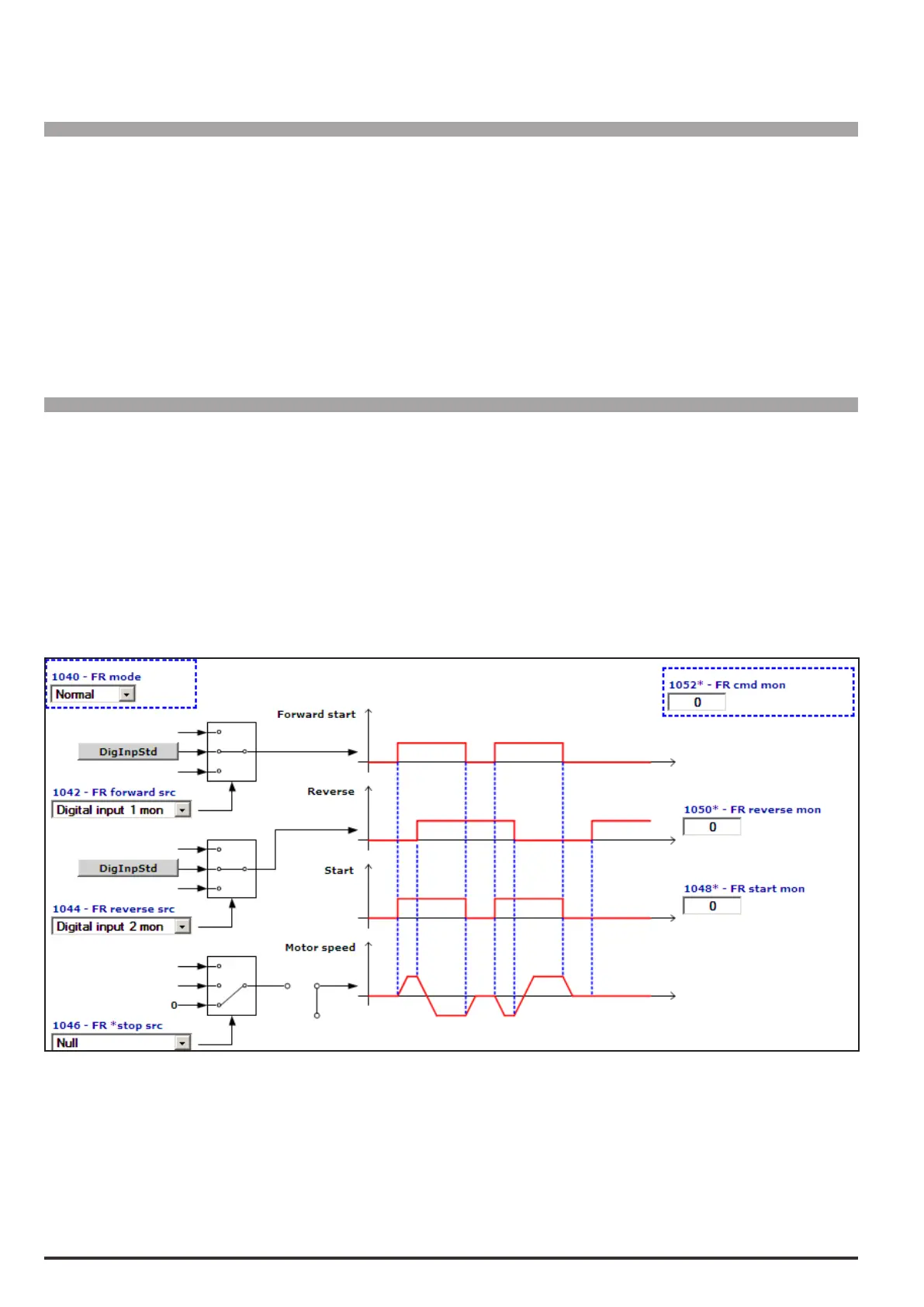

The function diagrams of the 3 modes are shown below.
When 0-Normal control is set the motor only starts rotating when the FRForward command is sent. If the FR
Reverse command is present the motor rotates in the reverse direction,
The FRstartmon output repeats the status of the FRForward command, while the FRreversemon output
repeats the status of theFRReverse command.
