64 ADV200 • Functions description and parameters list

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

14.6 1510Analoginp1filter ms FLOAT 10.0 1.0 1000.0 ERW FVS

14.22 1560Analoginp2filter ms FLOAT 10.0 1.0 1000.0 ERW FVS

Filter on the measurement of the corresponding analog input. This parameter can be used to control the re-

sponse of the analog input and reduce any possible noise and interference.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

14.7 1512Analoginp1top cnt INT16 16384 -32768 +32767 ERW FVS

14.23 1562Analoginp2top cnt INT16 16384 -32768 + 32767 ERW FVS

Setting of the upper speed reference limit as a function of the voltage (or current) of the relative analog refer-

ence.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

14.8 1514Analoginp1bottom cnt INT16 -16384 -32768 + 32767 ERW FVS

14.24 1564Analoginp2bottom cnt INT16 -16384 -32768 + 32767 ERW FVS

Setting of the lower speed reference limit as a function of the voltage (or current) of the relative analog refer-

ence.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

14.9 1516Analoginp1offset cnt INT16 0 -32768 + 32767 ERW FVS

14.25 1566Analoginp2offset cnt INT16 0 -32768 + 32767 ERW FVS

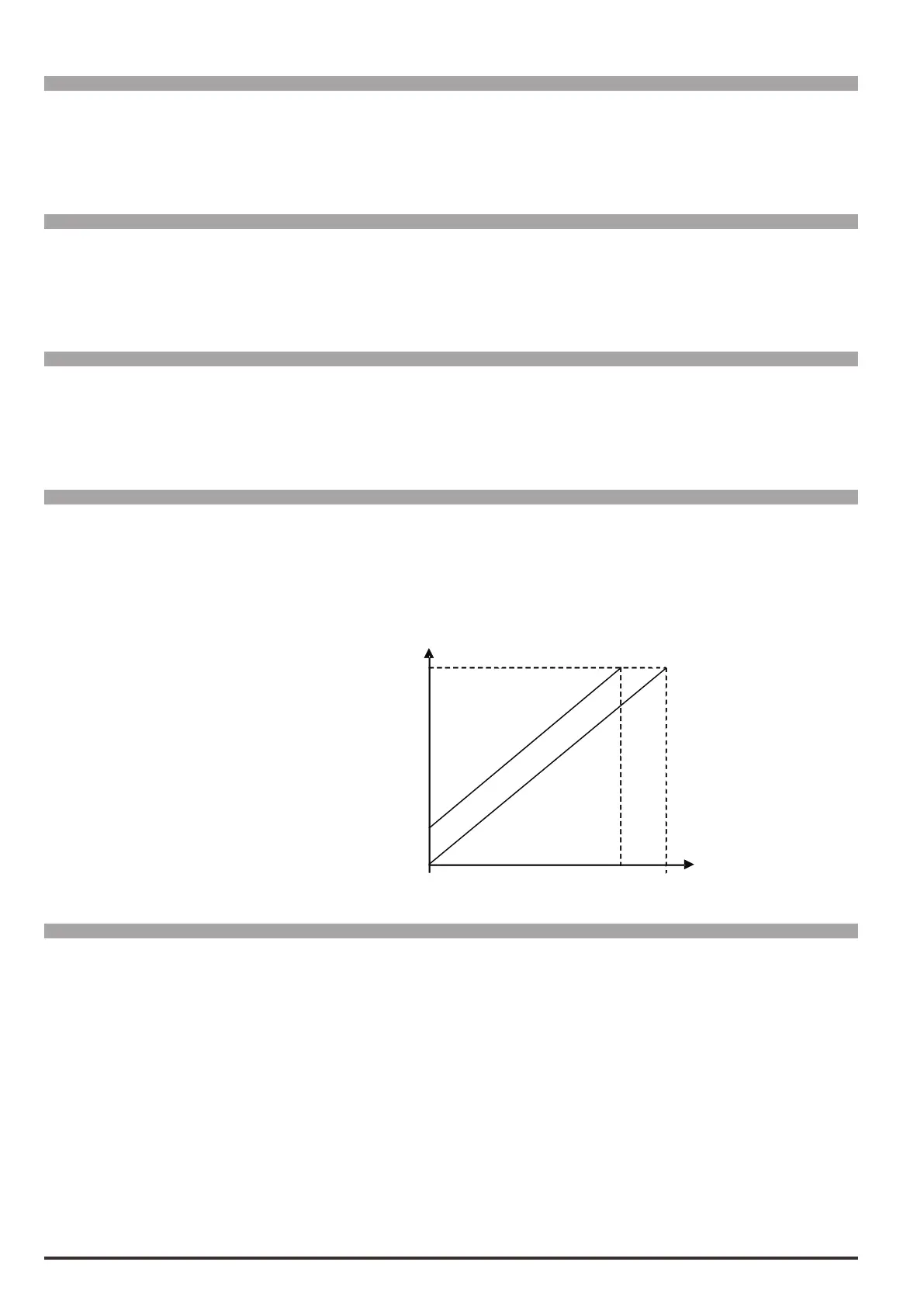

Setting of a value to compensate the condition in which the analog signal contains an offset, or when the vari-

able assigned to the input already has a value even though no signal is connected.

10V

100%

Analog inp x offset

{

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

14.10 1518Analoginp1gain FLOAT 1.0 -10.0 10.0 ERW FVS

14.26 1568Analoginp2gain FLOAT 1.0 -10.0 10.0 ERW FVS

This parameter contains the value of the multiplier factor to apply to the analog reference calculated using the

Analoginpgaintune function.

Example:

An external analog reference only reaches a maximum of 9.8V instead of 10V. 1.020 (10V : 9.8V) is entered as

the Analoginpxgain parameter.

The same result can be achieved using the Aninpxgaintune function. This parameter can be selected from

the keypad menu. The maximum analog value available (in this case 9.8V) must be present on the terminal,

with positive polarity. Press the Enter key on the keypad to start analog reference self-tuning.
