ADV200 • Functions description and parameters list 73
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.7 1824Anout1absolute ENUM Disable 0 1 ERW FVS
15.8 1826Anout2absolute ENUM Disable 0 1 ERW FVS
Enables the relative analog output as an absolute value. If this parameter is set to 1 the voltage on the analog
output assumes the value of 0 - 10V regardless of the sign of the command signal.
0 Disable
1 Enable
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.9 1832Analogout1min cnt INT16 -16384 -32768 +32767 ERW FVS
15.10 1834Analogout1max cnt INT16 16384 -32768 +32767 ERW FVS
Setting of the minimum and maximum values for the analog output for the voltage present on analog output 1
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.11 1840Analogout2min cnt INT16 -16384 -32768 +32767 ERW FVS
15.12 1842Analogout2max cnt INT16 16384 -32768 +32767 ERW FVS
Setting of the minimum and maximum values for the analog output for the voltage present on analog output 2
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.13 1848Analogout2type ENUM -10V..+10V 0 2 ERW FVS
Selection of the type of output (in voltage or current). Depending on the output signal, move the S3 switch on
the regulation card. The standard output is coded for the signal in voltage.
0 0...20mA
1 4..20mA
2 -10V..+10V
If set to 0 the analog output sends 0...20mA
If set to 1the analog output sends 4...20mA
If set to2 the analog output sends -10..+10V
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
15.14 1850Analogout1Xsrc LINK 16/32 6000 0 16384 RW FVS
15.15 1852Analogout2Xsrc LINK 16/32 6000 0 16384 RW FVS

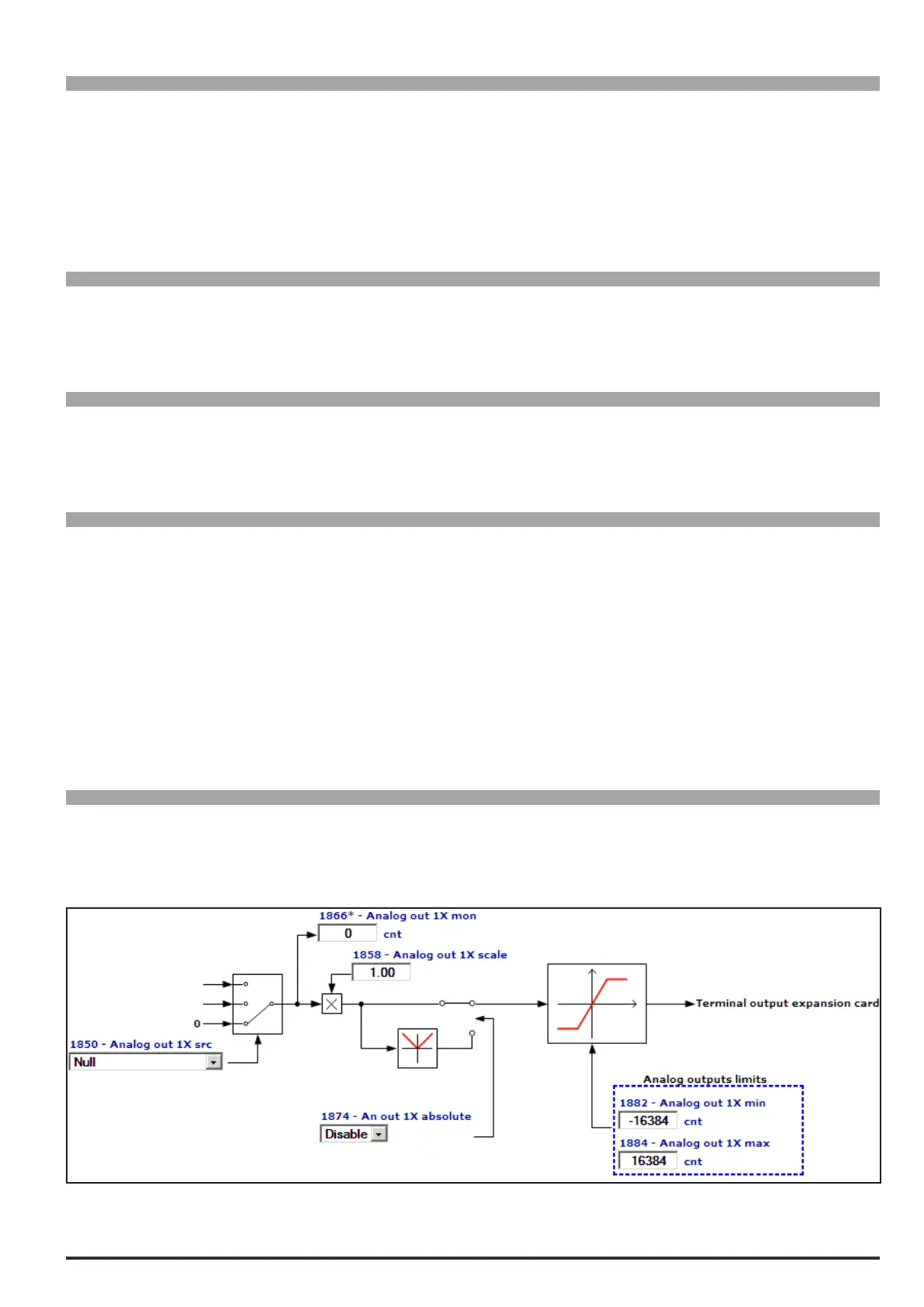

Selection of the origin (source) of the signals that can be placed as variables on the analog outputs of the expan-
sion card. The functions that can be assigned to the analog outputs are listed in the “L_ANOUT” selection list.
