gefran ADV200

ADV200 • Functions description and parameters list 93
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
19.5 2264FluxregPgainOL A/Wb FLOAT CALCF 0.0 0.0 ERWS __S
Setting of the ux regulator proportional gain when the drive is used in open loop sensorless vector control
mode. This parameter is set automatically by the self-tuning procedure.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
19.6 2266FluxregItimeOL ms FLOAT CALCF 0.01 10000.0 ERWS __S
Setting of the ux regulator integral time when the drive is used in open loop sensorless vector control mode.
This parameter is set automatically by the self-tuning procedure.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
19.7 2270VoltageregPgain Wb/V FLOAT CALCF 0.0 0.0 ERWS F_S
Setting of the proportional coefcient of the voltage regulator.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
19.8 2272VoltageregItime s FLOAT CALCF 0.1 100.0 ERWS F_S
Setting of the integral coefcient of the voltage regulator.

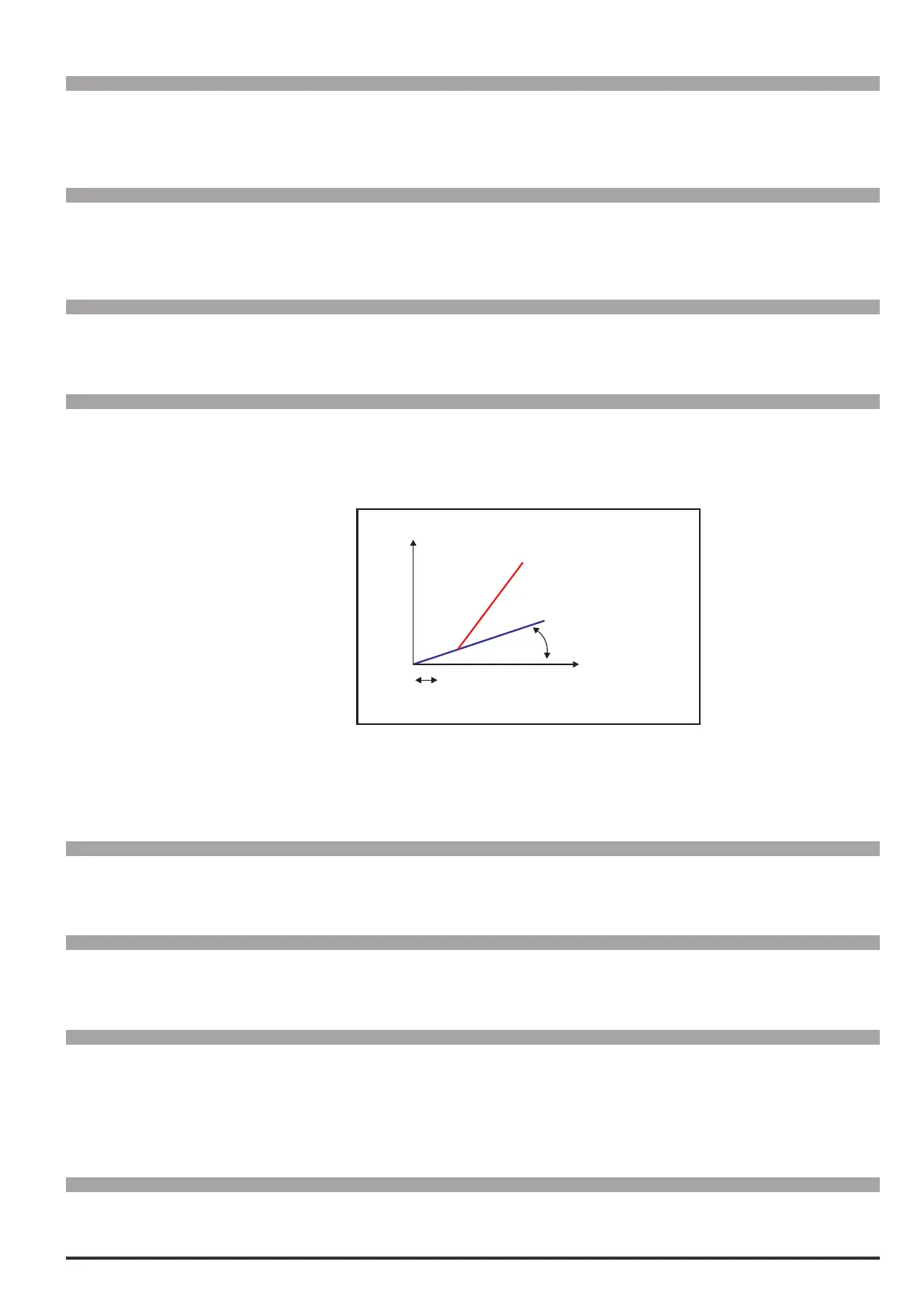

Dead time limit
Dead time slope
Dead time compensation
Output voltage
Voltage command to PWM
The dead time compensation function (Deadtimecompensation), compensates the distortion of output volt-
age caused by the voltage drop on the IGBT devices and their switching characteristics.
Distortion of output voltage could cause irregular motor rotation.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
19.9 2280Deadtimelimit V FLOAT SIZE 0.0 50.0 ERWS FVS
Setting of the dead time voltage compensation value.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
19.10 2282Deadtimeslope V/A FLOAT SIZE 0.0 200.0 ERWS FVS
Setting of the dead time compensation slope value.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
19.11 2290Voltagebase V FLOAT CALCF 50.0 690.0 ERWS F_S
Setting of the voltage value that determines the threshold at which ux weakening starts (maximum drive out-
put voltage). If this parameter is set to a value equal to the nominal speed of the motor, operation is at nominal
ux in the constant torque region and weakened ux at higher frequencies. The default value is set to the volt-
age supply value.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
19.12 2292Voltagemargin perc FLOAT 5.0 0.0 10.0 ERWS F_S
Setting of the voltage regulation margin according to the available voltage. In case of a Voltagebasesetting
