109
MAINTENANCE

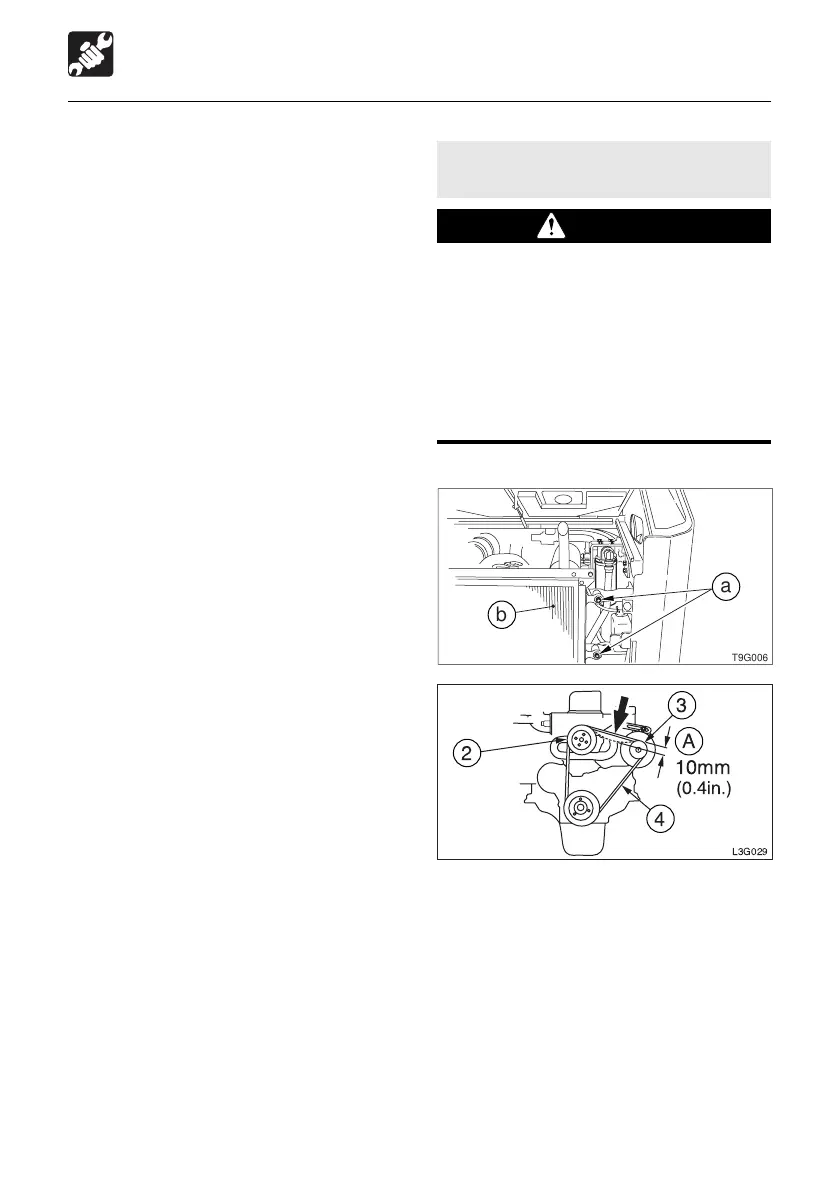

After First 50 Hours (New Machines Only)
Inspecting and Adjusting the Fan
Belt
WARNING
Stop the engine and allow the machine
to cool down before performing
inspection and maintenance.
¡¡
¡¡
¡The engine, muffler, radiator, hydraulic
lines, sliding parts and many other
parts of the machine are hot directly
after the engine is stopped. Touching
these parts will cause burns.
Inspection
1. Open the rear door.
2. Remove the bolts (a) and open the radiator
(b).
3. Press at the center of the fan pulley (2)
and alternator pulley (3) and check the
tension (about 10 kg or 22 lb.).
The slack (A) should be about 10 mm (0.4
in.).
4. Inspect the fan belt (4) and replace it if:
¡there are cuts or cracks.
17. Start the engine, run it at low idle for about
3 minutes, then stop it.
18. After about 20 minutes, inspect the oil level.
L3G029
10mm
2
4
3
A
(0.4in.)
a
b
T9G006
To Next Page
