Chapter 3 - Setup 35
© 2018 Geist
GM1196 R-Series v5 Instruction Manual
Sensors
Overview
The Sensors Overview page displays the PDU's data. R-Series PDUs measure power,
voltage, current and energy. Readings on the Overview page are provided in real-time for
all of the unit's measurements.

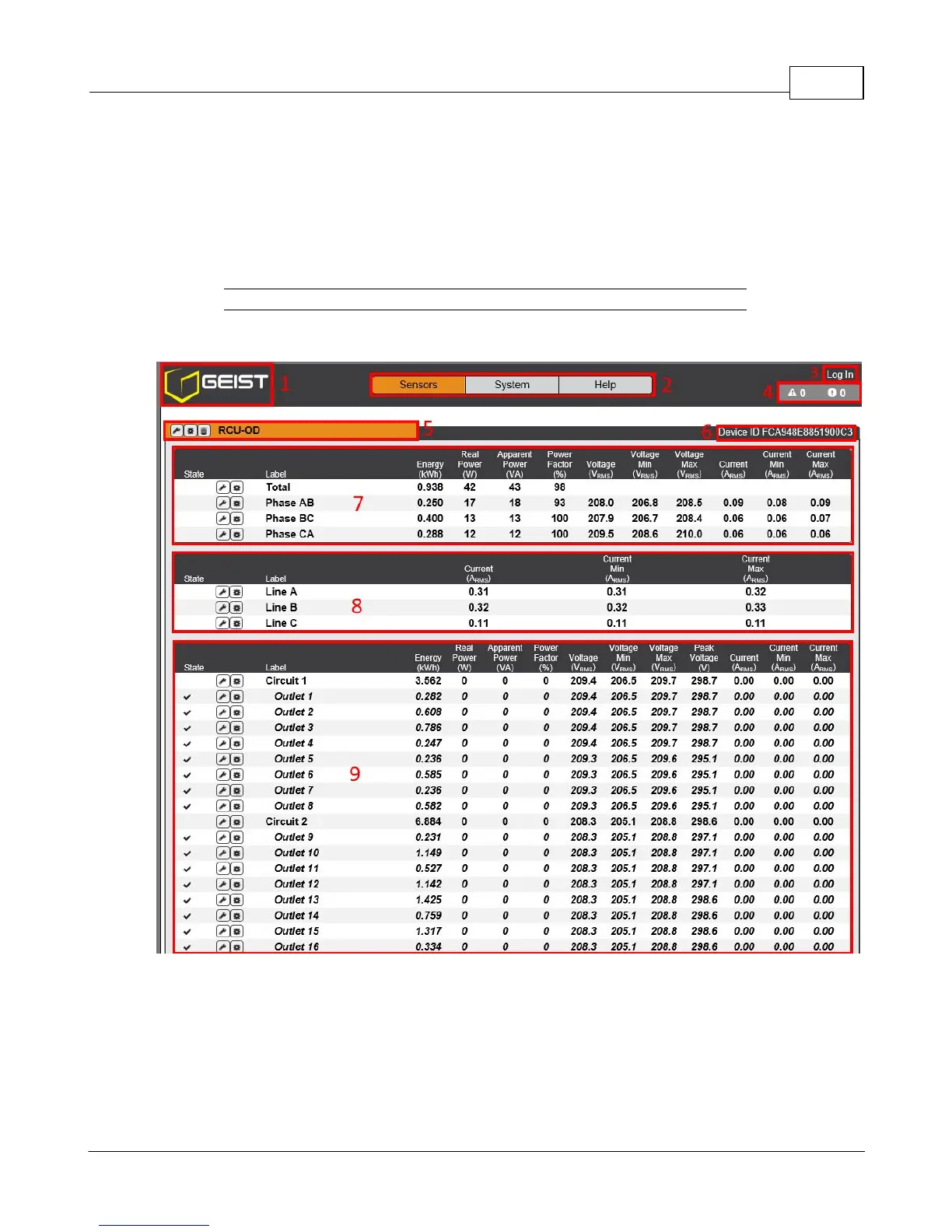

Figure 3-2 RCU-OD Sensor Page
1. Geist Logo
· Clicking on this logo from any page will reload the Sensor Overview page.
