4
degree Mechanical angle
5
—— Sampling value of pedal voltage
6
0.001 motor/machine head run ratio
7
hour Motor total run time
8
—— Sampling value of potentiometer at machine head
3 0 - 7
—— History Error Code Recorder 8

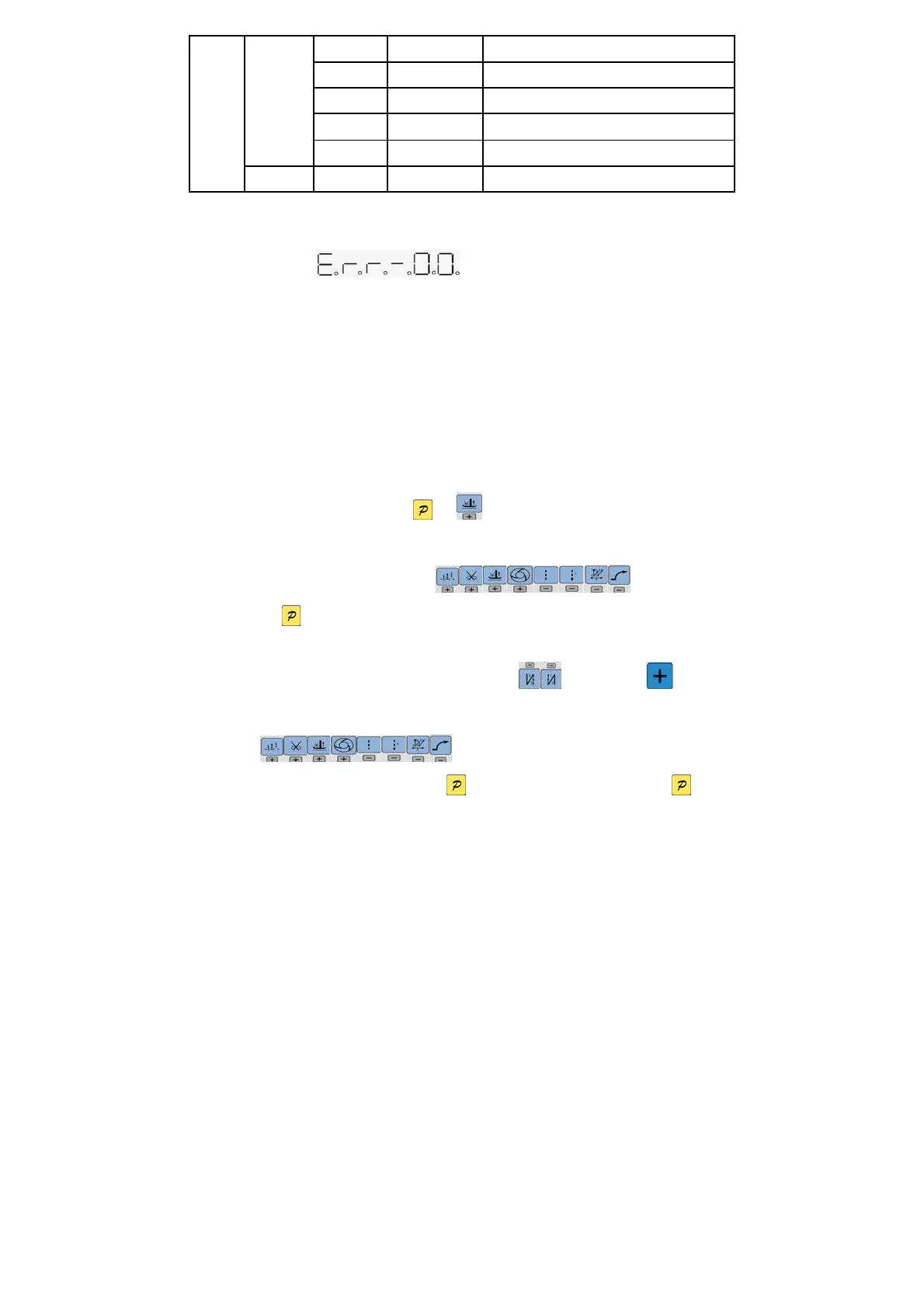

2.6 Wrong warning mode
If the HMI detects something wrong from controller, it will jump automatically to warning mode, and
show error code see . During wrong warning mode, the user can set
technician parameter change, administrator parameter and HMI parameter self-change or monitor mode.
Exit these modes not back to idle but back to wrong warning mode. It will return normal status after fixing
error and resetting power.
2.7 The external panel insert mode
When the external HMI is inserted, this HMI will stop work and the digital tube and all LED are lit.
When the external panel is pulled out, after about 2 seconds, the panel restores to work.
3 Control system restores storage parameter
3.1 Restore storage parameter for factory of control
Step 1: Under operator mode, press and keys, LCD PD-0000; user require to type the
passport.
Step 2: The password is entered using （6-13）keys, then
press key. If the password is correct, enter into the technician mode, or return to the
operator mode.
Step 3: Change administrator parameters index to【62】by （4、5）keys and keys under
technician mode. Restore storage parameter for factory of control can be changed by
（6-13）keys, usually there are four valid bit.
Step 4: the parameter confirms correct, press key until the LED start flashing, release key, HMI
and the whole system restore storage parameter.
