Unpacking and Inspection
Installation Guidelines for Air-Cooled Generators 9
3. The lid of the generator enclosure is locked. Open the side door compartment and carefully cut the cable strap to
release the keys from the circuit breaker switch. See Figure 2-3.

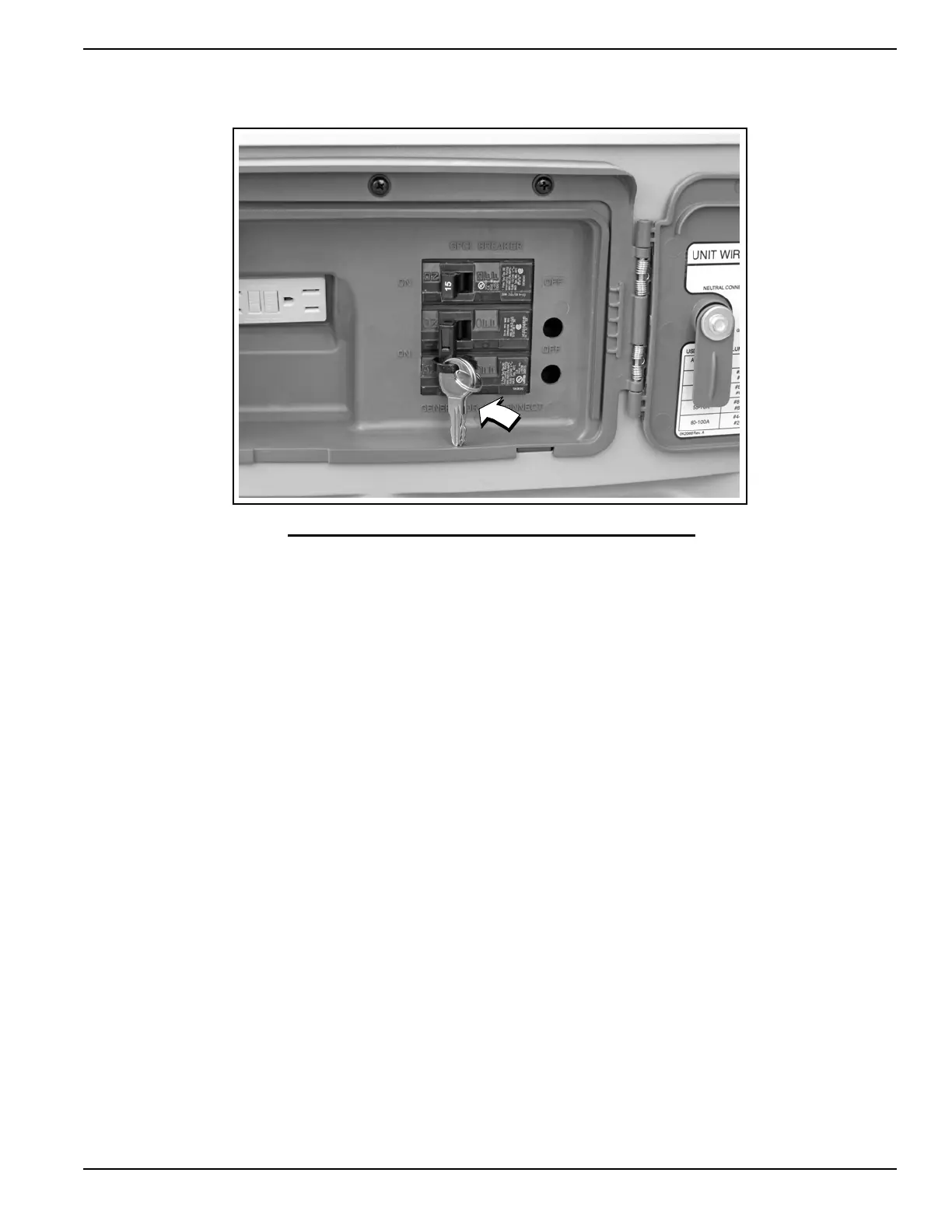

Figure 2-3. Open Side Door Compartment to Obtain Keys
4. The lid is secured by two locks, one on each side of the enclosure. For best results, press down on the lid directly
above the side lock, and while holding the lid down, use key to unlock the latch. Repeat step on opposite side of
enclosure.
NOTE: The lid may appear stuck if pressure is not applied as described. Always verify that the side locks are
unlocked before pulling up on lid.
5. Raise lid.
6. Lift front access panel straight up to disengage side hooks, and then outward away from unit.
7. Perform a thorough visual inspection for any hidden damage. Contact the freight carrier if any damage is evident.
8. Remove and inventory loose parts. See Subsection 2.4 —Parts Shipped Loose.
