Unpacking and Inspection
8 Installation Guidelines For 60 Hz EcoGen™ Generators
IMPORTANT NOTE: DO NOT perform next step until
generator has been transported to installation site.
4. See Figure 2-3. Remove bolts and pallet brackets
(A). Exercise caution when removing generator.
Dragging it off pallet will damage base. The unit
must be lifted from wooden pallet to remove.
NOTE: Bolts and pallet brackets are provided only for
shipping purposes and can be discarded after removal.

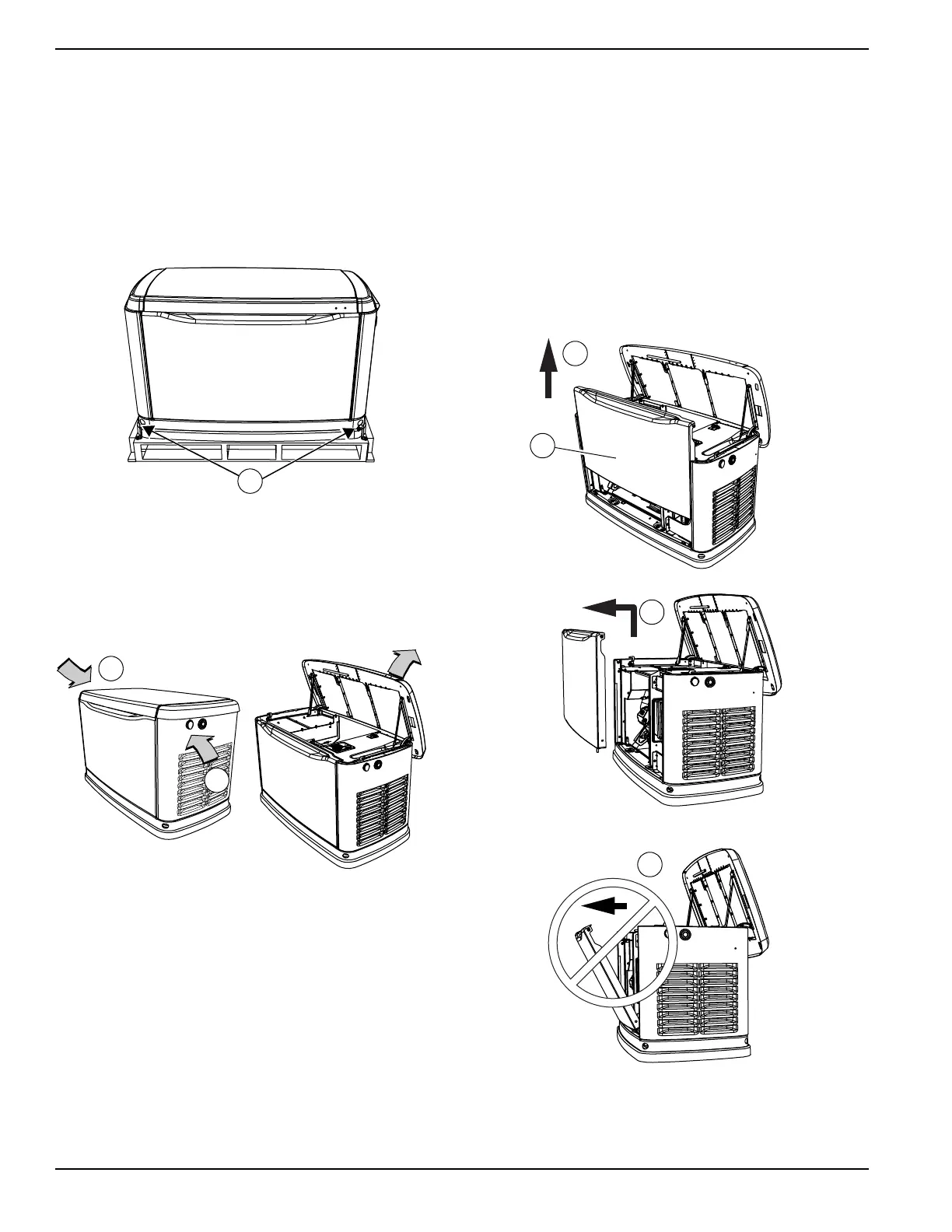

Figure 2-3. Pallet Bracket Locations
Opening the Lid
1. Use keys to open generator lid.
2. See Figure 2-4. Two locks (A) secure lid; one on
each side. Press down on lid above side lock, and
unlock latch to correctly open lid.
Figure 2-4. Opening the Lid
3. Repeat for other side. Lid may appear stuck if pres-
sure is not applied from the top.
NOTE: Always verify side locks are unlocked before
attempting to lift lid.
Enclosure Panel Removal
Generator installation requires removal of front panel and
intake side panel. Remove these panels when neces-
sary. Proceed as follows to remove the panels.
Remove Front Access Panel
See Figure 2-5. Remove front access panel (A) by lifting
straight up and out once lid is open.
NOTE: Always lift front access panel straight up before
pulling away from enclosure (B and C). Do not pull panel
away from the enclosure before lifting up (D).
Figure 2-5. Remove Front Access Panel
