Generator Placement
20 Installation Guidelines For 60 Hz EcoGen™ Generators
Base Plug Installation (If Applicable)
Proceed as follows to install base plugs:
1. Locate the four base plugs supplied with the loose
parts. (See Parts Shipped Loose.)
2. Locate the four holes in the corners of the
generator base.
3. See Figure 4-4. Install base plugs into generator
base.

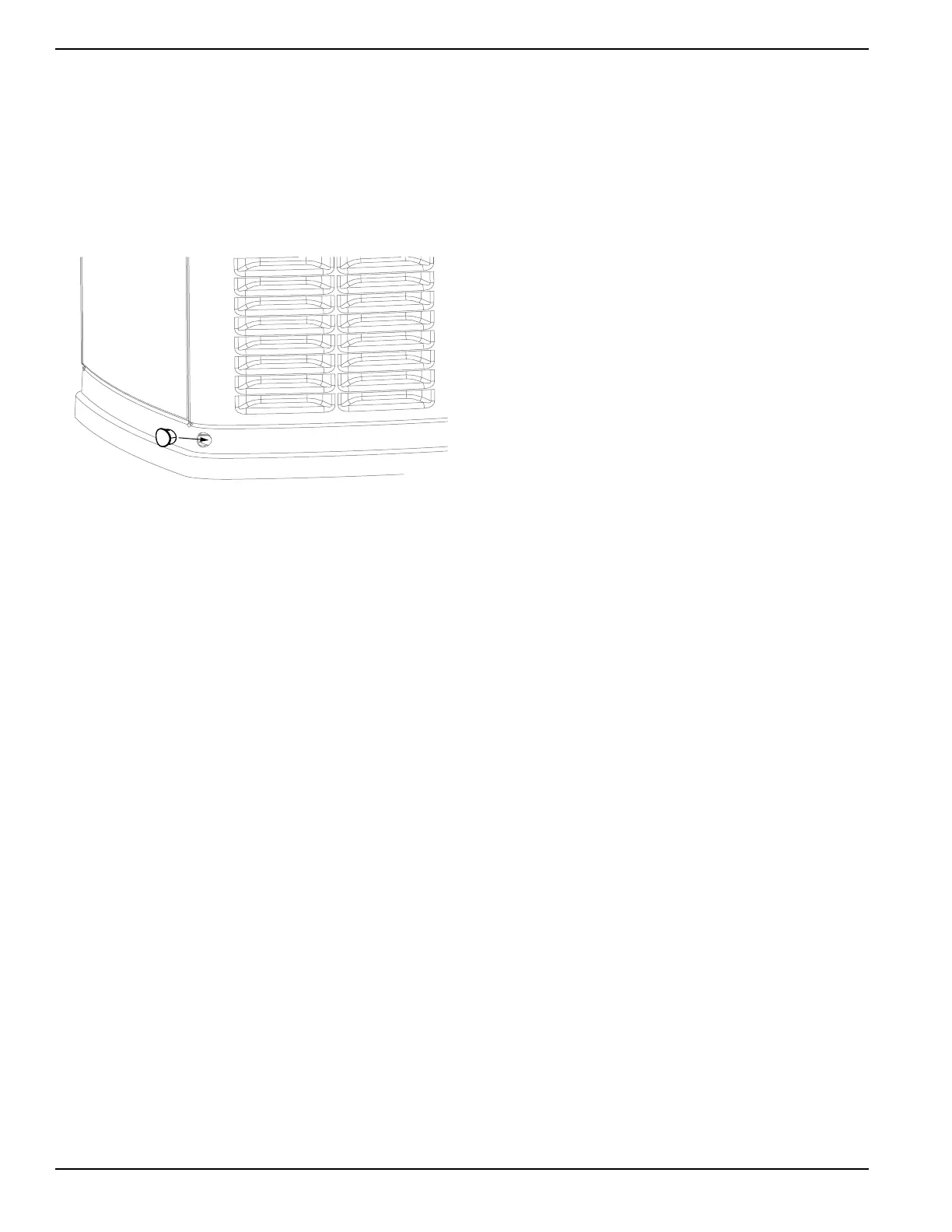

Figure 4-4. Installing Base Plugs
