Unpacking and Inspection
10 Installation Guidelines For 60 Hz EcoGen™ Generators
Generator Main Line Circuit Breaker
See Figure 2-9. The 2-pole main line circuit breaker
(MLCB) (generator disconnect) (A) is rated according to
relevant specifications.

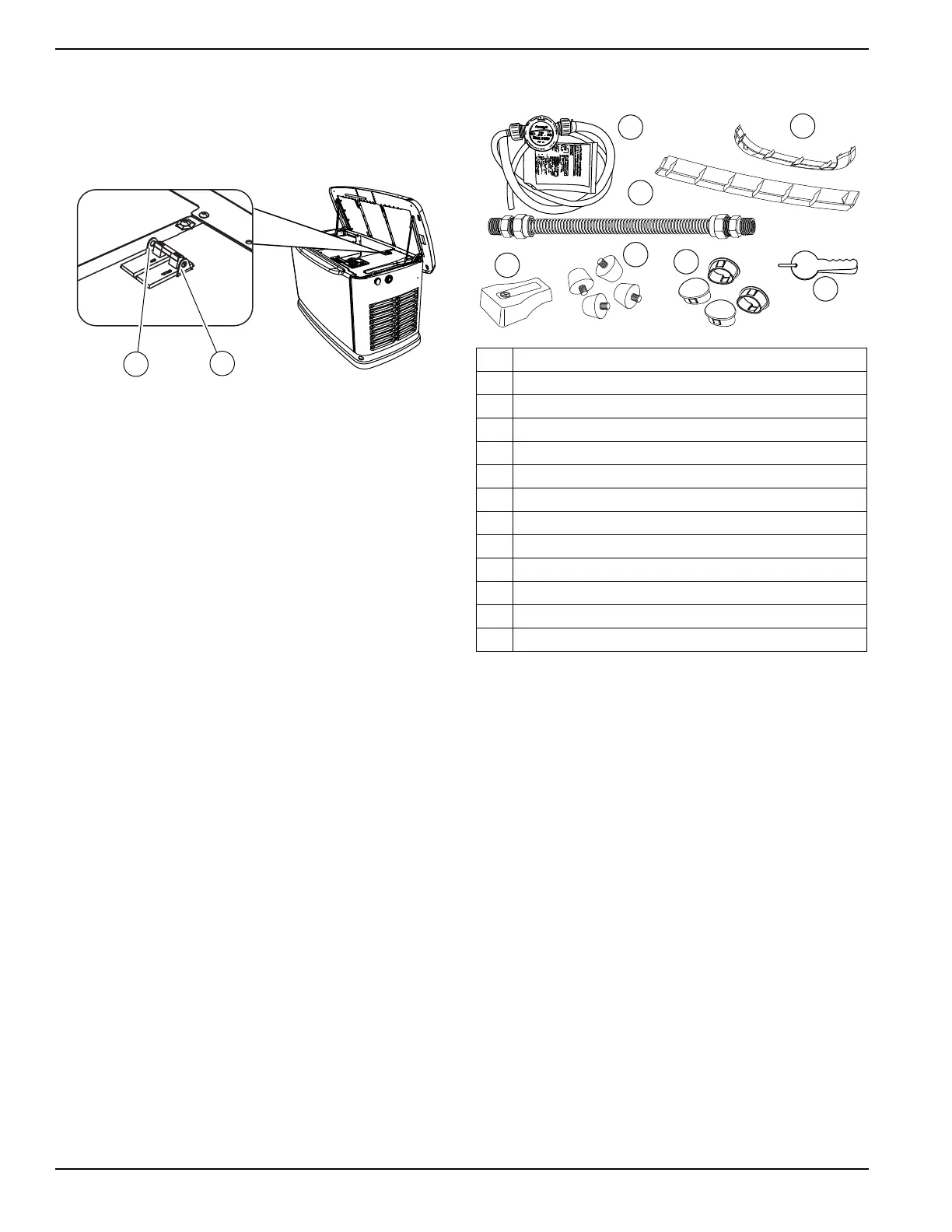

Figure 2-9. Generator Main Line Circuit Breaker
(MLCB)
The generator MLCB (generator disconnect) can be
locked in OFF (OPEN) position for security during main-
tenance or transfer switch service. Use an appropriately-
sized padlock (not included) with a shackle long enough
to pass through both lock tabs (B).
NOTE: DO NOT leave generator MLCB (generator dis-
connect) locked in the OFF (OPEN) position during nor-
mal generator operation. Leaving generator MLCB
(generator disconnect) in the OFF (OPEN) position will
prevent generator from powering structure during a
power outage when placed in AUTO mode.
Parts Shipped Loose
Figure 2-10. Parts Shipped Loose
A Keys
B Flexible fuel line
C Battery terminal cap
D Rubber mounts
E Fascia (if applicable)
F Oil Drain Pump Kit
G Base plugs (if applicable)
H Decal—Service entrance warning (not shown)
J Decal—Through conductors warning (not shown)
K Decal—Service disconnect (not shown)
L Owner’s and Installation manuals (not shown)
M Wi-Fi manual (not shown)
N Wi-Fi Quick Start Guide (not shown)
To Next Page
