Unpacking and Inspection
8 Installation Guidelines For 60 Hz EcoGen™ Generators
Figure 2-3. Keys As Shipped
The lid will be locked. A set of keys is attached to the
intake side of the generator. See Figure 2-3.
1. Cut the plastic bag to remove the keys.
2. Use the keys to open the lid of the generator.
NOTE: The enclosed keys provided with this unit are
intended for service personnel use only.
3. Two locks secure the lid; one on each side (A in
Figure 2-4). Press down on the lid above the side
lock and unlock the latch to properly open the lid.
4. Repeat for the other side. The lid may appear stuck
if pressure is not applied from the top.
NOTE: Always verify that the side locks are unlocked
before attempting to lift the lid.
5. Remove the front access panel by lifting it straight
up and out once the lid is open.
NOTE: Always lift the front access panel straight up
before pulling away from enclosure (B and C in Figure 2-
4). Do not pull the panel away from the enclosure before
lifting up (D in Figure 2-4).

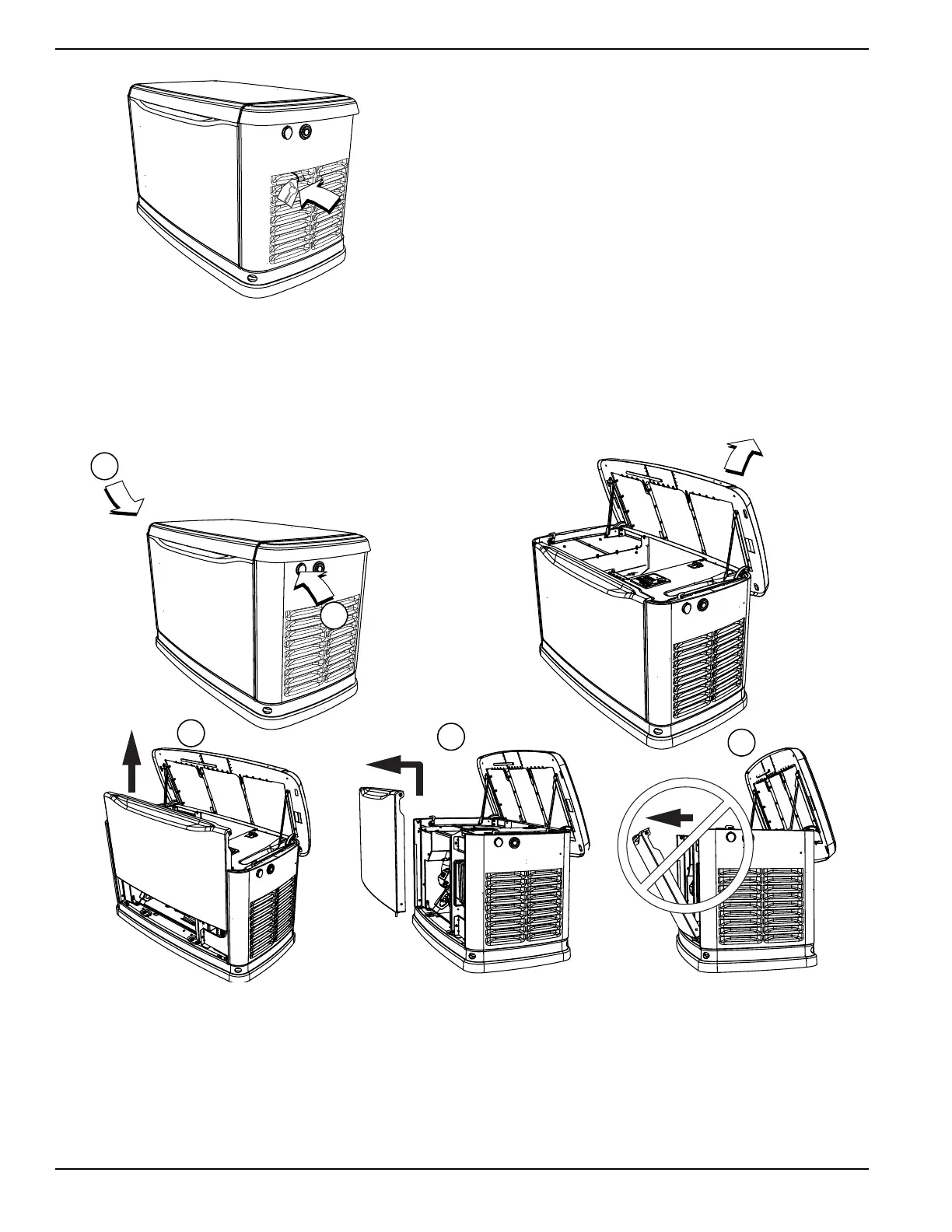

Figure 2-4. Side Lock Location and Front Panel Removal
