Unpacking and Inspection
Installation Guidelines For 60 Hz EcoGen™ Generators 9
Intake Side Panel Removal
See Figure 2-5. The intake side panel (A) must be
removed to access the battery compartment, fuel
regulator, and sediment trap.
1. Raise the lid and remove the front panel.
2. Use an Allen wrench to remove two mounting
screws (B) and the L-bracket screw (C).
3. Lift the intake panel up and away from the
generator.
NOTE: Always lift the intake side panel straight up
before pulling away from enclosure. Do not pull the panel
away from the enclosure before lifting up (D).

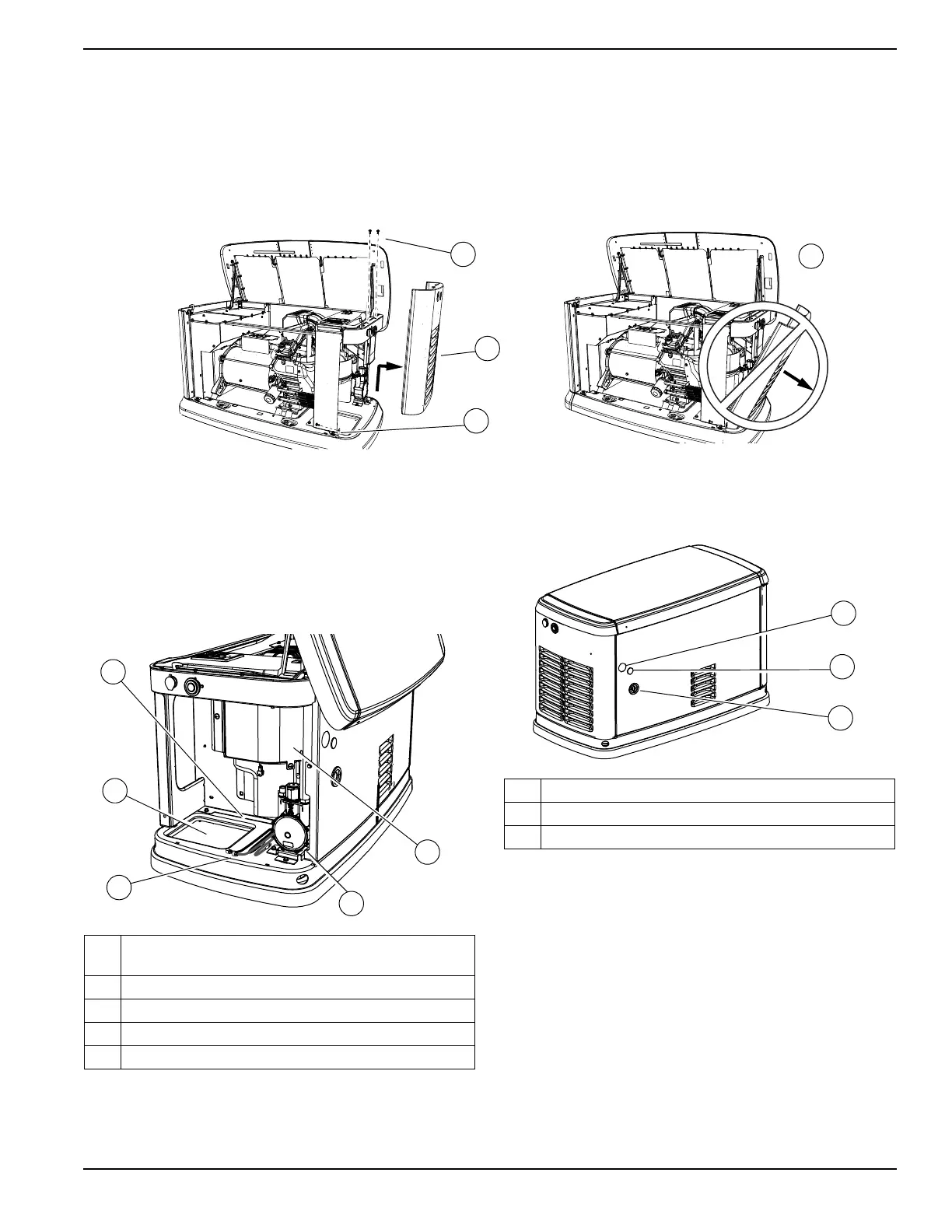

Figure 2-5. Intake Side Panel Removal
1. Perform a visual inspection for any hidden freight
damage. Contact the freight carrier if damage is
present.
2. See Figure 2-6 and Figure 2-7 for customer
connections and loose parts location. Figure 2-9
illustrates parts shipped loose.
Figure 2-6. Customer Connection Area and Loose
Parts Location
Rear Connections
Figure 2-7. Rear Connections
A Customer electrical connection area
(behind the access panel)
B Fuel regulator with sediment trap
C Battery compartment (battery not supplied)
D Positive (+) and negative (-) battery cables
E Location of “Loose Shipped Parts”
A Main AC/Control wiring hole for 1-1/4 in conduit
B Main AC/Control wiring hole for 3/4 in conduit
C Fuel Connection hole
