48 Installation Guidelines For 60 Hz EcoGen™ Generators

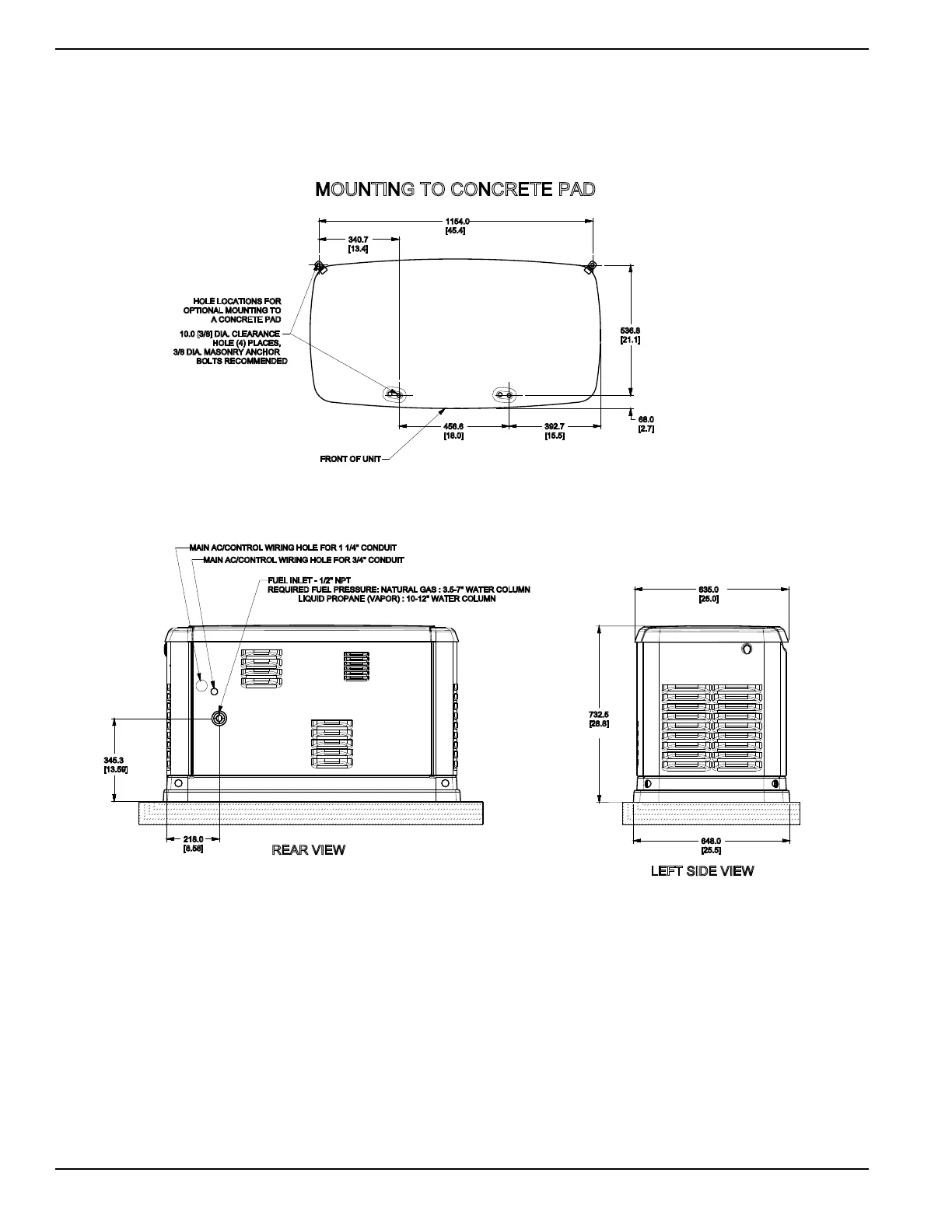

Installation Drawing (10000002487—2 of 2)
**ALL DIMENSIONS IN:
MILLIMETERS [INCHES]
345.3
[13.59]
218.0
[8.58]
635.0
[25.0]
732.5
[28.8]
648.0
[25.5]
REAR VIEW
FUEL INLET - 1/2" NPT
REQUIRED FUEL PRESSURE: NATURAL GAS : 3.5-7" WATER COLUMN
LIQUID PROPANE (VAPOR) : 10-12" WATER COLUMN
MAIN AC/CONTROL WIRING HOLE FOR 3/4" CONDUIT
MAIN AC/CONTROL WIRING HOLE FOR 1 1/4" CONDUIT
LEFT SIDE VIEW
456.6
[18.0]
1154.0
[45.4]
536.8
[21.1]
392.7
[15.5]
68.0
[2.7]
340.7
[13.4]
MOUNTING TO CONCRETE PAD
10.0 [3/8] DIA. CLEARANCE
HOLE (4) PLACES,
3/8 DIA. MASONRY ANCHOR
BOLTS RECOMMENDED
A CONCRETE PAD
OPTIONAL MOUNTING TO
HOLE LOCATIONS FOR
FRONT OF UNIT
