Generator Placement
16 Installation Guidelines For 60 Hz EcoGen™ Generators
Fascia Installation (If Applicable)
• Locate the four threaded black rubber bumpers
supplied with the loose parts.
• Remove the four rubber mounts from the bag and
screw them into threaded holes located inside the
end pieces of the fascia (two each) opposite one
another (A).
• Once the mounts are installed, snap one of the end
pieces into one of the front / rear pieces of fascia.
Repeat this action with the other two remaining
pieces of fascia.
NOTE: Do not assemble all four pieces together at this
point (B).
• Place both assemblies at the base of the generator
and fit the rubber mounts into the lifting holes in the
generator base (C).
• Once aligned, snap together the two remaining
connection points.

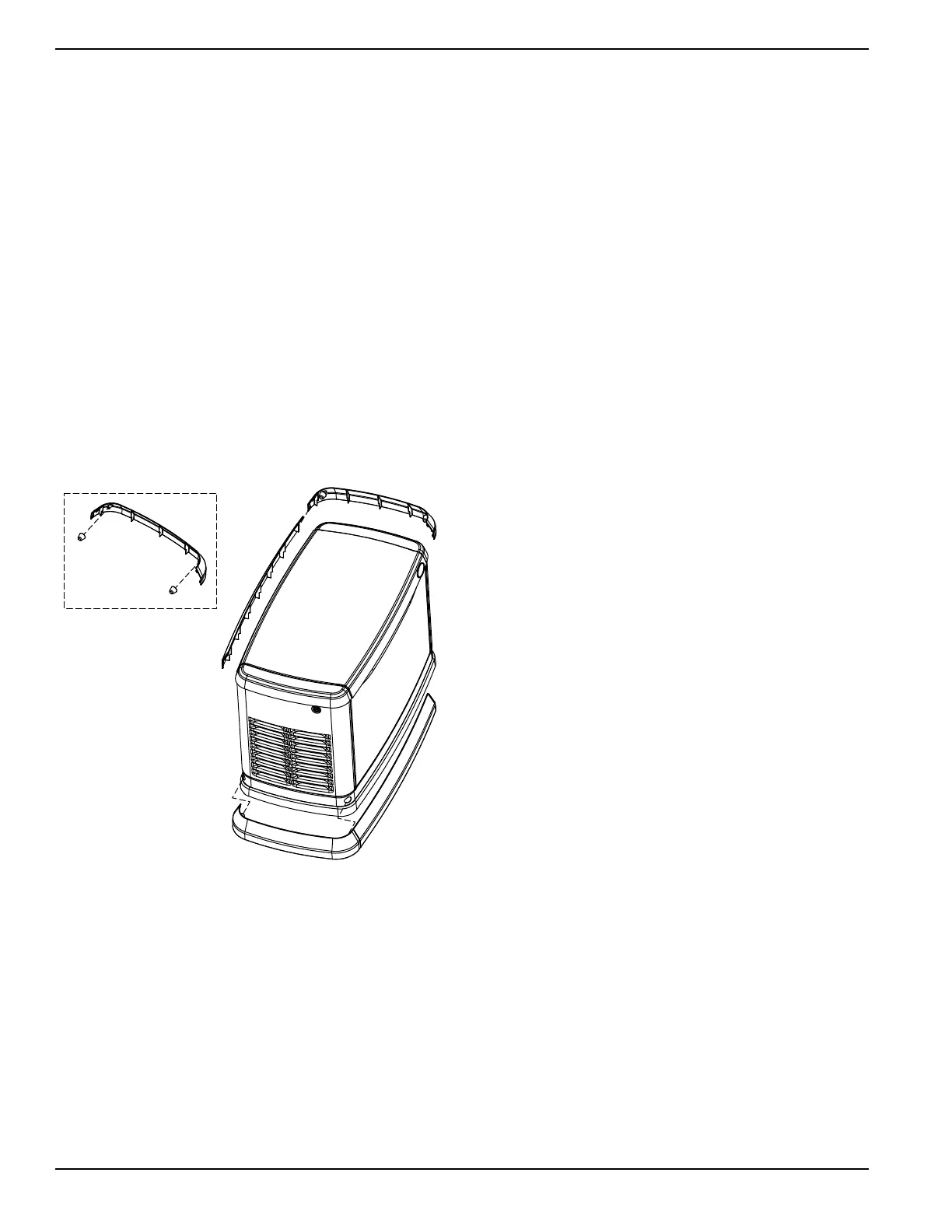

Figure 4-3. Fascia Installation
To Next Page
