Diagrams
Installation Guidelines For 60 Hz EcoGen™ Generators 47
Section 10: Diagrams

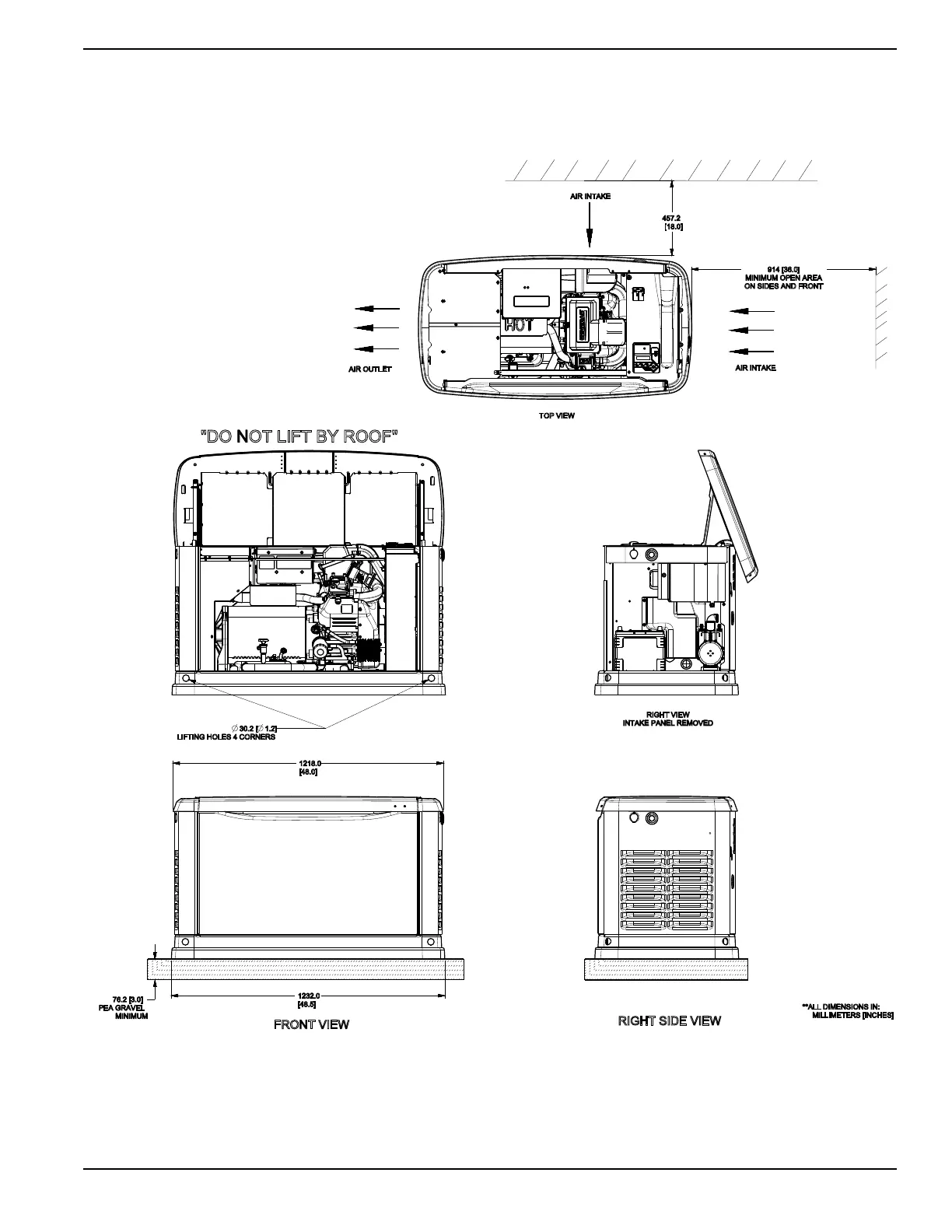

IInstallation Drawing (10000002491—1 of 2)
914 [36.0]
MINIMUM OPEN AREA
ON SIDES AND FRONT
457.2
[18.0]
1218.0
[48.0]
1232.0
[48.5]
76.2 [3.0]
PEA GRAVEL
MINIMUM
"DO NOT LIFT BY ROOF"
**ALL DIMENSIONS IN:
MILLIMETERS [INCHES]
AIR INTAKE
AIR INTAKE
FRONT VIEW
RIGHT SIDE VIEW
AIR OUTLET
TOP VIEW
30.2 [ 1.2]
LIFTING HOLES 4 CORNERS
RIGHT VIEW
INTAKE PANEL REMOVED
