Fuel Conversion / Gas Connections
22 Installation Guidelines For 60 Hz EcoGen™ Generators

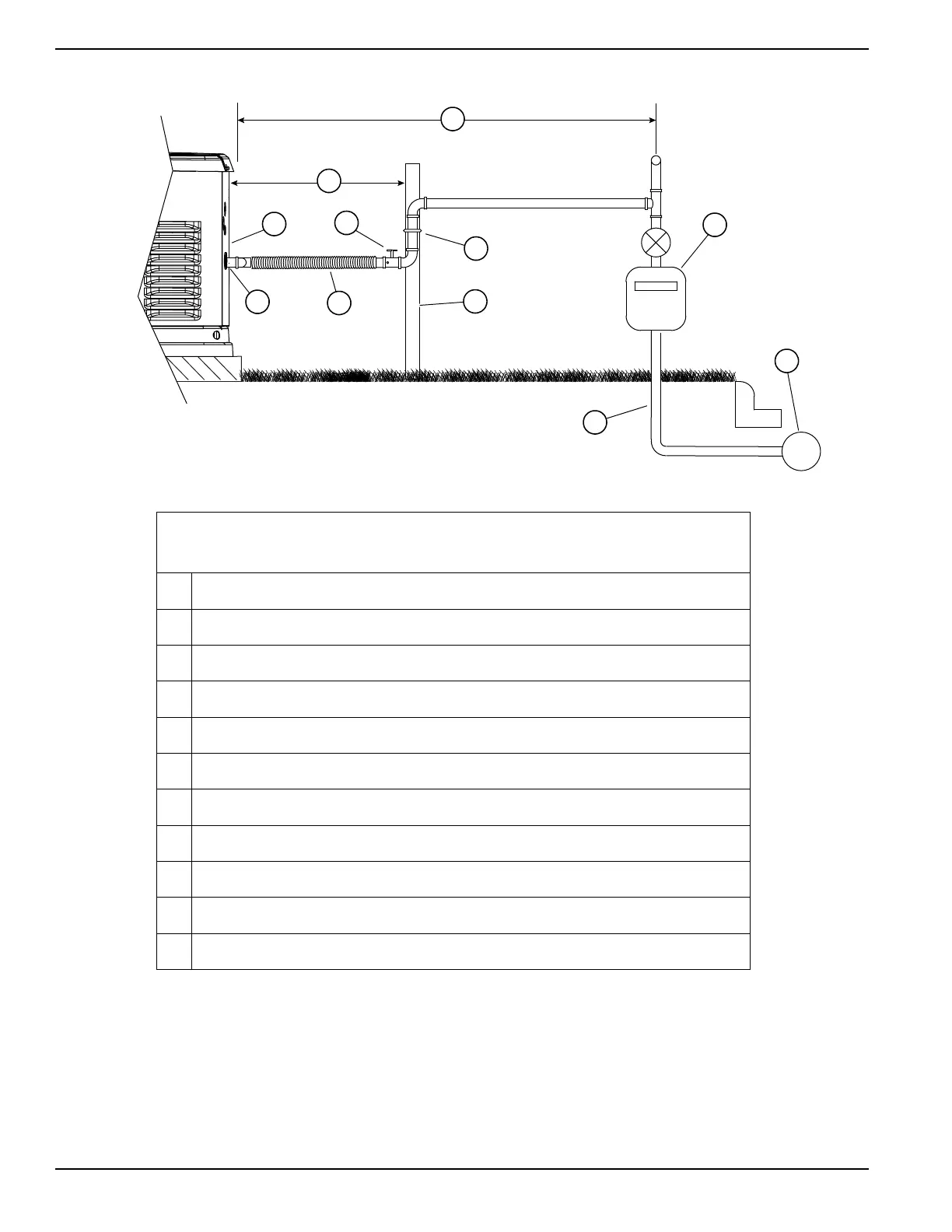

Natural Gas Vapor Installation (typical)
Figure 5-6. Natural Gas Vapor Installation (typical)
NG BTU = ft
3
/h X 1000
Megajoules = m
3
/h X 37.26
A BTU and pressure decal
B Minimum distance from rear obstruction—see Site Selection
C Manual shutoff valve (pressure port optional)
D Pipe nipple (field supplied)
E Flexible fuel line
F Check distance with gas provider
GClamp
H Reinforcing rod
J Size gas meter for 100% generator load plus all appliance loads
K For underground installations, verify piping system for code compliance
LGas main
F
B
C
A
D
E
H
G
K
J
L
