Section 2: Unpacking and Inspection
General
NOTE: Carefully inspect the contents for damage after
unpacking. It is advised to unpack and inspect the unit
immediately upon delivery to detect any damage that
may have occurred in transit. Any claims for shipping
damage need to be filed as soon as possible with the
freight carrier. This is especially important if the generator
will not be installed for a period of time.
• This standby generator set is ready for installation
with a factory supplied and pre-mounted base pad
and has a weather protective enclosure that is
intended for outdoor installation only.
• If any loss or damage is noted at time of delivery,
have the person(s) making the delivery note all
damage on the freight bill or affix their signature
under the consignor’s memo of loss or damage.
• If a loss or damage is noted after delivery, separate
the damaged materials and contact the carrier for
claim procedures.
• “Concealed damage” is understood to mean
damage to the contents of a package that is not
evident at the time of delivery, but is discovered
later.
Required Tools
• General SAE and Metric hand tools
– Wrenches
– Sockets
– Screwdrivers
• Standard electrician’s hand tools
– Drill and bits for mounting and routing conduits
• 4 mm Allen wrench (for access to customer
connections)
• 3/16 in Allen wrench (test port on fuel regulator)
• Manometer (for fuel pressure checks)
• Meter capable of measuring AC/DC voltage and
frequency
• Torque wrenches
Unpacking
1. Remove cardboard carton.
2. Remove the wood frame.

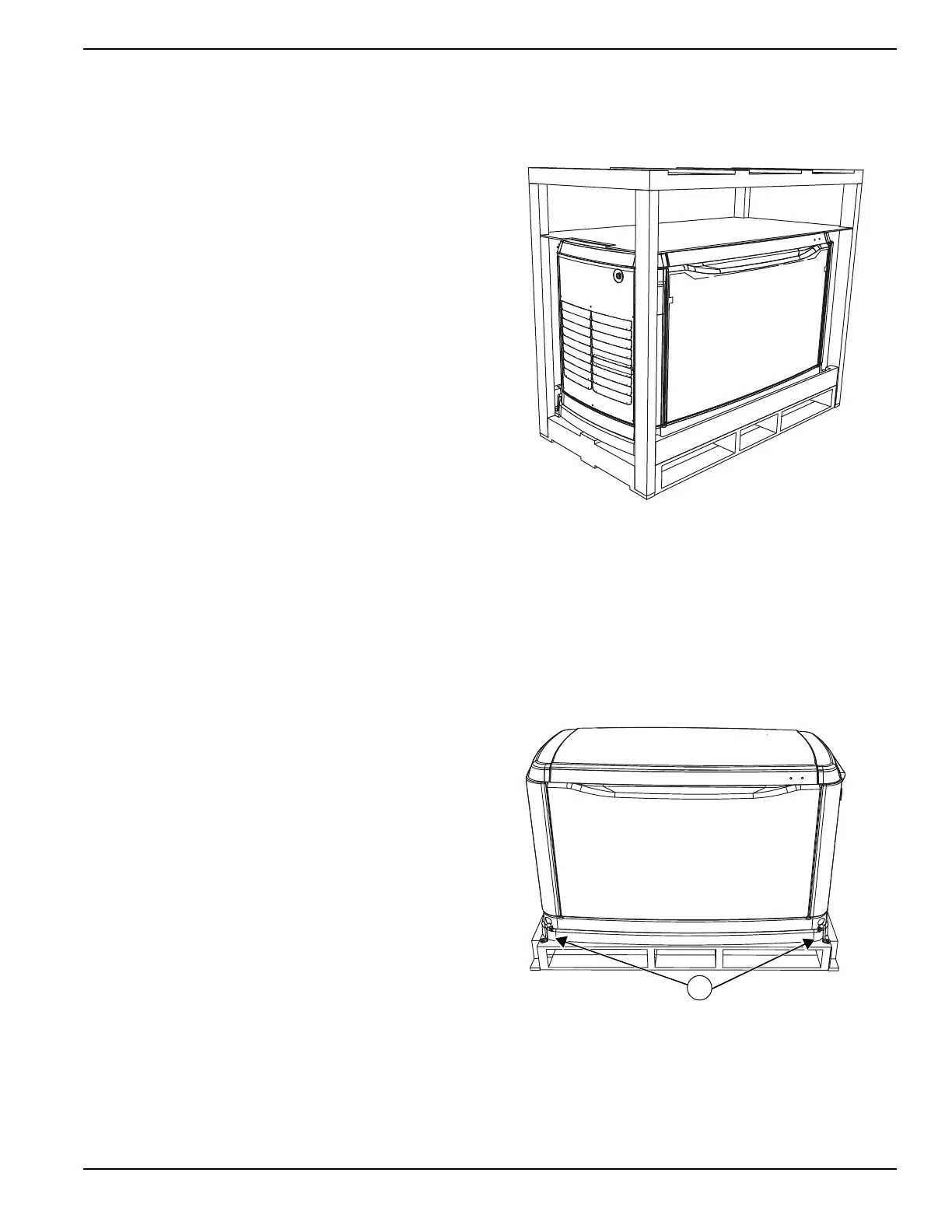

Figure 2-1. Crated Generator
3. See Figure 2-2. Remove bolts and pallet brackets
(A). Exercise caution when removing the
generator. Dragging it off the pallet will damage the
base. The generator must be lifted from the
wooden pallet to remove.
Bolts and pallet brackets are provided only for
shipping purposes and can be discarded after
removal.
Figure 2-2. Generator on Pallet
To Next Page
