Unpacking and Inspection
10 Installation Guidelines For 60 Hz EcoGen™ Generators
Generator Main Line Circuit
Breaker
This is a 2-pole circuit breaker (generator disconnect)
rated according to relevant specifications. See “A” in
Figure 2-8.

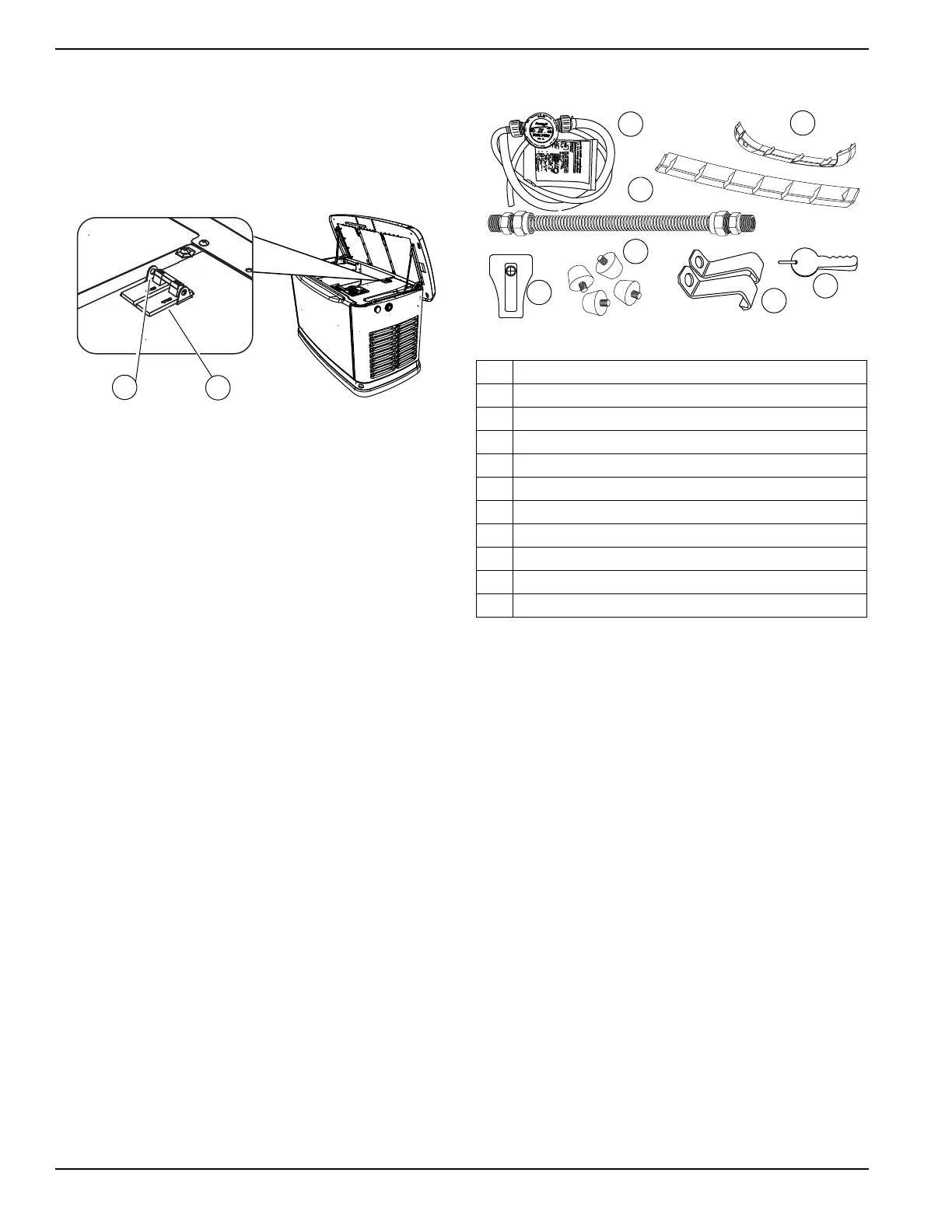

Figure 2-8. Generator Main Line Circuit Breaker
The breaker can be locked in the OFF (OPEN) position
for security during maintenance or when servicing any
connected loads. Use an appropriately-sized padlock
(not included) with a shackle long enough to pass
through both lock tabs (B).
NOTE: DO NOT leave the breaker disconnect locked in
the open (OFF) position during normal generator
operation. Leaving the breaker in the open position will
prevent the transfer of power to the generator from the
transfer equipment during normal generator operation.
Parts Shipped Loose
Figure 2-9. Parts Shipped Loose
A Keys
B Flexible fuel line
C Battery terminal cap
D Rubber mounts (only for units that include fascia)
E Fascia (if applicable)
F Rear Mounting Brackets
G Oil Drain Pump Kit
Decal—Service entrance warning (not shown)
Decal—Through conductors warning (not shown)
Decal—Service disconnect (not shown)
Owner’s and Install manual (not shown)
