Section 7 Electrical Data
Diagnostic Repair Manual 91

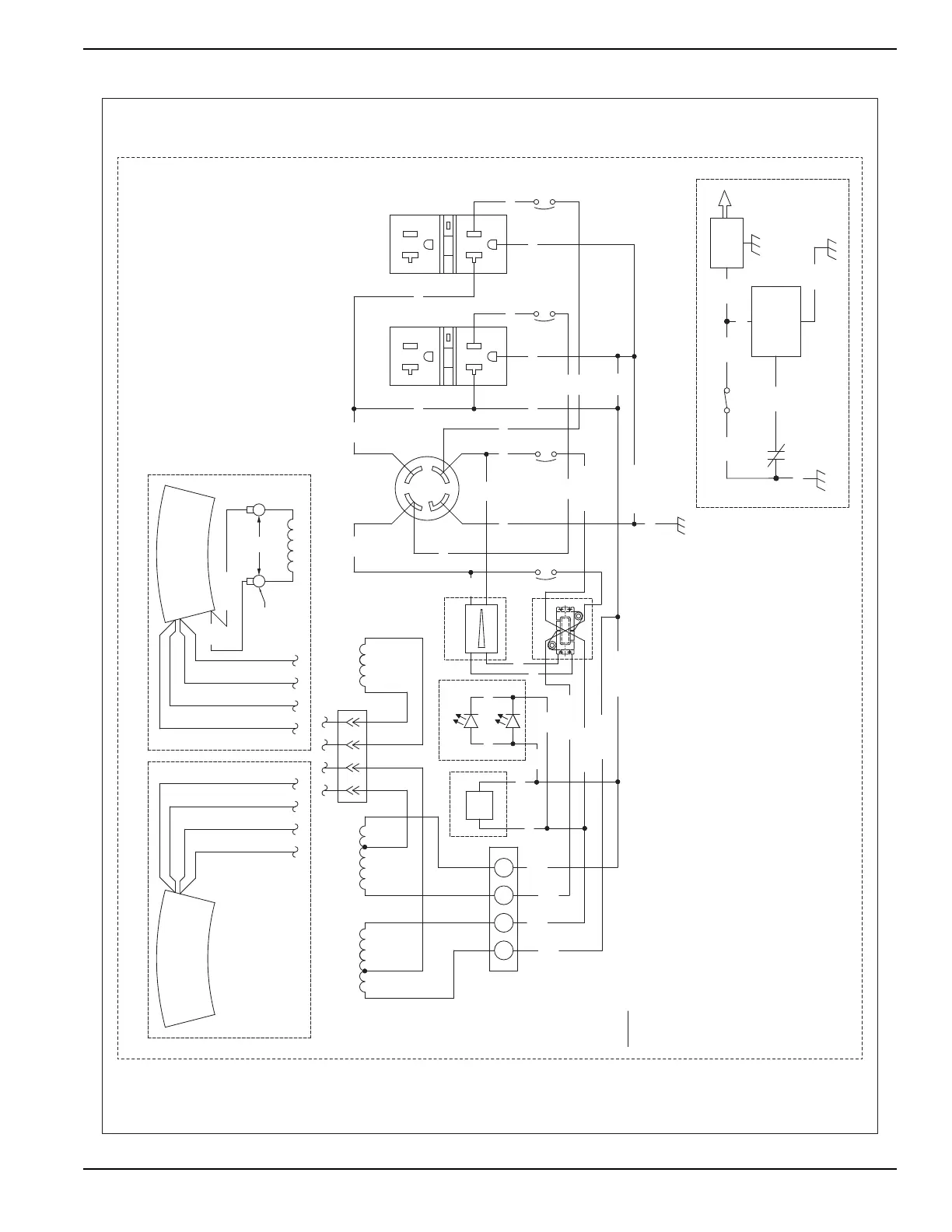

Wiring Diagram and Electrical Schematic, XG6500 Drawing No. 0H2780-F
SCHEMATIC - DIAGRAM
GP/XG5000-GP/XG8000
DRAWING #: 0H2780
REVISION: F
DATE: 8/21/09
TESTRESETTESTRESET
TEST RESET TEST RESET
FOR BRUSH TYPE ALTERNATOR
FOR CAPACITOR EXCITATION TYPE ALTERNATOR
CLOSEST
TO BEARING
LEGEND: AVR - AUTOMATIC VOLTAGE REGULATOR
BA - BRUSH ASSEMBLY
C1 - AVR OR CAP CONNECTOR CAP - CAPACITOR CB 1 - *PUSH BUTTON CIRCUIT BREAKER CB 2 - *PUSH BUTTON CIRCUIT BREAKER CB 3 - 20AMP PUSH BUTTON CIRCUIT BREAKER CB 4 - 20AMP PUSH BUTTON CIRCUIT BREAKER
IM - IGNITION MODULE ICT - IDLE CURRENT TRANSFORMER (IF EQUIPPED)
HM - HOUR METER (IF EQUIPPED) LED - PANEL ILLUMINATION (IF EQUIPPED) LOP - LOW OIL PRESSURE PBAR - POWERBAR LOAD INDICATOR (IF EQUIPPED) RCT A - RECEPTACLE [120/240VAC 30A NEMA L14-30R] RCT B - RECEPTACLE [120VAC 20A GFCI NEMA 5-20R] RCT C - RECEPTACLE [120VAC 20A GFCI NEMA 5-20R]
SP - SPARK PLUG SW1 - RUN-STOP SWITCH
TB - ALTERNATOR TERMINAL BLOCK
* - 5kW AND 5.5kW = 25AMP; 6.5kW, 7.0kW = 30AMP
ROTOR
BA
GRN/YEL
GRN/YEL
RED
LED
RED
CAP AVR
RED(+)
WHT
POWER WINDING
C1
WINDING
EXCITIATION
(WHT)
TB
RED
RED
44(BLK)
33(WHT)
BLK
L1 L2 R2R1
HM
WHT
(WHT)(BLK)33
44
11
22
(RED)
20A
BLK
BLK
RED
PBAR
CB 2
11(RED)
BLK
RED
ICT
22(WHT)
RCT C
120/240V
120V/20A
WHT
30 A
TWISTLOCK
GFCI
WHT
120V/20A
GFCI
WHT
BLK
BLK
RCT A
BLK
RED
CB 1
20A
44(BLK)
RED
WHT
GRN/YEL
BLK
RED
RCT B
BLK
CB 4
GRN/YEL
CB 3
GRN/YEL
WHT
GND
20A
20A
LOP
LOW OIL
WHT
ENGINE WIRING
BLK
SW1
WHT
WHT
IM
SP
BLK
BLK
GRN
MODULE
SHUTDOWN
