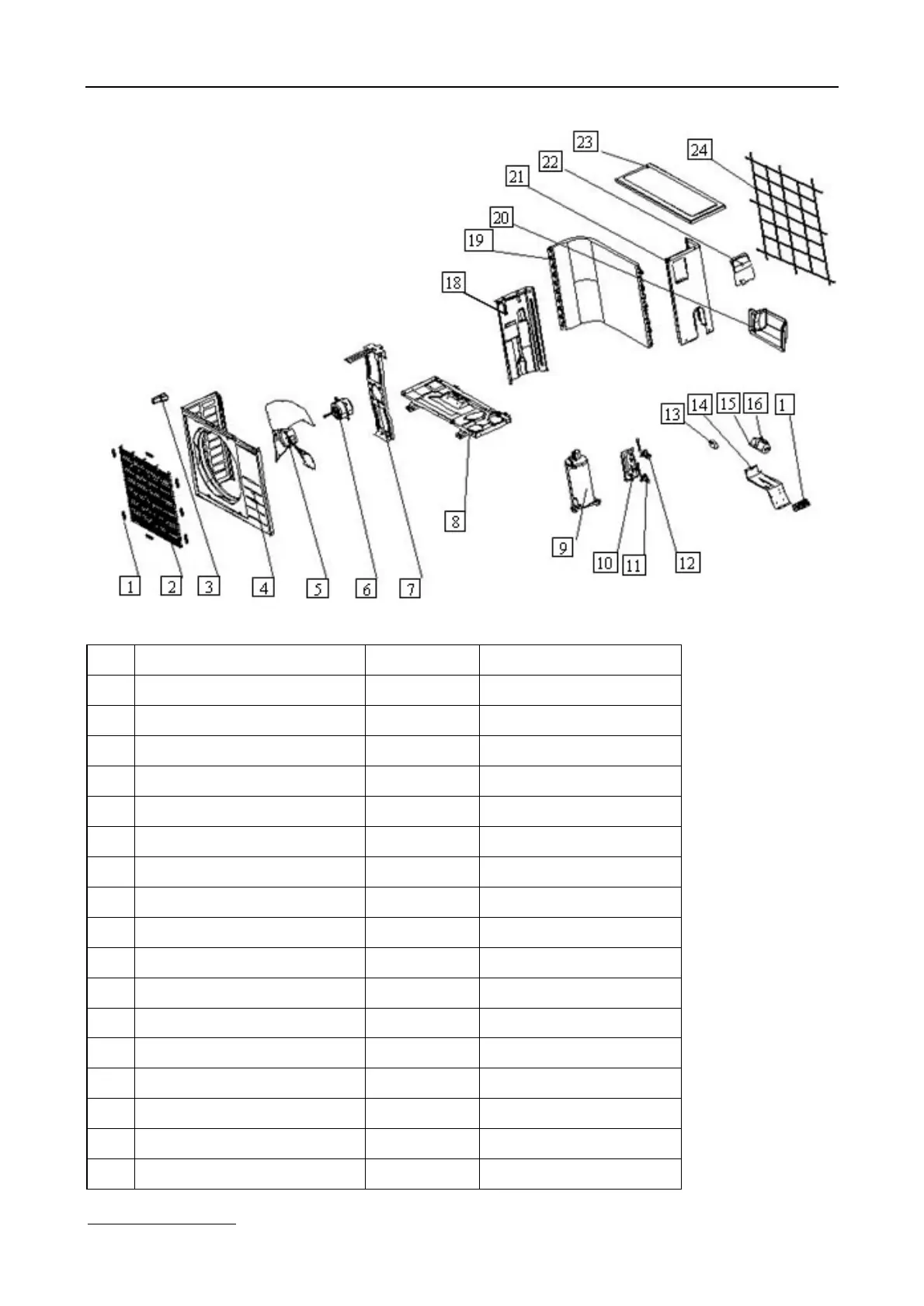

Exploded View Parts for Model GU-S05HR 220--240V,50Hz : Outdoor Unit
No. Part Name Quantity Sale code
1 Clamp for front net 6 10112121801
2 Front net 1 10109121801
3 Small Handle 1 10109121802
4 Front clapboard
1
10107121801
5 Propeller fan 1 10109121804
6 Fan Motor 1 10109121805
7 Holder for fan motor 1 10109121806
8 Chassis 1 10105121802
9 Compressor 1 10105121801
10 Installation plate for valves 1 10309121809
11 Gas pipe valve 1 10309121810
12 Liquid pipe valve 1 10309121811
13 Fan motor capacitor 1 10109121819
14 Installation board for E-parts 1 10109121820
15 Compressor capacitor 1 10105121803
16 Capacitor clamp 1 10109121822
17 Wire joint 1 10109111802
To Next Page
