www.generalclimate.com 47 Wall-Mounted Split Type

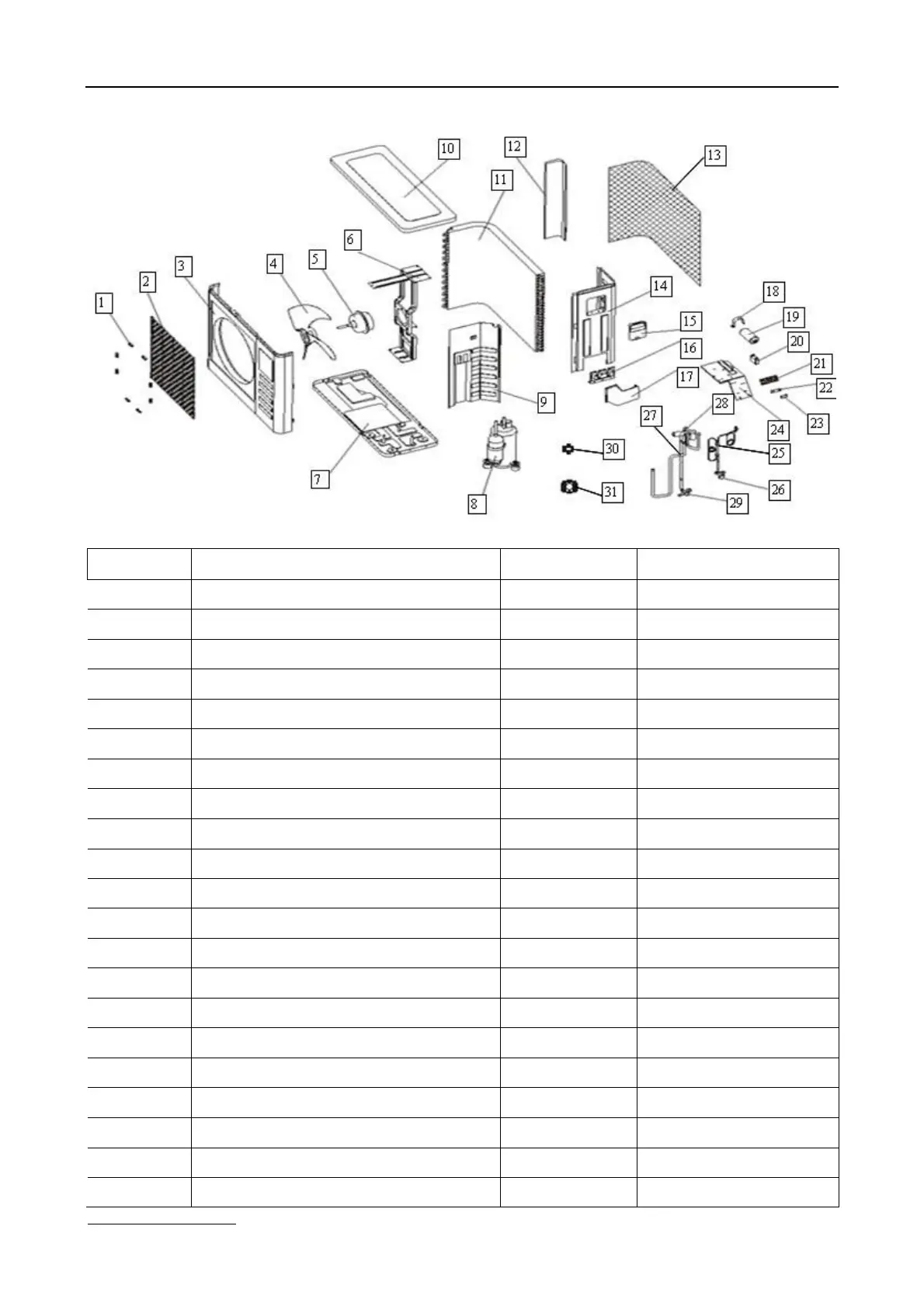

Exploded View Parts for Model GU-S09HR 220-240V~,50Hz :Outdoor Unit
No. Part Name Quantity SALE Code
1 Clamp for front net 6 10112121801
2 Front net 1 10109121801
3 Front clapboard
1
10109113801
4 Propeller fan 1 10109121804
5 Fan Motor 1 20407111802
6 Holder for fan motor 1 10109121806
7 Chassis 1 10107123802
8 Compressor 1 50309121805
9 Separating board 1 13008111803
10 Cover 1 11609121807
11 Condenser 1 11609121801
12 Installation board Left 1 11609121804
13 Rear Net 1 11609121808
14 Right clapboard 1 11607111801
15 Big Handle 1 10109121817
16 Installation plate for valves 1 10309121809
17 Water collector 1 10109121815
18 Capacitor Clamp 1 10109121822
19 Compressor capacitor 1 11812113811
20 Fan motor capacitor 1 10112121815
21 Wire joint 1 10109121823
