22 Washer for wire joint 1 10112121817
23 Wire Clamp 1 10112121816
24 Installation board for E-parts 1 13009111005
25 Low Pressure Valve Ass'y 1 11608121806
26 4-Ways valve 1 10109121812
27 Gas pipe valve 1 10309121810
28 High Pressure Valve Ass'y 1 10309121821
29 Liquid pipe valve 1 10309121811
30 Copper nut, TLM-A01 1 10909121012
31 Copper nut, TLM-B02 1 10909121013

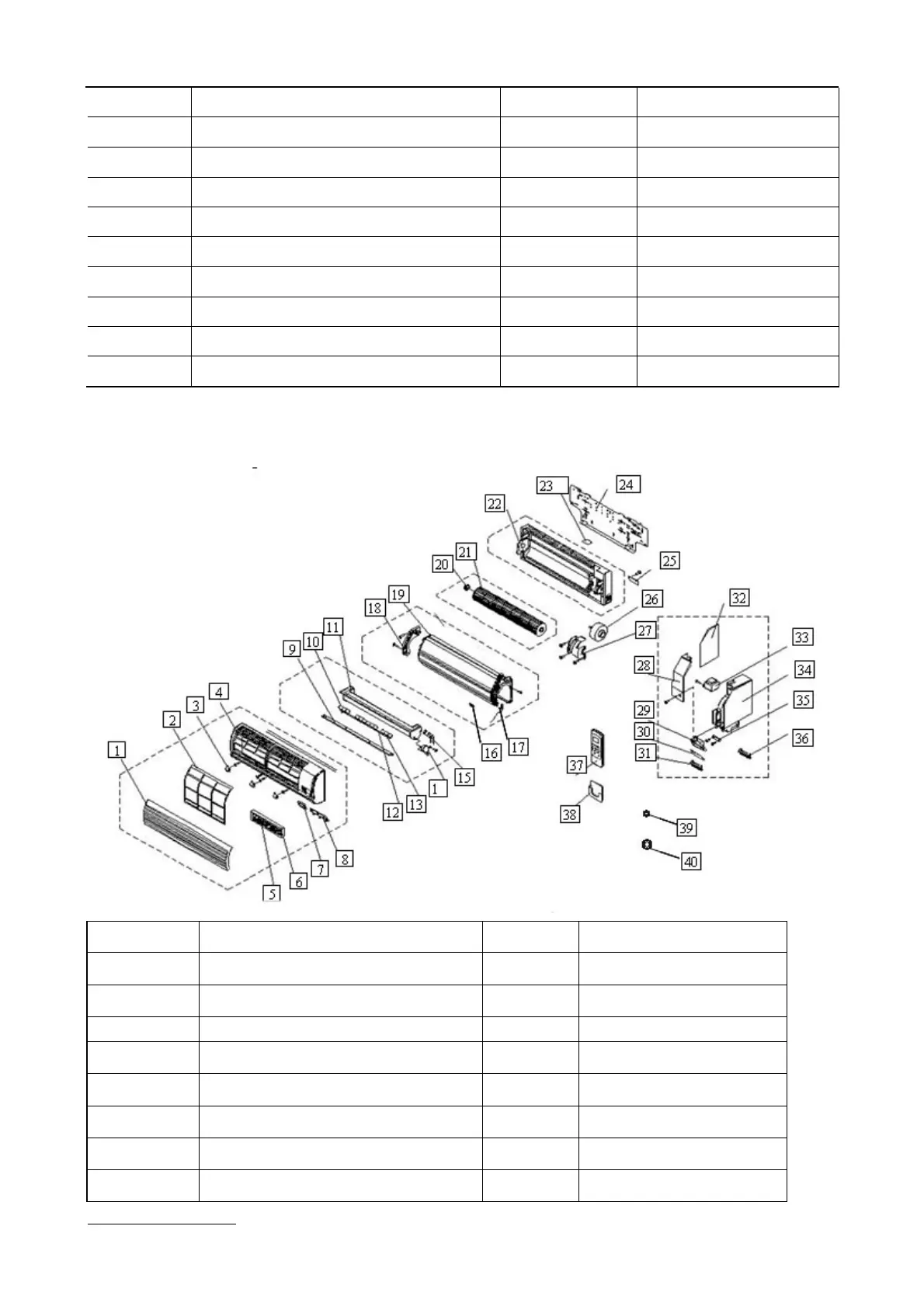

Exploded View Parts for Model : GC-S12HR 220-240V~,50Hz :Indoor Unit
No. Part Name Quantity Sale code
1 Front Panel 1 10309121201
2 Air Filter 2 10309121202
3 Screw cap 3 10309121203
4 Panel frame 1 10309121204
5 Air cleaner 1 10109121226
6 Air cleaner holder 1 10109121225
7 Window for receiver 1 10309121207
8 Indicator for LED 1 10309121208
To Next Page
