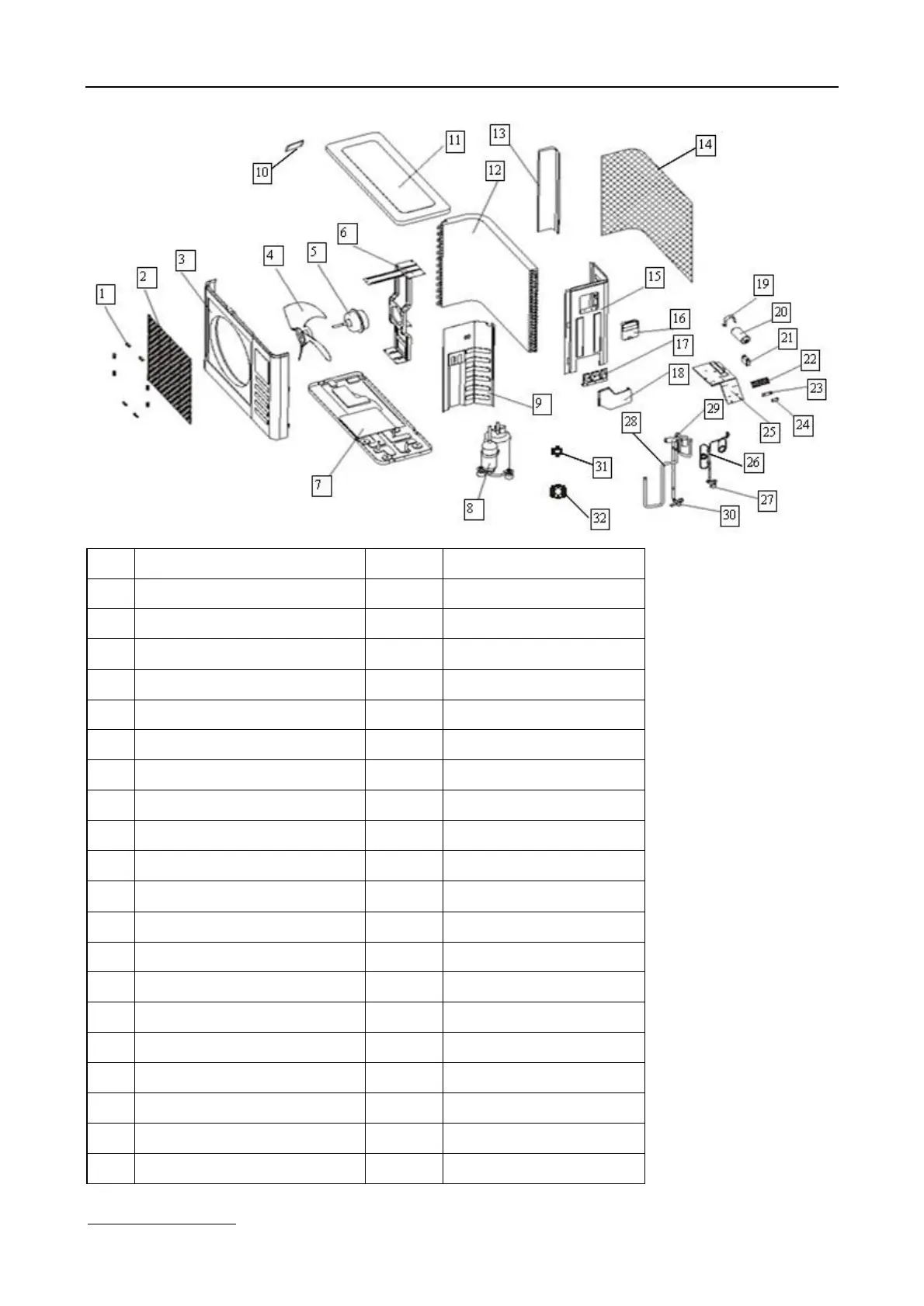

Exploded View Parts for Model GU-S12HR 220--240V,50Hz : Outdoor Unit
No. Part Name Quantity Sale code
1 Clamp for front net 6 10112121801
2 Front net 1 10109121801
3 Front clapboard
1
13012111801
4 Propeller fan 1 10112121803
5 Fan motor 1 10112111801
6 Holder for fan motor 1 50312121801
7 Chassis 1 11612121801
8 Compressor 1 10112121821
9 Separating board 1 10116113813
10 Small Handle 1 10830121811
11 Cover 1 13012111805
12 Condenser 1 11612121803
13 Installation board，left 1 13012111803
14 Rear net 1 13012111806
15 Right clapboard 1 13012111808
16 Big handle 1 10112121808
17 Installation plate for valves 1 10118113805
18 Water collector 1 10118121832
19 Capacitor clamp 1 10112121814
20 Compressor capacitor 1 30324313020
