www.generalclimate.com 51 Wall-Mounted Split Type
21 Fan motor capacitor 1 10112121815
22 Wire joint 1 10109121823
23 Washer for wire joint 1 10112121817
24 Clamp for wiring 1 10112121816
25 Installation board for E-parts 1 15009111801
26 High Pressure Valve Ass'y 1 13012121801
27 Liquid pipe valve 1 10118121830
28 Low pressure Valve Ass'y 1 13012121802
29 4-ways valve 1 10312121852
30 Low-pressure Valve 1 10312121858
31 Copper nut, TLM-A01 1 10909121012
32 Copper nut, TLM-B02 1 10912121019

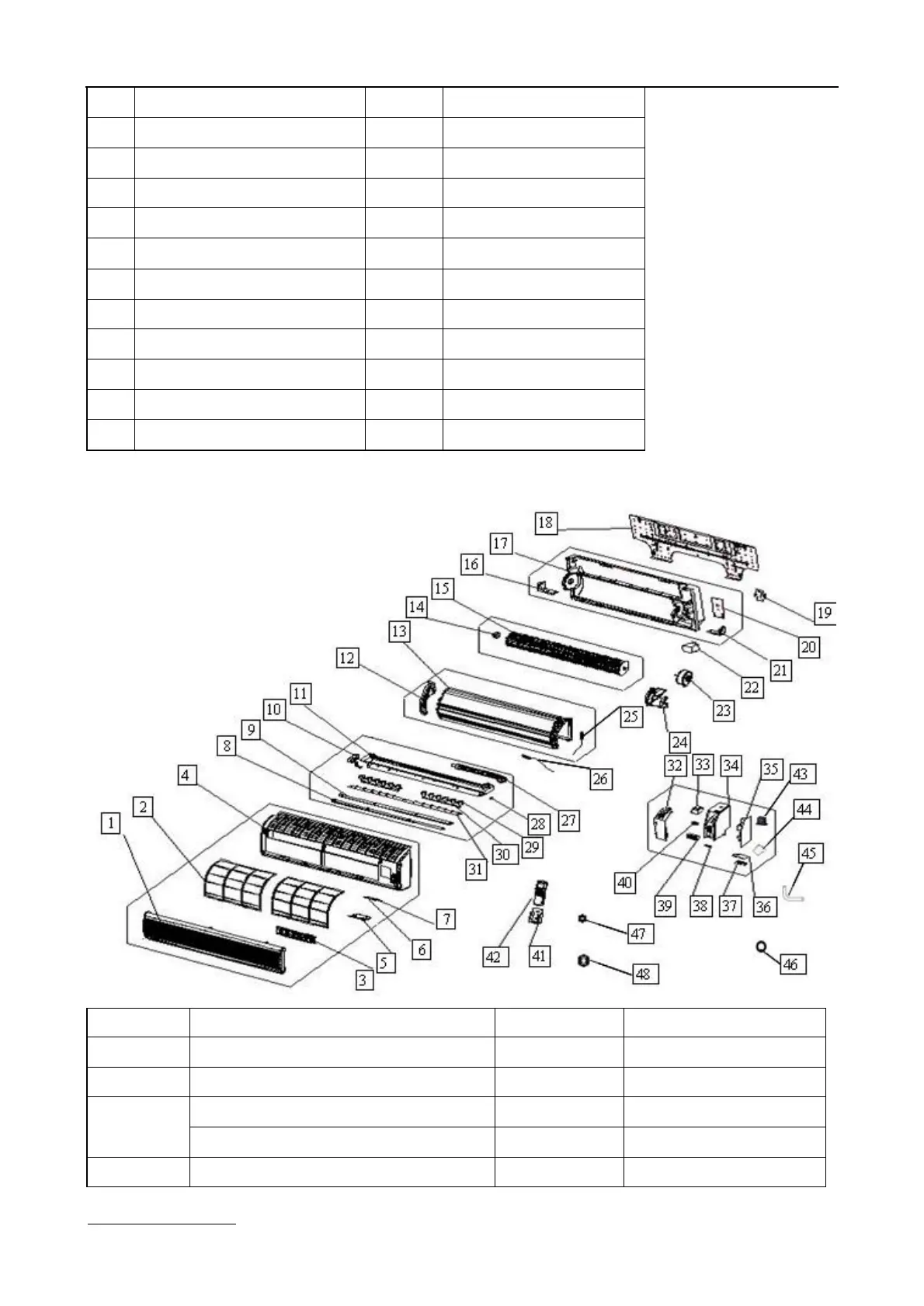

Exploded View Parts for Model GC-S18HR 220-240V~,50Hz : Indoor Unit
No. Part Name Quantity Sale code
1 Front panel 1 10318121201
2 Air filter 2 10318121202
Air cleaner
1
10109121226
3
Air cleaner holder 1 10109121225
4 Panel frame 1 10318121203
