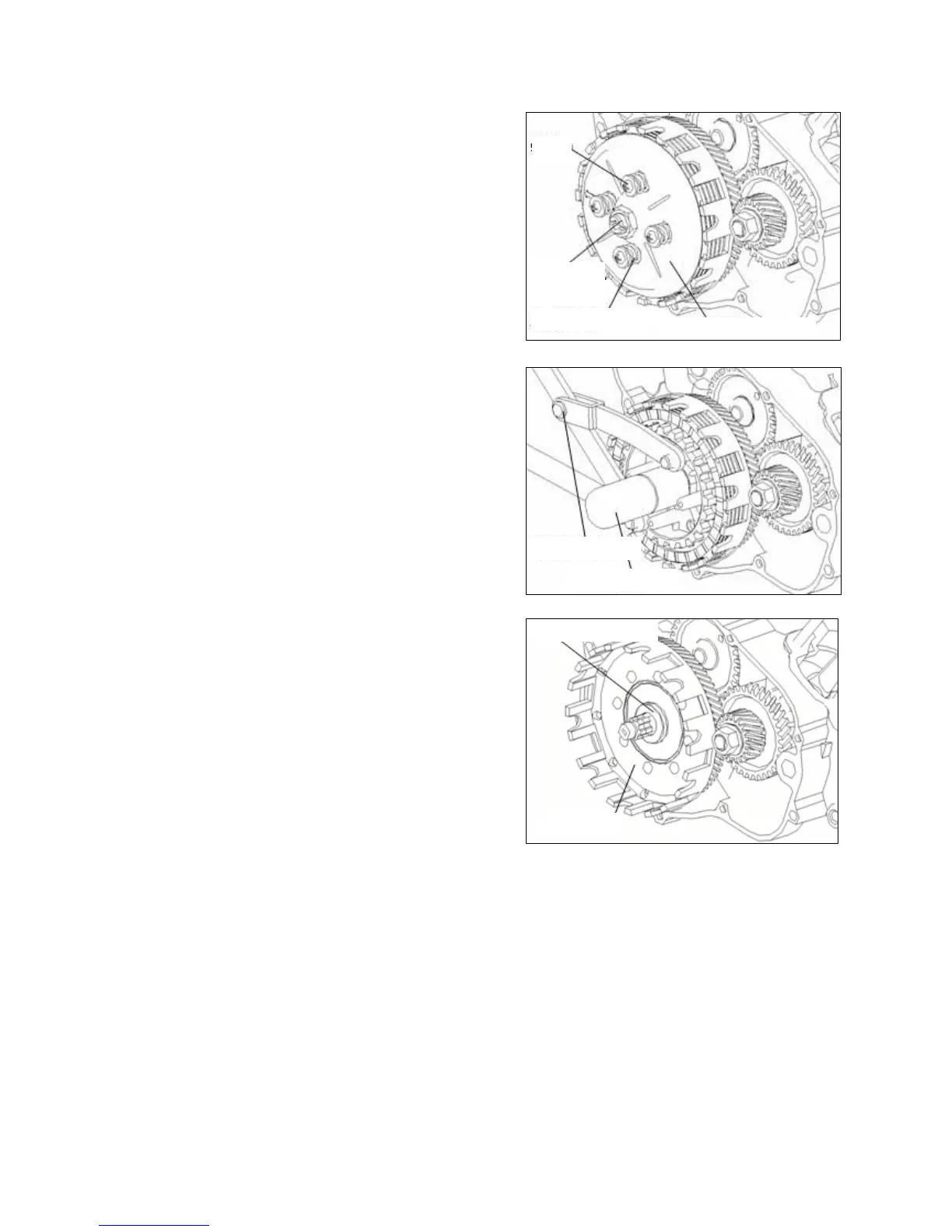

Unscrew the four bolts，and unload the pressure spring,
clutch pressure plate.
Unload the adjustment bolt and clamp nut on the press
plate.
Remove the gasket lock by unscrewing the locknut with a
special tool.
Remove the outward release lever of the clutch.
Unload the wearing plate set（ centre, wearing plate set and
iron friction plate ）. See the dismantling diagram for
parts.
Unload the internal gear gasket.
Unload the housing set.
Unload the dish gasket and flat gasket.
Assembly of clutch is conducted in the reverse order of disassembly.
bolt
adjustment
bolt/ bolt
p
ressure spring
clutch pressure plate
multiple use fixer
box spanner
internal gear gasket
housing set
