8 Bulbs/ switch/instrument
Preparation data -------------------------------8.1 Instrument-----------------8.6
Fault diagnosis --------------------------------8.2 Main switch --------------8.7
Replace the head light bulb -----------------8.3 Horn------------------------8.8
Replace bulb of the front turning light-----8.4 Handle switch ------------8.9
Replace the bulb of the taillight / licence light / rear turning light ----------8.5
8.1 Preparation data
Matters needing attention in operation
The conduction of switches may be measured after
disassembled from the motorcycle.
8.2 Fault diagnosis
Main switch is pushed to "ON" but the light doesn't work.
•Bad act of the bulb
•Bad act of the switch
•Poor contact of the connector or broken line
8.3 Replace the head light bulb
8.3.1 Disassembly
Disassemble the air guide sleeve.
Disassemble the bolts so that the head light could be
disassembled.
Disassemble the glass sheet on the head light.
Fix the head light and turn the socket clockwise so that the
bulb can be removed.
p

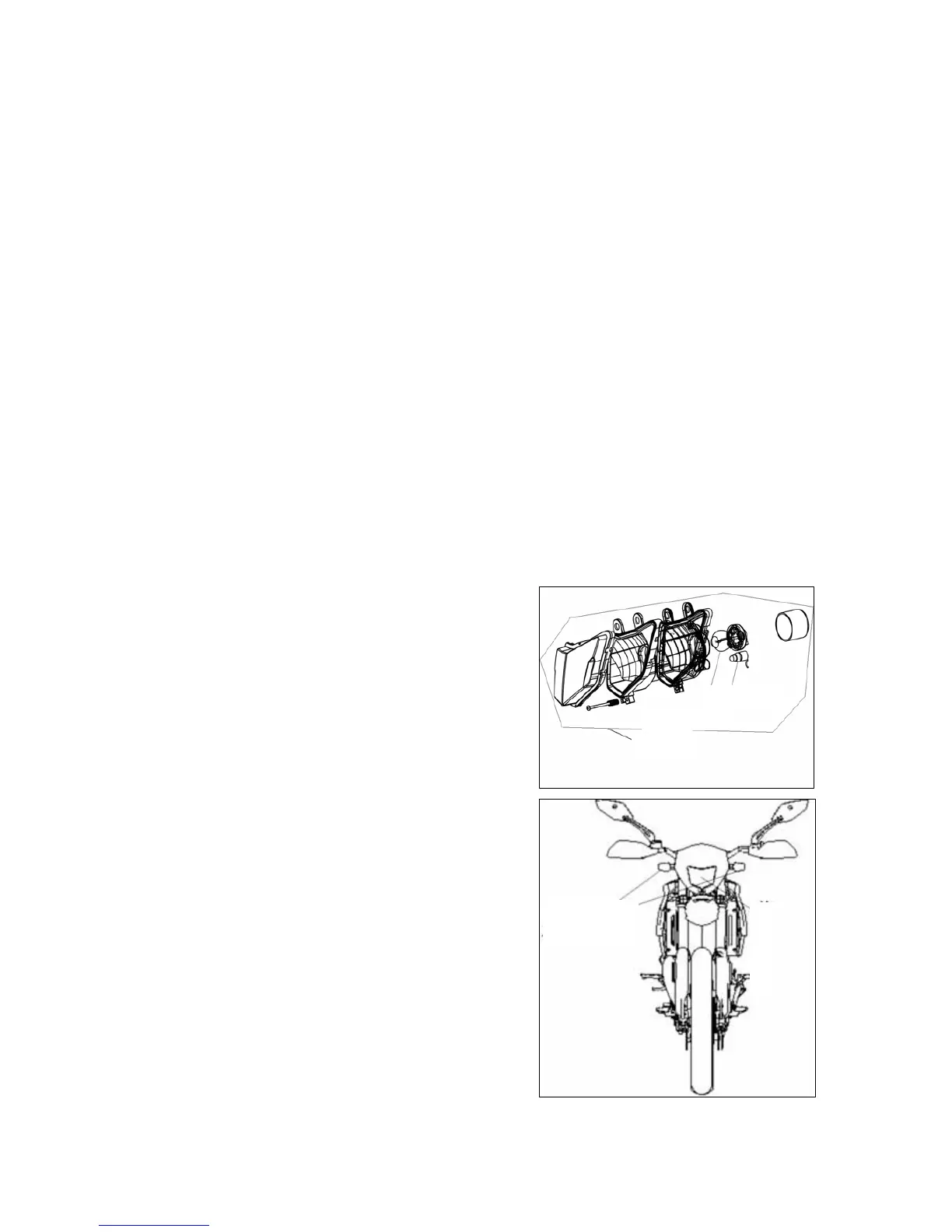

osition bulb
headlamp bulb
head light
left and right
turning light
head light
