Generic Trigger X 50ccm User Manual

- 67 -

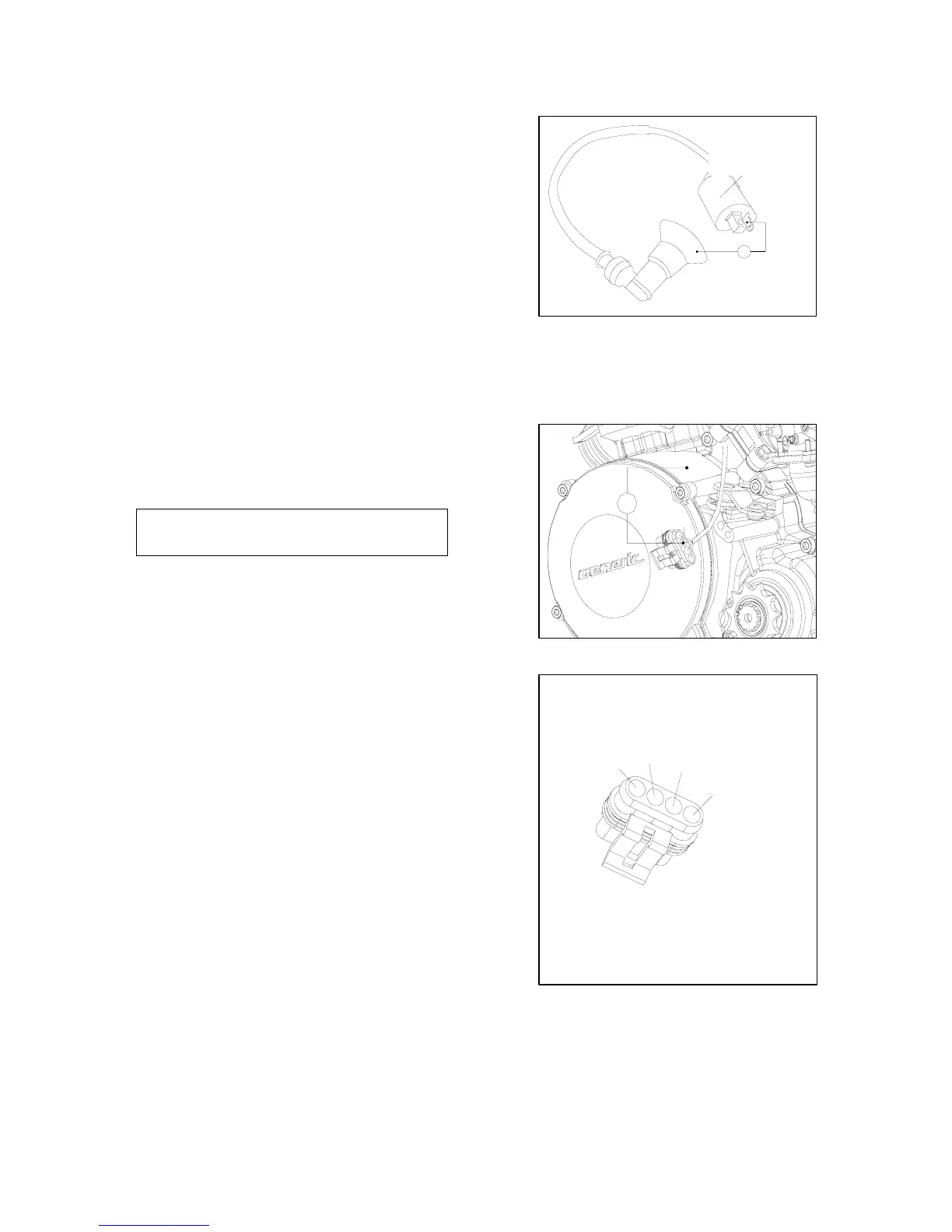

6.5.3 Secondary coil
Measure the resistance value between the wire of spark plug
cover (with the spark plug) and the terminal.
Standard value ：8-11KΩ（20）
If the resistance value is within standard value range, the
primary coil is good.
The resistance value "∞" stands for broken line in the coil.
Remove the spark plug cover and measure the resistance
value between the primary wire of ignition coil and the
negative terminal.
Standard value ：4.5-5.5KΩ（+/-）10％（20）
6.6 Trigger
*Note
Inspection of the trigger can be conducted on
the engine.
Inspection
Disassemble the body guard.
Disassemble the lead connector of the trigger.
Measure the resistance value between the blue/white
terminal at the engine side and the body ground.
Standard value ：100-200Ω（20）
If the measured value exceeds the standard value, replace the
alternator.
点火线图
Ω
Ω
蓝\白
ignition line figure
磁电机接口
白
蓝/白
灰
黑
护套 DJ7041-1.5-21
端子 DJ624-1.8A
防水栓 MFD006-4
magnetor connector
black
brown
blue/white
white
sleeve
termina
waterproof bolt
