- 59 -
Standard value ：0.6-1Ω（20）
If the measured value exceeds the standard value, replace
the alternator coil.
5.7 Illuminating coil of alternator
*Note
Inspection of the illuminating coil of
alternator can be conducted on the engine.
Inspection
Disassemble the 4P joint of alternator.
Measure the resistance value between the white coil of
alternator and the body ground with an avometer.
Standard value ：0.6-1Ω（20）
If the measured value exceeds the standard value, replace
the alternator coil.

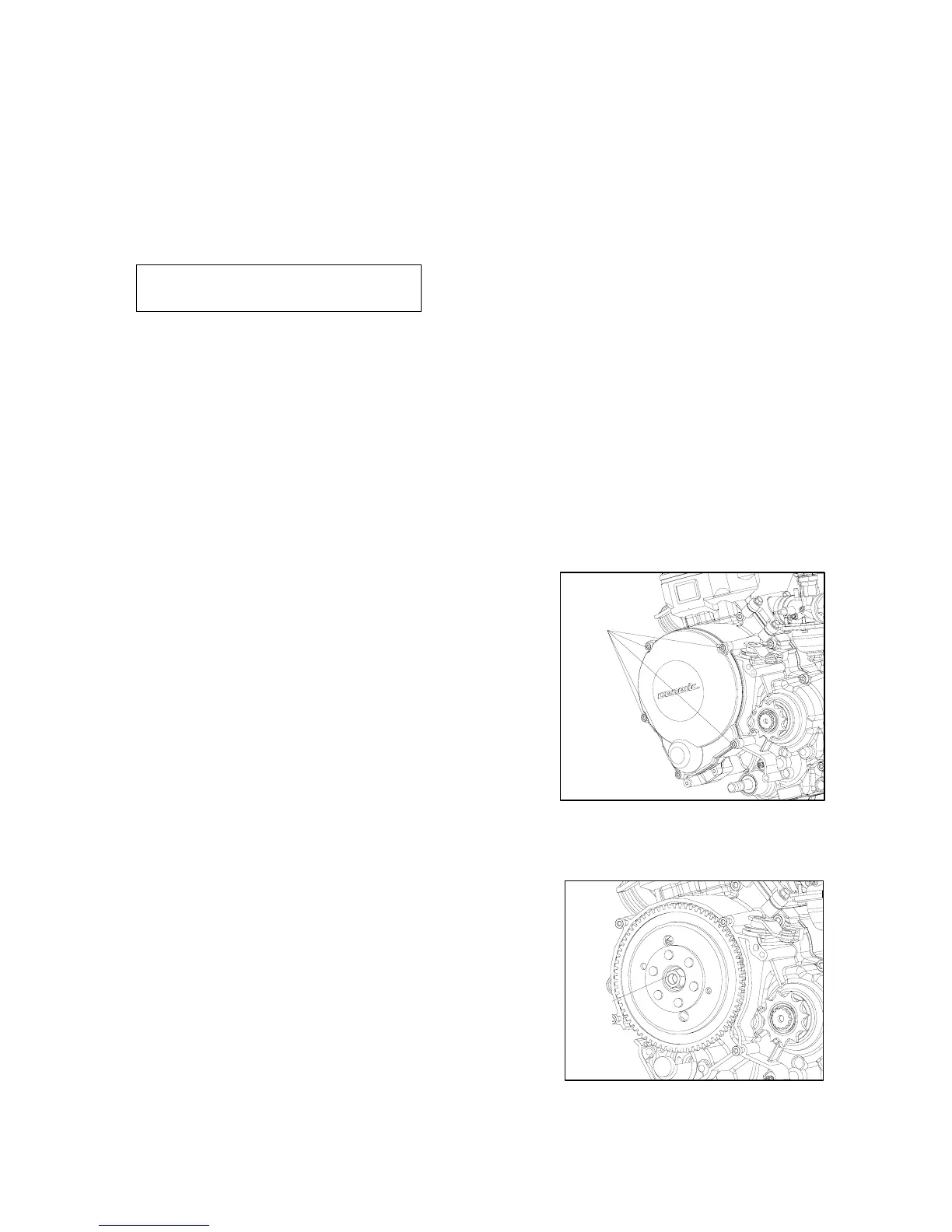

5.8 Disassembly of alternator
5.8.1 Disassembly
Disassemble the fixing bolts.
Unload the left cover.
Fix the flywheel with a multiple use fixing spanner.
Disassemble the flywheel fixing nut.
Remove the flywheel with a flywheel puller.
Disassemble the retaining key.
Disassemble the lead connector of the alternator.
Disassemble the alternator stator.
螺栓
bolt
固定
螺母
Fixing
nut
