3.2.2 Deviation of steering lever
The left and right shock absorbers are not balanced.
The front fork is bent.
The front tire is bent and the tyre deviates.
3.2.3 Front wheel yawing
The tyre is distorted.
The front wheel bearing is loosened.
The tyre is not good.
3.2.4 Front shock absorber too soft
Elasticity fatigue of spring
3.2.5 Strange noise in front shock
absorber
Friction noise in shock absorber guard
Loosening of bolts in rear shock absorber
3.3 Front wheel
3.3.1 Disassembly
Hold the body bottom up so that the front wheel can be
suspended.
Remove bolts and unload the front mudguard and odometer
wire.
Disassemble the front brake wire.
Disassemble the front wheel spindle.
Unload the front wheel.
*Remark：please refer to Page 41 for the disassembly
and assembly diagram of QJ50-23 and QJ50-23A.
3.3.2 Inspection
3.3.2.1 Inspect bending of the wheel
spindle

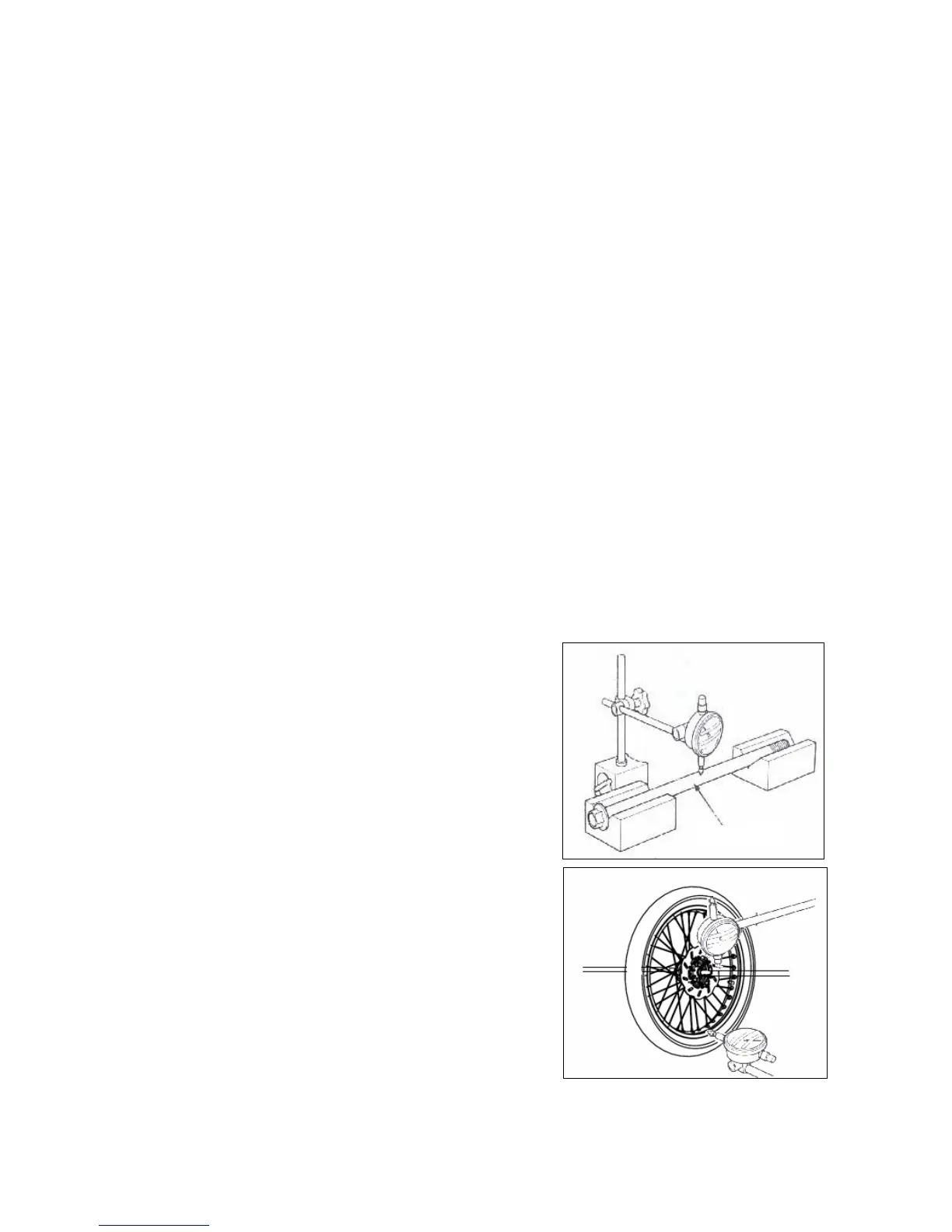

Place the wheel spindle on the V-shape holder and measure
with a micrometer screw caliper.
Allowable limit： replace it when the value exceeds
0.2mm.
3.3.2.2 Inspect yawing of rim
Allowable limit：
Vertical orientation：if the value exceeds 2.0mm, replace
the rim.
Transverse direction ： if the value exceeds 2.0mm,
replace the rim.
wheel s
p
indle
